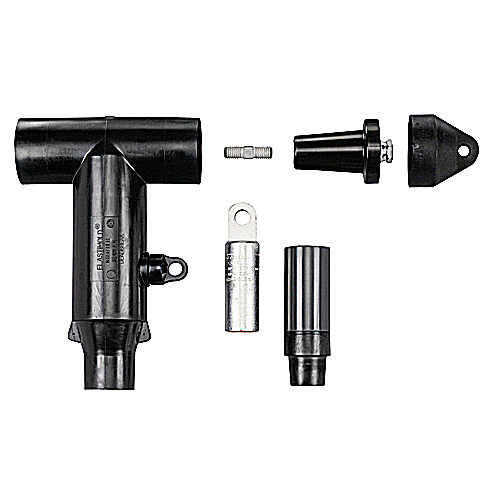

Product image for ABB Elastimold K656LR-K-0300-SG3 15/25kV 600 Amp Series Deadbreak Elbow w/ Test Point (with Insulated Plug, Cap, Stud, Lug & Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 1.090" to 1.310". Conductor Size Compressed/Stranded 350 or Compact/Solid 400 or mm2 Compact 185. Cold Shrinkable Seal w/ Copper Braid & Constant Force Spring Included.
Email

ABB Elastimold K656LR-K-0300-SG3 15/25kV 600 Amp Series Deadbreak Elbow w/ Test Point (with Insulated Plug, Cap, Stud, Lug & Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 1.090" to 1.310". Conductor Size Compressed/Stranded 350 or Compact/Solid 400 or mm2 Compact 185. Cold Shrinkable Seal w/ Copper Braid & Constant Force Spring Included.

Manufacturer: Elastimold | Catalog # K656LRK-0300-SG3 | Cooper Electric Part # 460960
*Call For Price*
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 1.090 inch to 1.310 inch. Conductor Size Compressed/Stranded 350 or Compact/Solid 400 or mm2 Compact 185. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.

Technical Information

Amperage
600 Amp
Applications
15/25kV, 600 Amp Deadbreak Elbow Connection
Material
Rubber
Size
Width 10.36 inch, Length 13.00 inch from Body of T-Body to Center of Bushing.
Temperature Rating
-40 TO 65 degrees C
Type
Deadbreak Elbow Connector with Test Point
Voltage
25 kV

Manufacturer Information

Brand
Elastimold

General Product Info

12-Digit UPC
783786335411
Box Quantity
1
Color
Black
GTiN
00783786335411
Product UPC
801721ZZ657
