Dead Break Elbows

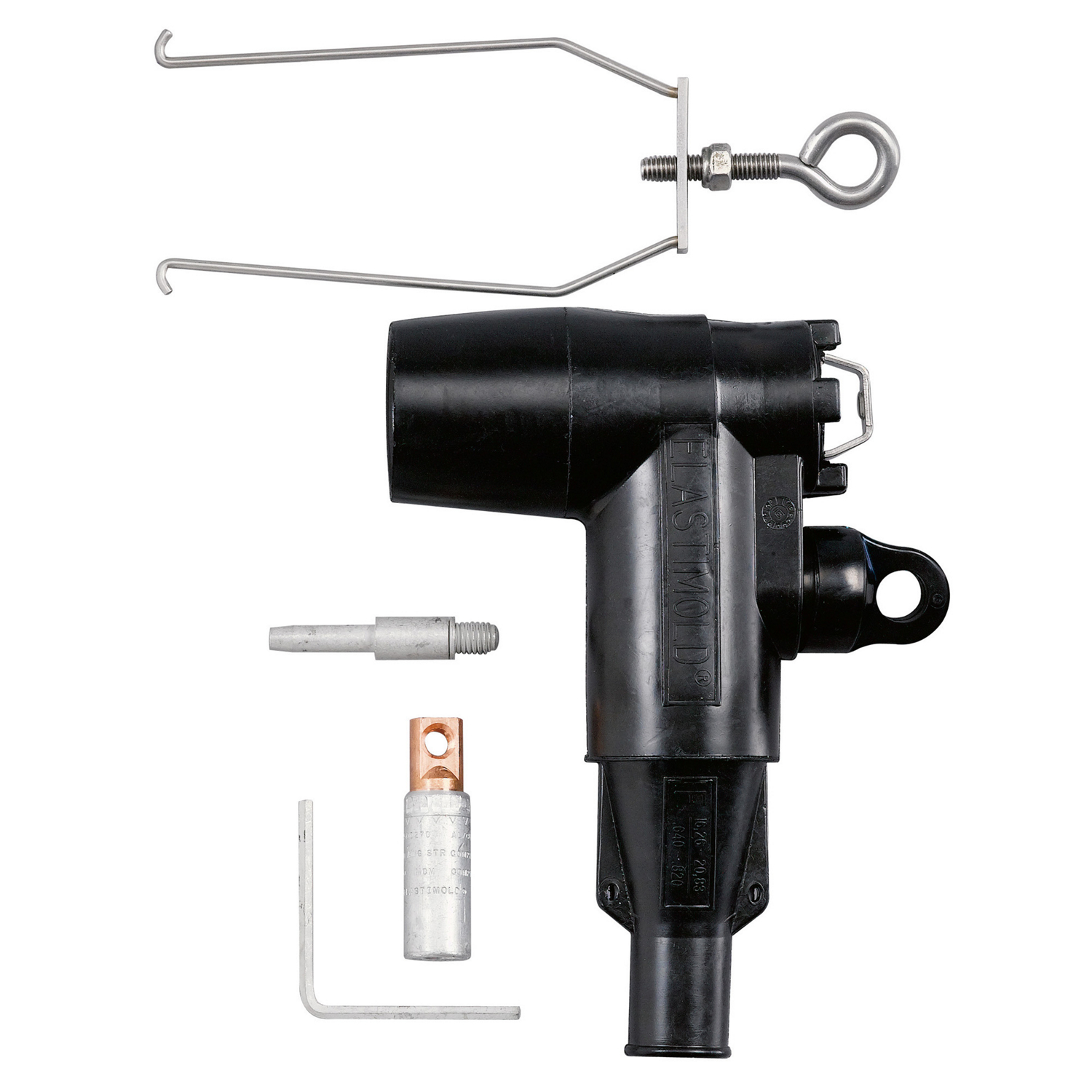

ABB Elastimold 156LR-H-5220

ABB 755L3 3-WAY L-KIT,600A DB,35KV

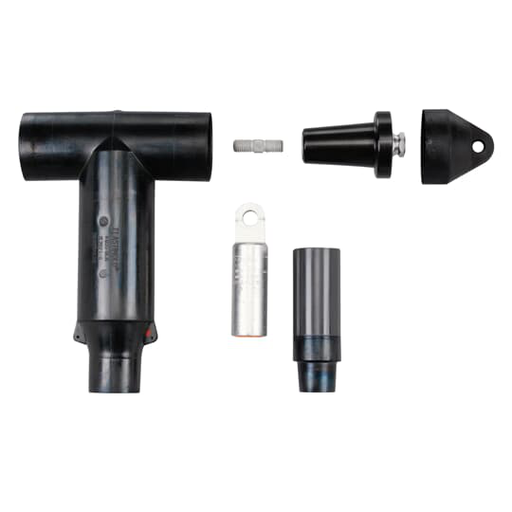

ABB Elastimold K655LR-M0380 600 Amp, 15/25kV, 600 Series Deadbreak, Elbow w/ Insulated Plug, Cap, Stud, Lug & Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 1.370" to 1.630". Conductor Size kcmil Compressed/Stranded 700/750 or Compact/Solid 900.

ABB Elastimold K655LR-J0270 600 Amp, 15/25kV, 600 Series Deadbreak, Elbow w/ Insulated Plug, Cap, Stud, Lug & Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 0.980" to 1.180". Conductor Size AWG Compressed/Stranded 4/0 or kcmil Compact/Solid 250 or mm2 Compact 125.

ABB Elastimold K656LR-G0240 15/25kV 600 Amp Series Deadbreak Elbow w/ Test Point (with Insulated Plug, Cap, Stud, Lug & Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 0.760" to 0.950". Conductor Size Compressed/Stranded 1/0 or Compact/Solid 2/0.

ALR ELB-35-600G10 600A ELBOW CONN

ALR ELB-15/28-610B2 610A ELBOW CONN

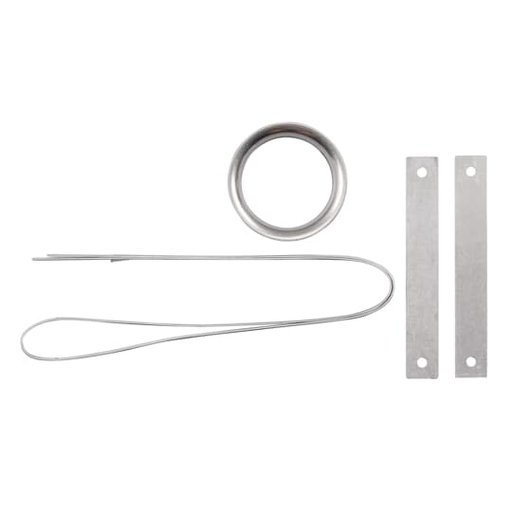

ABB Elastimold 150-TB-5 15/25kV, Deadbreak Elbow Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The ELASTIMOLD® 150TB5 bailing assembly kit consists of two stainless steel bail connectors, a stainless steel collar & a length of stainless steel strap. This kit was designed to secure two ELASTIMOLD® non-loadbreak elbow con

ABB Elastimold K656LR-L0300 15/25kV 600 Amp Series Deadbreak Elbow w/ Test Point (with Insulated Plug, Cap, Stud, Lug & Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 1.180" to 1.465". Conductor Size Compressed/Stranded 350 or Compact/Solid 400 or mm2 Compact 185.

ABB Elastimold K656LR-L0330 15/25kV 600 Amp Series Deadbreak Elbow w/ Test Point (with Insulated Plug, Cap, Stud, Lug & Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 1.180" to 1.465". Conductor Size Compressed/Stranded 500 or Compact/Solid 600 or mm2 Compact 250/300.

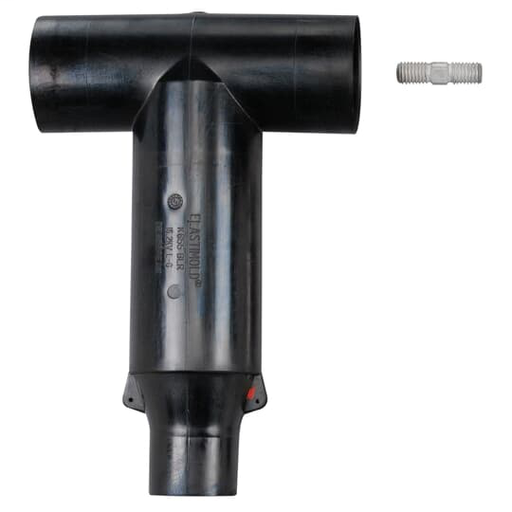

ABB Elastimold K655BLR 15/25kV 600 Series Deadbreak Elbow without Test Point Housing Only (with Stud)

ABB Elastimold K655LR-G0240 600 Amp, 15/25kV, 600 Series Deadbreak, Elbow w/ Insulated Plug, Cap, Stud, Lug & Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 0.760" to 0.950". Conductor Size AWG Compressed Stranded 1/0 or Compacted Solid 2/0.
