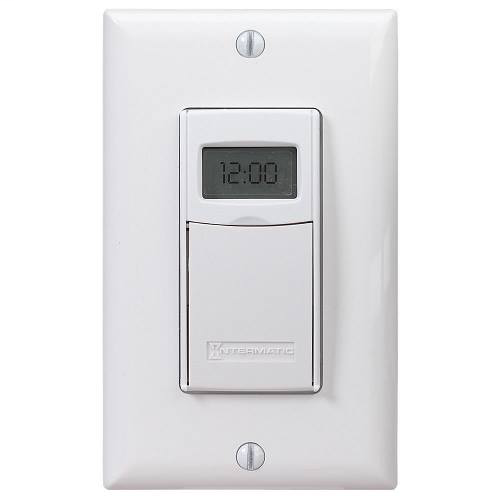

Intermatic ST01 7-Day 120 to 277 VAC 12 to 28 VDC 1-Pole 3-Way White Digital In-Wall Timer
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$81.66/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic, Inc
Mfg Catalog # ST01
Cooper Electric Part # 684676

Features & Applications

Features

  • Versatile 7-day programmable schedules with up to 40 ON/OFF events
  • Astronomic Clock feature determines dawn and dusk times
  • Automatic Daylight Saving Time (DST) adjustment
  • Random mode varies ON/OFF schedule to provide a "lived-in" appearance
  • Single or 3-way switch compatible installation
  • Incandescent/fluorescent/CFL/LED compatible
  • Isolated switch allows timer to be used with any load type, including AC and DC loads
  • Replaceable CR2 lithium battery provides up to three years of operation
  • No neutral wire connection enables easy retrofitting and quicker installation

Applications

  • Entryway Lighting
  • Deck Light Controls
  • Landscape Light Controls
  • Attic Fans
  • Pumps
  • Hallway Lighting
  • Small Commercial Signage and Store Lighting

Specifications

  • Color: White
  • Operation Mode: 24-hours
  • Operation Features: Astronomic, Daylight Saving Time
  • Input Voltages Display: 120-277 VAC, 12-28 VDC, 50/60 Hz
  • Wiring Configurations: 3-Way, Single
  • Neutral Connection Required: No
  • Battery Type: CR2 Lithium
  • Resistive: 20 A, 120-277 VAC, 50/60 Hz
  • Inductive: 4 A, 208-277 VAC, 50/60 Hz 8 A, 120 VAC, 50/60 Hz
  • Incandescent Load Ratings (Multi-Gang): 15 A, 120 VAC, 50/60 Hz 6 A, 208-277 VAC, 50/60 HZ
  • Incandescent Load Ratings (Single-Gang): 15 A, 120 VAC, 50/60 Hz 6 A, 208-277 VAC, 50/60 HZ
  • Motor: 1 HP, 120 VAC, 50/60 Hz 2 HP, 240 VAC, 50/60 Hz
  • Operating Temperature Max (°C): 40
  • Operating Temperature Max (F): 104
  • Operating Temperature Min (°C): 0
  • Operating Temperature Min (F): 32
  • Product Weight (kg): 0.16
  • Product Weight (lbs): 0.352
  • Product Height (in): 4.125
  • Product Height (mm): 104.8
  • Product Width (in): 1.75
  • Product Width (mm): 44.5
  • Product Depth (in): 1.8125
  • Product Depth (mm): 46
  • Warranty: 1-year limited

Documents & Downloads

Product Rating


Overview

UPC 07827512756
Product Description Highly versatile Heavy-Duty Timers are ideal for any application that requires a simple or complex ON/OFF schedule, regardless of load. No neutral connection is required.
GTiN 00078275127562
Warranty Length 1 yr
Width 1.75 in
Color White
Operating Temperature 122 degrees F
Type Heavy Duty, 1-Pole
Material Thermoplastic
Applications HVACR
Mounting Type Wall Mount
Depth 1.8125 in
Height 4.125 in
Weight 0.352 lb
Standard HVACR,Title CA 20 Listed,CCSAus Certified
Connection Type Wire Lead
Input Voltage 12-28 V
Temperature Rating 32 - 122 F
Family Brand Name Intermatic
TC Connection Wire Lead
Contact Configuration SP/3 Way
Max Operating Temperature 104 degrees F
Min Operating Temperature 32 degrees F
Contact Rating 8.3 A at 120 VAC (Tungsten-Incandescent), 15 A at 120 VAC (Resistive-Heater), 8 A at 120 VAC (Ballast-Magnetic), 2000 W
Number of Poles 1 Pole
Action SP/3 Way
