Arlington 717DB Direct Burial Ground Clamp
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$606.44/c (100 ea)
In Stock | 463 available at 6 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arlington
Mfg Catalog # 717DB
Cooper Electric Part # 268311

Specifications

Basic Information

  • UPC: 018997125149
  • Unit Packaging: 25pcs
  • Standard Packaging: 250pcs
  • Listing: cULus

Physical Information

  • Weight: 1.095 lbs/each
  • Height: 1.500"
  • Width: 2.230"
  • Color: Bronze
  • Material(s): Bronze, Steel

Technical Information

  • Maximum: 1.500
  • Minimum: 0.275
  • Pipe Size: 3/8" to 1"
  • Wire Range: 10-2

Overview

UPC 01899712514

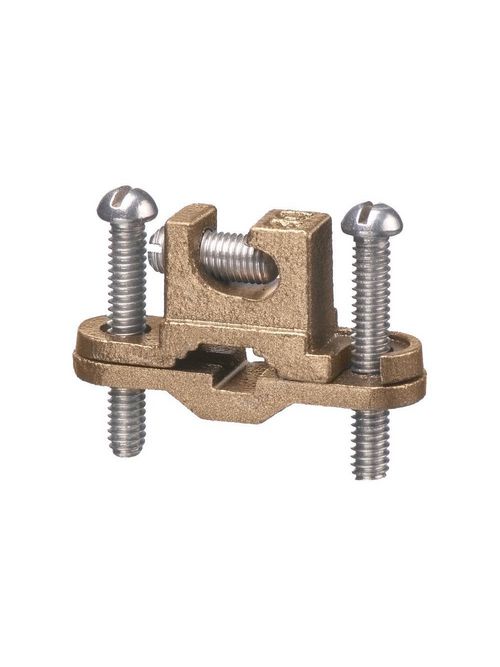

Product Description Solid Bronze with stainless steel screws, bare wire ground clamp with lay-in lug. pipe size - 3/8" to 1", Wire Size - #10 to #2. Approved for direct burial on rebar pipe, tubing and rod.
GTiN 00018997125149
Length 1.5 in
Width 2.230 in
Size L(1.500) x W(2.230) x H(0.662) IN
Color Bronze
Type Bare Wire
Material Solid Bronze with Stainless Steel Screws
Conductor Size 10-2 AWG
Applications For Cable to 3/8 - 1 in Pipe/Rod Connection, Direct Burial on Rebar, Pipe, Tubing and Rod
Height 1.500 in
Weight 1.095 lb
Connection Type (1) Cable Parallel to Pipe
Pkg Qty 250
Family Brand Name Arlington
Conductor Material Bronze, Steel
Blade Dimensions 2.23 in W x 1-1/2 in H, 0.275 - 1-1/2 in Maximum Opening
