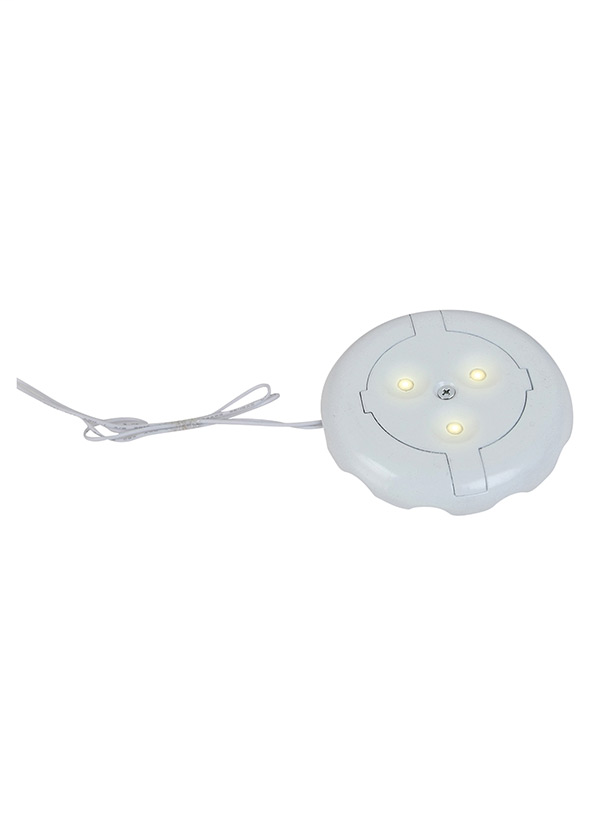

Manufacturer Ambiance Lighting Systems / Seagull
Mfg Catalog # 98859SW-15
Cooper Electric Part # 837610


  • White Finish
  • 170 lumens, 4 watts, 42 lumens per watt
  • Includes 36" lead wire for connection to additional LED disks, optional mounting hub or Ambiance Lx system via fused plug
  • The look, feel and performance of halogen/xenon pucks while reducing energy and operating cost by up to 80%
  • Delivers light output of 170 lumens using only 4 watts for efficacy of 42 lumens per watt, 12VAC
  • Increase light output up to 240 lumens per disk light by powering with 12V DC power supply
  • Contains 3 integrated multi-LED Nichia LED chip packages
  • Long 40,000 hours life - last 20X's longer than halogen for mainteance free operation
  • 12VAC/12VDC
  • Dimmable with wide range on incandescent and electronic low voltage dimmers on 12V electronic and magnetic transformers
  • Configurable and linkable for easier multiple unit installations. Daisy chain up to 6 disks from one to another or hub and spoke mount using optional mounting hub
  • Color accurate illumination 85CRI, 2700K CCT
  • Low profile, aluminum housing for cooler operation and maximum LED life
  • Available in 3 painted finishes; white, black, bronze and (plated) tinted aluminum
  • Surface or recessed mounting
  • Can be connected to and dimmed using 12VAC Ambiance Lx linear cable lighting system with optional fused plug 9488-12/15
  • Supplied with 36'' of wire


  • Dimensions: D: 3'' H: 5/8''
  • Volts: 12
  • Watts: 4
  • Watts Rated: 4
  • Hours Rated: 40000
  • Lumens: 160
  • Efficacy: 40 Lumens/watt
  • Temperature: 2700° K
  • CRI: 85
  • Listing: Safety Listed for Damp Locations
  • Warranty: 5-Year Limited Warranty


UPC 78565221900
Warranty Length 5 yr
Voltage 12 Volt
Wattage 4 Watt
Color Temperature 2700 K
Lumens 160 lm
Family Brand Name Seagull Lighting Products
Lamp Life 40,000 hr
Efficacy 40 Lumens/watt
Color Rendering Index 85
