Allied Moulded Products SB-1 23.0 In Internal Screws Adjustable Outlet Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$388.55/c (100 ea)
In Stock | 236 available at 10 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # SB-1
Cooper Electric Part # 338010

Features

Molded-in splined device holes, adjustable slider plate for additional wall substrate thickness, rectangular exterior for easy cut-in, leveling ribs, offset gauge marks

Specifications

  • Brand: SLIDERBOX
  • Catalog #: SB-1
  • Height: 3-3/4 in.
  • Width: 2-5/16 in.
  • Depth: 3-9/16 in.
  • Volume: 23 cu. in.
  • Wall Box
  • Number of Gangs: Old or New Work
  • Carton Quantity: 48
  • Carton Weight: 14 lb.
  • UPC: 085339945000
  • UNSPSC: 39121308
  • Patents: U.S. Patent No. 7,855,338
  • Country of Origin: United States of America
  • Color: Beige/tan
  • Material: Polyvinyl Chloride
  • Mounting: Internal screws with adjustable slider plate for substrates 1/2" to 1 3/8"

Additional Materials

  • Carbon steel fasteners
  • Polycarbonate adjustable mounting plate

Application

New and old work residential construction 2 HR fire resistive walls and ceilings

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 24 inches

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Distance between boxes must be 4-½ feet from one another
  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Overview

UPC 08533994500

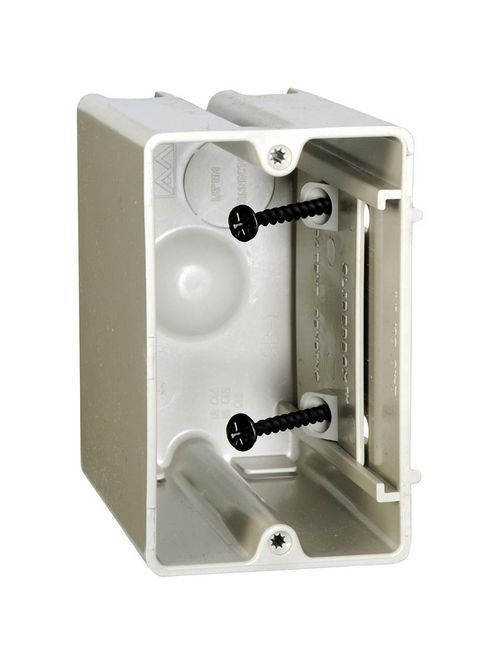

Product Description 23.0 Cu. In. Single gang adjustable electrical box for use with nonmeatllic sheathed cable - Molded-in splined device holes, adjustable slider plate for additional wall substrate thickness, rectangular exterior for easy cut-in, leveling ribs, offset gauge marks - New and old work residential construction 2 HR fire resistive walls and ceilings - PVC - Thermoplastic - Size: D=3 9/16", W=2 5/16", H=3 3/4" - Mount with Internal screws with adjustable slider plate for substrates 1/2" to 1 3/8"
GTiN 00085339945000
Width 2-5/16 in
Size D=3 9/16", W=2 5/16", H=3 3/4"
Color Beige,Tan
Type Single Gang Adjustable Electrical Box For Use With Nonmetallic Sheathed Cable
Insulation Type Nonconductive Nonmetallic
Material PVC - Thermoplastic
Applications New and old work residential construction 2 HR fire resistive walls and ceilings
Mounting Type Internal Screws With Adjustable Slider Plate For Substrates 1/2" To 1 3/8"
Depth 3 in
Height 3 in
Standard UL 514 C
Family Brand Name Allied Moulded
Construction Injection Molded
Cable Entry Knockouts
Sub Brand SLIDERBOX
