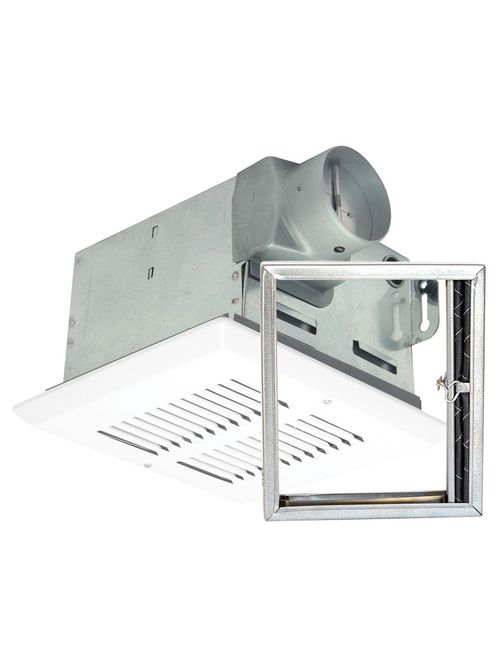

Air King FRAK110 4 Inch 110 CFM 2 Sones White Metal Grill Fire Rated Exhaust Fan
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$213.11/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Air King / Lasko Products
Mfg Catalog # FRAK110
Cooper Electric Part # 1092836

Features

  • UL263 and UL555C classified for Wood Frame Construction
  • Easily installs using the included adjustable hanging brackets.
  • Three part system that includes a Housing, Motor/Blade/Grill and Damper.
  • UL listed for installation over a tub or shower on a GFCI circuit.
  • 4” metal duct collar with backdraft damper.
  • Side access panel allows you to wire the fan from inside or outside the housing.
  • Low profile and durable, all metal grill with a painted, white finish.
  • This product meets the Made in America requirements of the American Recovery and Reinvestment Act as a manufactured good.

Specifications

  • UL Listed for the following Wood Frame Construction Truss Designs: L501, L502, L503, L506, L507, L508, L512, L513, L514, L515, L516, L517, L519, L522, L523, L533, L537, L545, L581, L583
  • CFM: 110
  • Sones: 2

Overview

UPC 08316221131
Product Description The Fire Rated Exhaust Fan provides 110 CFM of cost effective and energy efficient ventilation at 2.0 Sones. It is designed to automatically shut off and seal the duct from the rest of the dwelling once the temperature of the air passing through the damper exceeds that of the fusible link. It installs easily using the adjustable hanging brackets and the side access panel allows the fan to be wired without removing the interior components. It features a 4" metal duct collar with damper to protect against back drafts and ensure quiet operation. UL Listed for Wood Frame Construction truss designs: L501, L502, L503, L506, L507, L508, L512, L513, L514, L515, L516, L517, L519, L522, L523, L533, L537, L545, L581 and L583.
GTiN 00083162211316
Family Brand Name Air King
Housing Material 24 Gauge Galvanized Steel
