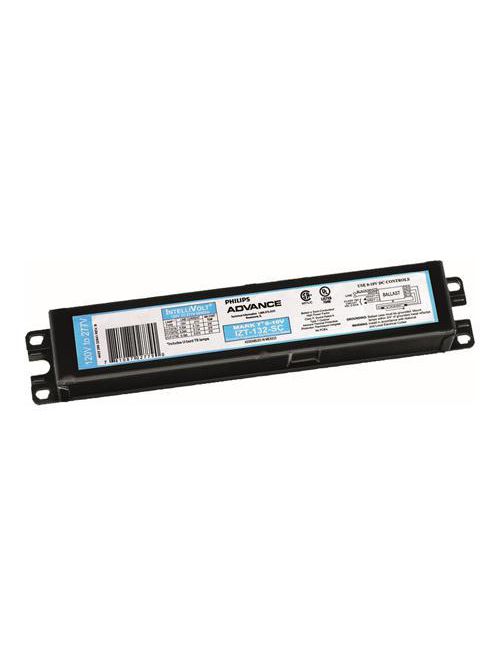

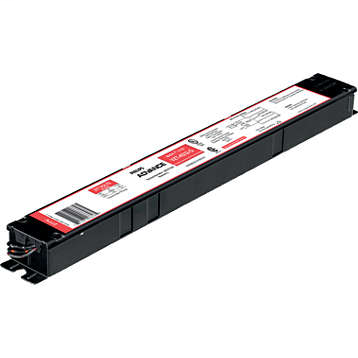

Philips Advance IZT4S3235M 120/277 VAC 50/60 Hz 32 W 4-Lamp Electronic Dimming Ballast
Product image thumbnail 0
Product image thumbnail 1
$169.47/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Advance Transformer
Mfg Catalog # IZT4S3235M
Cooper Electric Part # 246819

idw

Product Data

  • Skus/Case: 12
  • Pieces per Sku: 1
  • Bar code on pack: 781087031926
  • Logistics code(s): 913710214002
  • eop_net_weight_pp: 0.477 kg
  • Full product name: ELE DIMMING BALLAST (4) F32T8 120-277V
  • Short product name: ELE DIMMING BALLAST (4) F32T8 120-277V
  • Bar code on case: 50781087031938
  • Product number: IZT4S3235M

General Characteristics

  • Family Name: Mark 7 0-10V
  • Input Voltage: 120-277 V
  • Ballast Type: Dimmable Fluorescent
  • Lamp Type: F32T8
  • Starting Method: Programmed Start
  • Housing: D
  • Housing Dimensions: 16.7" x 1.18" x 1.0"
  • Number of Lamps: 4 piece
  • Line Frequency: 50/60 Hz
  • Suitable for Outdoor use?: Yes
  • Housing Material: Metal
  • Base Model: IZT4S32

Approval & Application Chars

  • FIDE Certificate: No
  • SASO Certificate: No
  • cUL certificate: No
  • RoHS Compliant: Yes
  • UL Listed: Yes
  • Energy Star: No
  • NEMA Premium: Yes
  • Circle E logo: No
  • CEC Listing: Yes
  • Approbation Marks: UL, CSA, NEMA Premium, RoHS
  • CSA certificate: Yes
  • CSA E: No
  • NOM certificate: Yes
  • CEE Rated: Yes
  • EMC Immunity: FCC Consumer
  • UL Recognized: No

Operating Characteristics

  • Max. Ballast Factor: 0.88 (max) -
  • Power Factor: 0.99
  • Sound Rating: A
  • Lamp Current Crest Factor: 1.7 -
  • Max THD: 10 %
  • Ignition time: 1.5 s
  • Min. Input Watts: 25 (min) W
  • Min. Ballast Factor: 0.05 (min) -
  • Automatic restart: Yes
  • Ballast Efficacy Factor: 0.75 -
  • Max. Input Watts: 118 (max) W

Product Dimensions

  • Height C1: 1.00 in
  • Length A1: 16.70 in
  • Length A2: 16.34 in
  • Width B1: 1.18 in

Wiring Characteristics

  • Wire Length by Color: No wires
  • Wire Striplength: 0.375 mm
  • Max Dist.Ball to Lamp(Through): Yellow & Brown = 4'
  • Allowed Wiring Config(Remote): No
  • Lamp Connection: Series
  • Max Dist. Ball to Lamp(Remote): No Remote
  • Control Wire Gauge: 18AWG
  • Max Dist. Ball to Lamp(Tandem): No Tandem
  • Wire Gauge: 18AWG
  • Allowed Wiring Config(Through): Yes
  • Color input terminals: BLK, WHT, VLT & GRY
  • Color output terminals: RED, YEL, BLU, BLU/WHT & BRN
  • Connector type: Poke-In
  • Allowed Wiring Config(Tandem): No
  • Wire Type: Solid

System Chars On Driver Level

  • Rated Lamp Watts: 32W

Temperature Characteristics

  • T-case maximum: 70 C

Documents

Leaflets

Other Downloads

Overview

UPC 78108703193
Product Description The Mark 7 010V series of dimmable electronic ballasts offer maximum versatility by incorporating separate control leads for use with a wide array of controllers, including occupancy sensors, daylight harvesting controls, and building management systems from more than 40 manufacturers. When paired with linear fluorescent and 4-pin compact fluorescent lamps, these ballasts optimize the benefits of such popular sustainable lighting techniques as daylight harvesting, occupancy sensing, and load shedding to satisfy the need for an affordable, flexible and versatile controllable lighting solution.
GTiN 00781087031933
Length 16.34 in
Width 1.18 in
Height 1.00 in
Wire Size 18 AWG
Wire Type Solid
Frequency 50/60 Hz
Wattage 32 Watt
Family Brand Name Philips Lighting
Lamp Type T8 Fluorescent
Number of Lamps 4
Ballast Type Dimmable Fluorescent
Housing Material Metal
Power Factor 0.99
Lamp Wattage 32 W
Voltage 120-277 Volt
Type Electronic, Controllable, Encapsulated
Input Voltage 120/277 V
Blade Dimensions 424 mm L x 30 mm W x 25 mm H
Thermal Protection Class I
