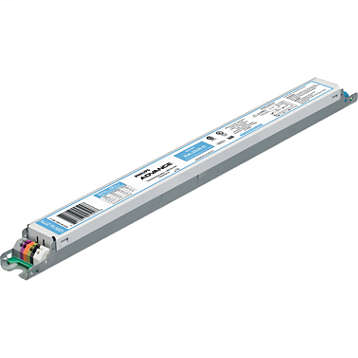

Philips Advance IZT2S54D35M 120 to 277 VAC 50/60 Hz 54 W 2-Lamp Electronic Dimming Ballast
Product image thumbnail 0
Product image thumbnail 1
$179.07/ea
In Stock | 32 available at 3 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Advance Transformer
Mfg Catalog # IZT2S54D35M
Cooper Electric Part # 875431

idw

Product Data

  • Product number: IZT2S54D35M
  • Short product name: ELE DIMMING BALLAST (2) F54T5HO 120-277V
  • Logistics code(s): 913701254102
  • Full product name: ELE DIMMING BALLAST (2) F54T5HO 120-277V
  • eop_pck_cfg: 12
  • Pieces per Sku: 1
  • Bar code on pack: 781087132159
  • eop_net_weight_pp: 0.441 kg
  • Skus/Case: 12
  • Bar code on case: 50781087132154

General Characteristics

  • Number of Lamps: 2 piece
  • Base Model: IZT2S24D
  • Ballast Type: Dimmable Fluorescent
  • Lamp Type: F54T5HO
  • Suitable for Outdoor use?: Yes
  • Line Frequency: 50/60 Hz
  • Family Name: Mark 7 0-10V
  • Input Voltage: 120-277 V
  • Housing: D
  • Starting Method: Programmed Start
  • Housing Material: Metal
  • Housing Dimensions: 16.7" x 1.18" x 1.0"

Approval & Application Chars

  • Energy Star: No
  • NOM certificate: No
  • CEC Listing: Yes
  • NEMA Premium: No
  • RoHS Compliant: Yes
  • UL Listed: Yes
  • Approbation Marks: UL, CSA, RoHS
  • CEE Rated: No
  • CSA certificate: Yes
  • CSA E: No
  • UL Recognized: No
  • FIDE Certificate: No
  • EMC Immunity: FCC Consumer
  • Circle E logo: No
  • SASO Certificate: No
  • cUL certificate: No

Operating Characteristics

  • Lamp Current Crest Factor: 1.7 -
  • Automatic restart: Yes
  • Power Factor: 0.98
  • Ignition time: 1.5 s
  • Min. Ballast Factor: 0.03 (min) -
  • Max. Input Watts: 118 (max) W
  • Max. Ballast Factor: 1.0 (max) -
  • Min. Input Watts: 16 (min) W
  • Ballast Efficacy Factor: 0.85 -
  • Max THD: 10 %
  • Sound Rating: A

Product Dimensions

  • Length A1: 16.70 in
  • Width B1: 1.18 in
  • Length A2: 16.34 in
  • Height C1: 1.00 in

Wiring Characteristics

  • Allowed Wiring Config(Tandem): No
  • Color output terminals: RED, YEL & BLU
  • Color input terminals: BLK, WHT, VLT & GRY
  • Max Dist. Ball to Lamp(Tandem): No Tandem
  • Wire Striplength: 0.375 mm
  • Max Dist.Ball to Lamp(Through): Any = 4'
  • Wire Type: Solid
  • Connector type: Poke-In
  • Lamp Connection: Series
  • Allowed Wiring Config(Remote): No
  • Wire Gauge: 18AWG
  • Max Dist. Ball to Lamp(Remote): No Remote
  • Control Wire Gauge: 18AWG
  • Allowed Wiring Config(Through): Yes
  • Wire Length by Color: No wires

System Chars On Driver Level

  • Rated Lamp Watts: 54W

Temperature Characteristics

  • T-case maximum: 70 C

Documents

Leaflets

Other Downloads

Categories

Overview

UPC 78108713215
Product Description The Mark 7 010V series of dimmable electronic ballasts offer maximum versatility by incorporating separate control leads for use with a wide array of controllers, including occupancy sensors, daylight harvesting controls, and building management systems from more than 40 manufacturers. When paired with linear fluorescent and 4-pin compact fluorescent lamps, these ballasts optimize the benefits of such popular sustainable lighting techniques as daylight harvesting, occupancy sensing, and load shedding to satisfy the need for an affordable, flexible and versatile controllable lighting solution.
GTiN 00781087132159
Length 16.34 in
Width 1.18 in
Applications Lighting Luminaire Component
Height 1.00 in
Weight 1 LB
Wire Size 18 AWG
Wire Type Solid
Frequency 50/60 Hz
Family Brand Name Philips Lighting
Lamp Type F54T5HO
Number of Lamps 2
Ballast Type Dimmable Fluorescent
Housing Material Metal
Power Rating 54 WTT
Start Type PROGRAMMED START
Power Factor 0.98
Ballast Factor 1
Thermal Protection CLASS P
Lamp Wattage 54 W
Sub Brand Mark 7
Voltage 120-277 Volt
Input Voltage 120/277 V
