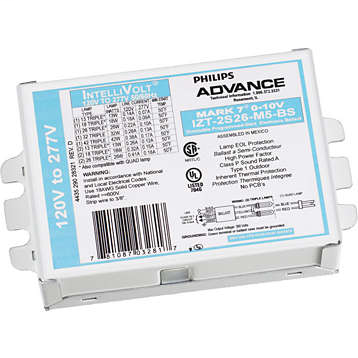

Philips Advance IZT2S26M5LD35M 120/277 VAC 50/60 Hz 26 W 1-Lamp Compact Ballast
Product image thumbnail 0
Product image thumbnail 1
$140.20/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Advance Transformer
Mfg Catalog # IZT2S26M5LD35M
Cooper Electric Part # 111179

idw

Product Data

  • Short product name: ELE DIM BAL (2) 26W CFL (4-PIN) 120-277V
  • Pieces per Sku: 1
  • Skus/Case: 20
  • Product number: IZT2S26M5LD35M
  • Bar code on case: 50781087032850
  • eop_net_weight_pp: 0.295 kg
  • Full product name: ELE DIM BAL (2) 26W CFL (4-PIN) 120-277V
  • Bar code on pack: 781087032848
  • Logistics code(s): 913710213702

General Characteristics

  • Base Model: IZT2S26M5LD
  • Ballast Type: Dimmable Fluorescent
  • Lamp Type: CFQ26W/G24Q
  • Number of Lamps: 1/2 piece
  • Housing: M5
  • Housing Dimensions: 4.98" x 3.0" x 1.18"
  • Input Voltage: 120-277 V
  • Housing Material: Metal
  • Line Frequency: 50/60 Hz
  • Family Name: Mark 7 0-10V
  • Starting Method: Programmed Start
  • Suitable for Outdoor use?: Yes

Approval & Application Chars

  • Energy Star: No
  • CEE Rated: No
  • RoHS Compliant: Yes
  • EMC Immunity: FCC Consumer
  • NOM certificate: Yes
  • UL Listed: Yes
  • Circle E logo: No
  • Approbation Marks: UL, CSA, RoHS
  • CEC Listing: Yes
  • CSA E: No
  • FIDE Certificate: No
  • CSA certificate: Yes
  • UL Recognized: No
  • NEMA Premium: No
  • SASO Certificate: No
  • cUL certificate: No

Operating Characteristics

  • Max. Input Watts: 55 (max) W
  • Lamp Current Crest Factor: 1.6 -
  • Ignition time: 1.5 s
  • Ballast Efficacy Factor: 1.82 -
  • Max THD: 10 %
  • Sound Rating: A
  • Automatic restart: Yes
  • Min. Ballast Factor: 0.03 (min) -
  • Min. Input Watts: 13 (min) W
  • Max. Ballast Factor: 1 (max) -
  • Power Factor: 0.99

Product Dimensions

  • Height C1: 1.29 in
  • Width B1: 3.00 in
  • Length A2: 4.20 in
  • Length A1: 4.55 in

Wiring Characteristics

  • Control Wire Gauge: 18AWG
  • Max Dist. Ball to Lamp(Remote): No Remote
  • Color input terminals: BLK, WHT, VLT & GRY
  • Lamp Connection: Series
  • Allowed Wiring Config(Tandem): No
  • Max Dist. Ball to Lamp(Tandem): No Tandem
  • Color output terminals: RED, YEL & BLU
  • Wire Type: Solid
  • Max Dist.Ball to Lamp(Through): No Through
  • Allowed Wiring Config(Through): No
  • Wire Gauge: 18AWG
  • Allowed Wiring Config(Remote): No
  • Connector type: Poke-In
  • Wire Striplength: 0.375 mm
  • Wire Length by Color: No wires

System Chars On Driver Level

  • Rated Lamp Watts: 26W

Temperature Characteristics

  • T-case maximum: 70 C

Documents

Leaflets

Other Downloads

Overview

UPC 78108703285
Product Description The Mark 7 010V series of dimmable electronic ballasts offer maximum versatility by incorporating separate control leads for use with a wide array of controllers, including occupancy sensors, daylight harvesting controls, and building management systems from more than 40 manufacturers. When paired with linear fluorescent and 4-pin compact fluorescent lamps, these ballasts optimize the benefits of such popular sustainable lighting techniques as daylight harvesting, occupancy sensing, and load shedding to satisfy the need for an affordable, flexible and versatile controllable lighting solution.
GTiN 00781087032855
Length 4.20 in
Width 3.00 in
Height 1.29 in
Wire Size 18 AWG
Wire Type Solid
Frequency 50/60 Hz
Wattage 26 Watt
Family Brand Name Philips Lighting
Lamp Type CFQ26W/G24Q
Number of Lamps 2
Ballast Type Dimmable Fluorescent
Housing Material Metal
Power Factor 0.99
Lamp Wattage 26 W
Voltage 120-277 Volt
Input Voltage 120/277 V
