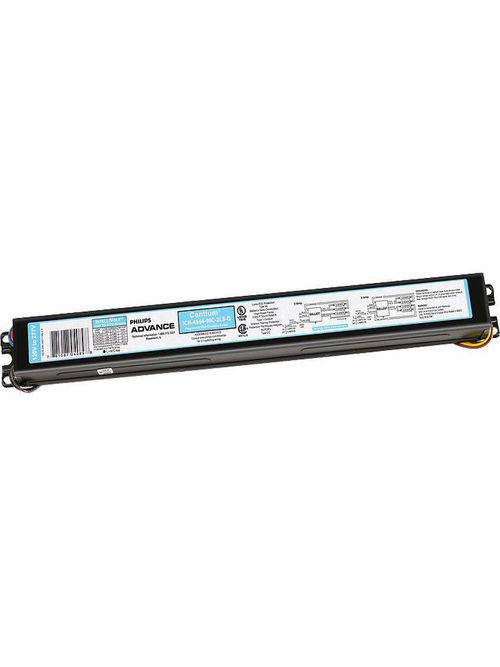

Philips Advance ICN4S5490C2LSG35M 120/277 Volt 50/60 Hz 54 W 4-Lamp T8 Electronic Ballast

idw

Product Data

• Skus/Case: 6
• Pieces per Sku: 1
• Product number: ICN4S5490C2LSG35M
• Full product name: ELE BALLAST (4) F54T5HO 120-277V
• Logistics code(s): 913710268502
• Short product name: ELE BALLAST (4) F54T5HO 120-277V
• Bar code on case: 50781087047830
• Bar code on pack: 781087047866
• eop_net_weight_pp: 1.203 kg

General Characteristics

• Number of Lamps: 3/4 piece
• Ballast Type: Electronic Fluorescent
• Lamp Type: F54T5/HO
• Line Frequency: 50/60 Hz
• Base Model: ICN4S5490C2LSG
• Housing Dimensions: 16.7" x 1.7" x 1.18"
• Housing: G
• Starting Method: Programmed Start
• Housing Material: Metal
• Input Voltage: 120-277 V
• Family Name: Centium
• Suitable for Outdoor use?: Yes

Approval & Application Chars

• CSA E: No
• Circle E logo: No
• NOM certificate: Yes
• DOE: No
• RoHS Compliant: Yes
• CEE Rated: No
• CSA certificate: Yes
• Energy Star: No
• UL Recognized: No
• NEMA Premium: No
• Approbation Marks: UL, CSA, RoHS
• EMC Immunity: FCC Non-Consumer
• SASO Certificate: No
• UL Listed: Yes
• cUL certificate: No
• FIDE Certificate: No
• CEC Listing: Yes

Operating Characteristics

• Automatic restart: Yes
• Lamp Current Crest Factor: 1.7 -
• Ballast Efficacy Factor: 0.42 -
• Ballast factor: 1 -
• Power Factor: 0.98
• Input Power Gear: 240-234 W
• Ignition time: 1.5 s
• Max THD: 10 %
• Sound Rating: A

Product Dimensions

• Width B1: 1.70 in
• Length A1: 16.70 in
• Length A2: 16.34 in
• Height C1: 1.18 in

Wiring Characteristics

• Allowed Wiring Config(Through): Yes
• Max Dist.Ball to Lamp(Through): Blue & Brown = 20'
• Color input terminals: No terminals
• Max Dist. Ball to Lamp(Tandem): Blue & Brown = 20'
• Allowed Wiring Config(Tandem): Yes
• Wire Type: Solid
• Max Dist. Ball to Lamp(Remote): 20'
• Wire Length by Color: See data sheet
• Allowed Wiring Config(Remote): Yes
• Lamp Connection: Series
• Wire Gauge: 18AWG
• Wire Striplength: 0.50/0.375 mm
• Color output terminals: No terminals
• Connector type: No connector

System Chars On Driver Level

• Rated Lamp Watts: 54W

Temperature Characteristics

• T-case maximum: 90 C
