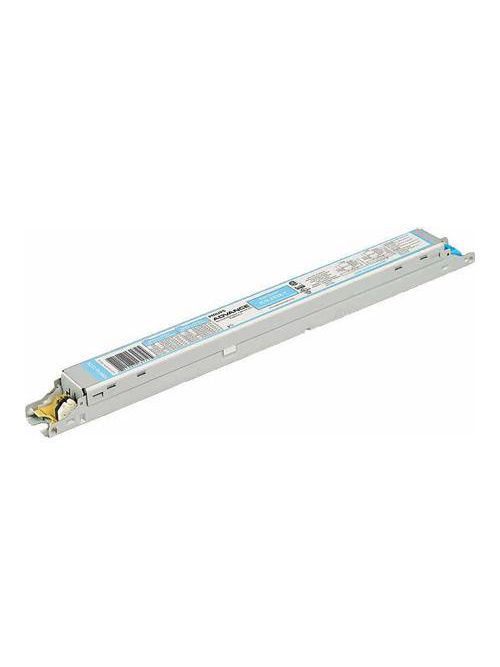

Advance ICN2S24T35I 120 to 277 VAC 50/60 Hz 24 W 2-Lamp T5 Electronic Ballast
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$70.44/ea
In Stock | 9 available at 3 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Advance Transformer
Mfg Catalog # ICN2S24T35I
Cooper Electric Part # 897410

idw

Product Data

  • Skus/Case: 10
  • Short product name: ELE BALLAST (2) F24T5/HO 120-277V
  • Bar code on pack: 781087131695
  • eop_pck_cfg: 10
  • eop_net_weight_pp: 0.441 kg
  • Pieces per Sku: 1
  • Product number: ICN2S24T35I
  • Logistics code(s): 913701253001
  • Full product name: ELE BALLAST (2) F24T5/HO 120-277V
  • Bar code on case: 30781087131696

General Characteristics

  • Lamp Type: F24T5/HO
  • Line Frequency: 50/60 Hz
  • Input Voltage: 120-277 V
  • Number of Lamps: 1/2 piece
  • Housing Material: Metal
  • Starting Method: Programmed Start
  • Ballast Type: Electronic Fluorescent
  • Housing: T
  • Housing Dimensions: 14.17" x 1.18" x 1.06"
  • Base Model: ICN2S24T
  • Family Name: Centium
  • Suitable for Outdoor use?: Yes

Approval & Application Chars

  • FIDE Certificate: No
  • UL Recognized: No
  • Circle E logo: No
  • Energy Star: No
  • NEMA Premium: No
  • CEE Rated: No
  • UL Listed: Yes
  • EMC Immunity: FCC Non-Consumer
  • CSA E: No
  • CSA certificate: Yes
  • CEC Listing: No
  • RoHS Compliant: Yes
  • DOE: No
  • cUL certificate: No
  • SASO Certificate: No
  • Approbation Marks: UL, CSA, RoHS
  • NOM certificate: No

Operating Characteristics

  • Ballast Efficacy Factor: 1.92 -
  • Lamp Current Crest Factor: 1.7 -
  • Automatic restart: Yes
  • Power Factor: 0.98
  • Input Power Gear: 52-52 W
  • Ballast factor: 1 -
  • Max THD: 10 %
  • Ignition time: 1.5 s
  • Sound Rating: A

Product Dimensions

  • Height C1: 1.06 in
  • Width B1: 1.18 in
  • Length A2: 13.78 in
  • Length A1: 14.17 in

Wiring Characteristics

  • Connector type: Poke-In
  • Max Dist.Ball to Lamp(Through): Blue = 20'
  • Allowed Wiring Config(Remote): Yes
  • Color input terminals: BLK & WHT
  • Wire Gauge: 18AWG
  • Wire Length by Color: No wires
  • Lamp Connection: Series
  • Max Dist. Ball to Lamp(Tandem): Blue = 20'
  • Color output terminals: RED, YEL & BLU
  • Max Dist. Ball to Lamp(Remote): 20'
  • Allowed Wiring Config(Tandem): Yes
  • Allowed Wiring Config(Through): Yes
  • Wire Striplength: 0.375 mm
  • Wire Type: Solid

System Chars On Driver Level

  • Rated Lamp Watts: 24W

Temperature Characteristics

  • T-case maximum: 70 C

Documents

Other Downloads

Leaflets

Overview

UPC 78108713169
Product Description No matter what the conditions require, operating at a variety of line voltages between 120V to 480V, whether located in high ambient temperature environments (requiring a 90 C rating) or not, our family of Philips Advance Centium ballasts are ideal for a wide variety of applications.
GTiN 00781087131695
Length 13.78 in
Width 1.18 in
Applications Lighting Luminaire Component
Height 1.06 in
Weight 1 LB
Wire Size 18 AWG
Wire Type Solid
Frequency 50/60 Hz
Family Brand Name Advance
Lamp Type F24T5/HO
Number of Lamps 2
Ballast Type Electronic Fluorescent
Housing Material Metal
Power Rating 24 WTT
Start Type PROGRAMMED START
Power Factor 0.98
Ballast Factor 1
Thermal Protection CLASS P
Lamp Wattage 24 W
Sub Brand CENTIUM
Voltage 120-277 Volt
Input Voltage 120/277 V
Input Wattage 52-52 W
