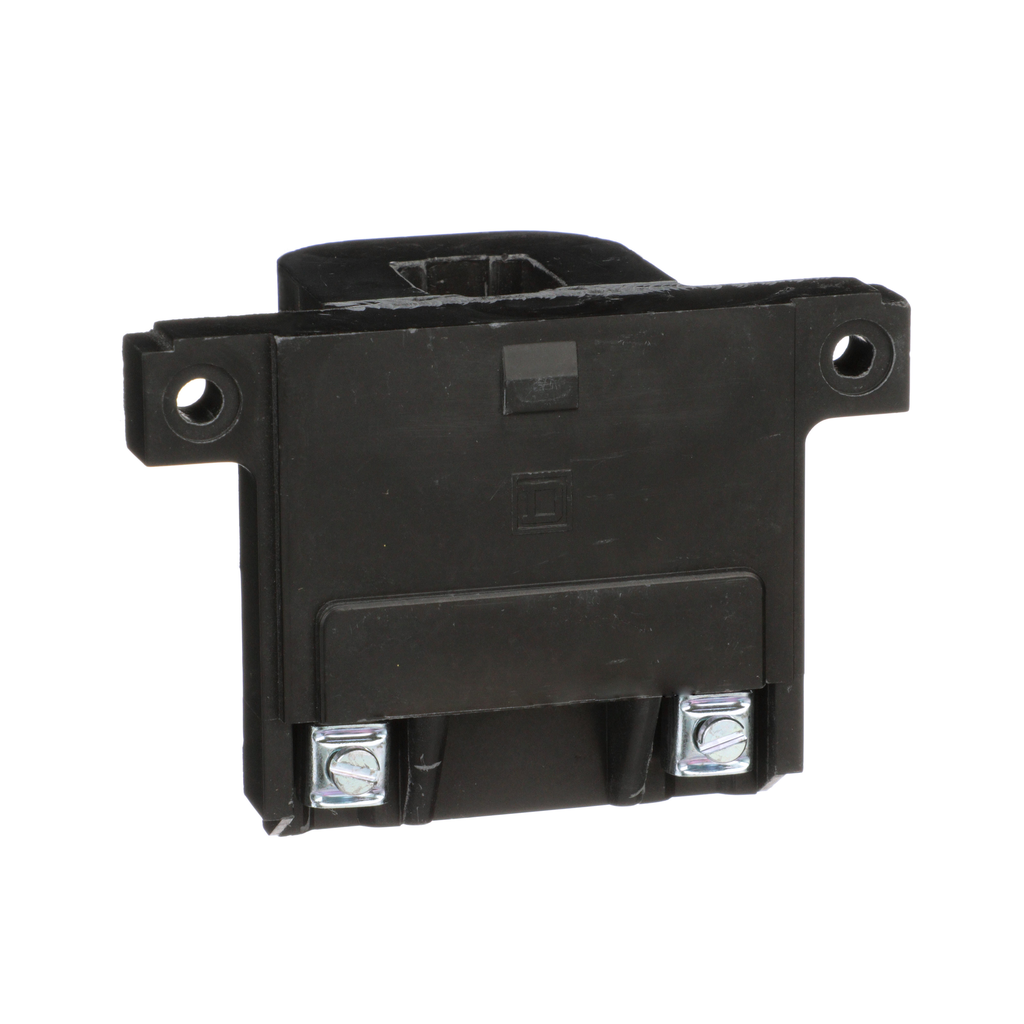

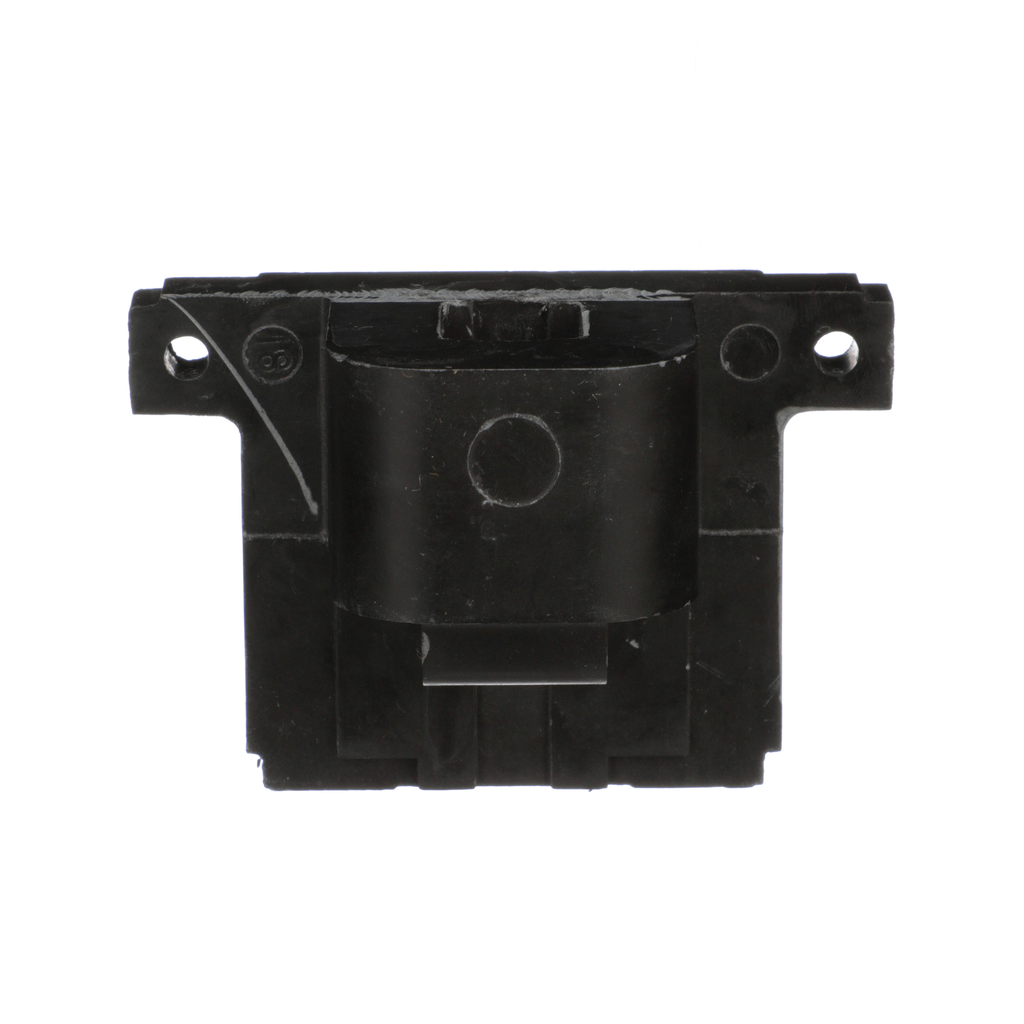

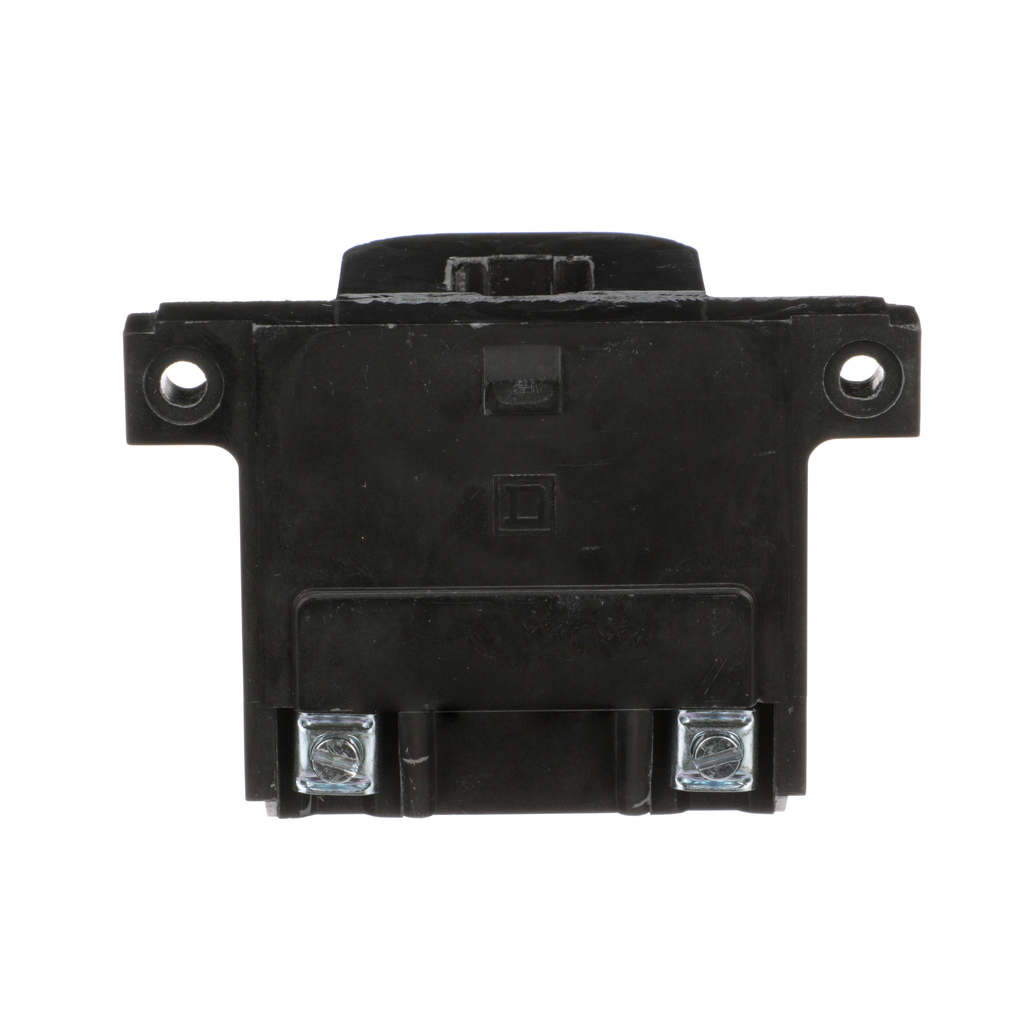

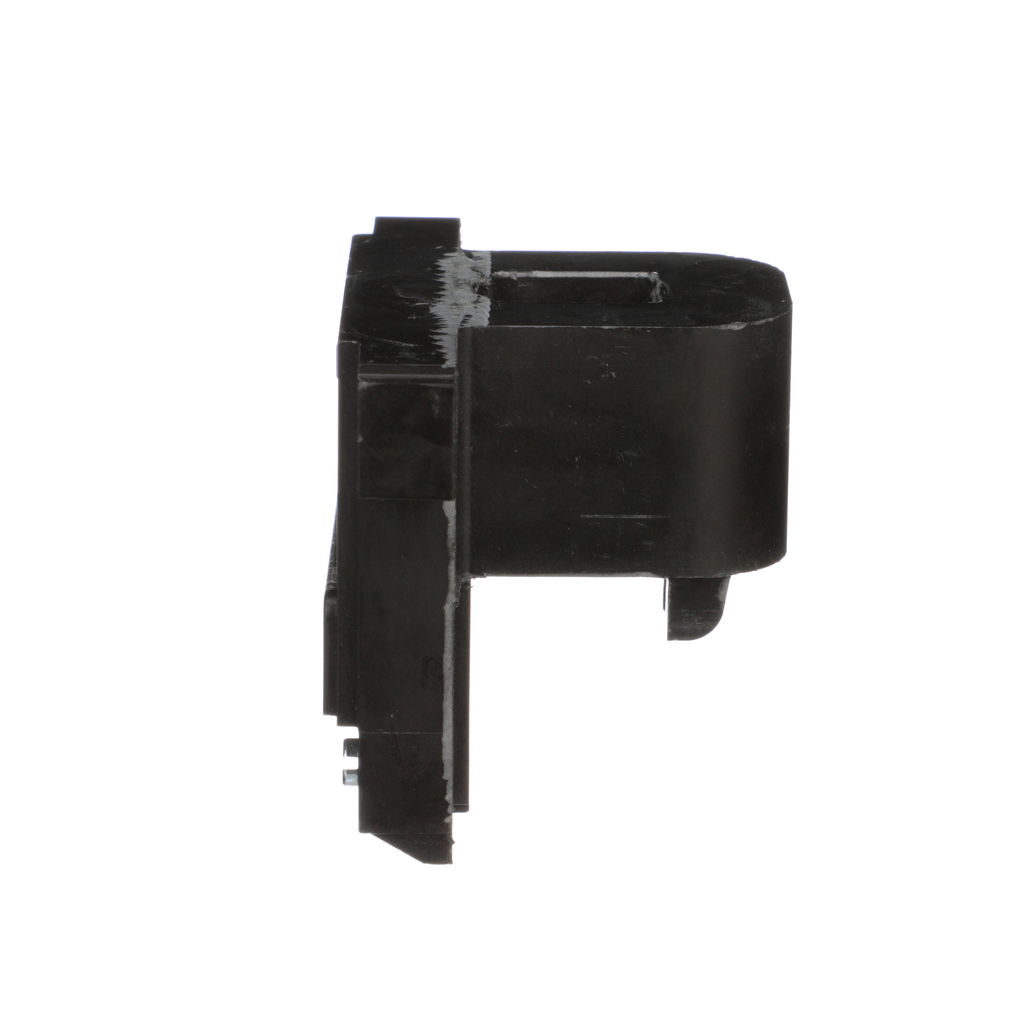

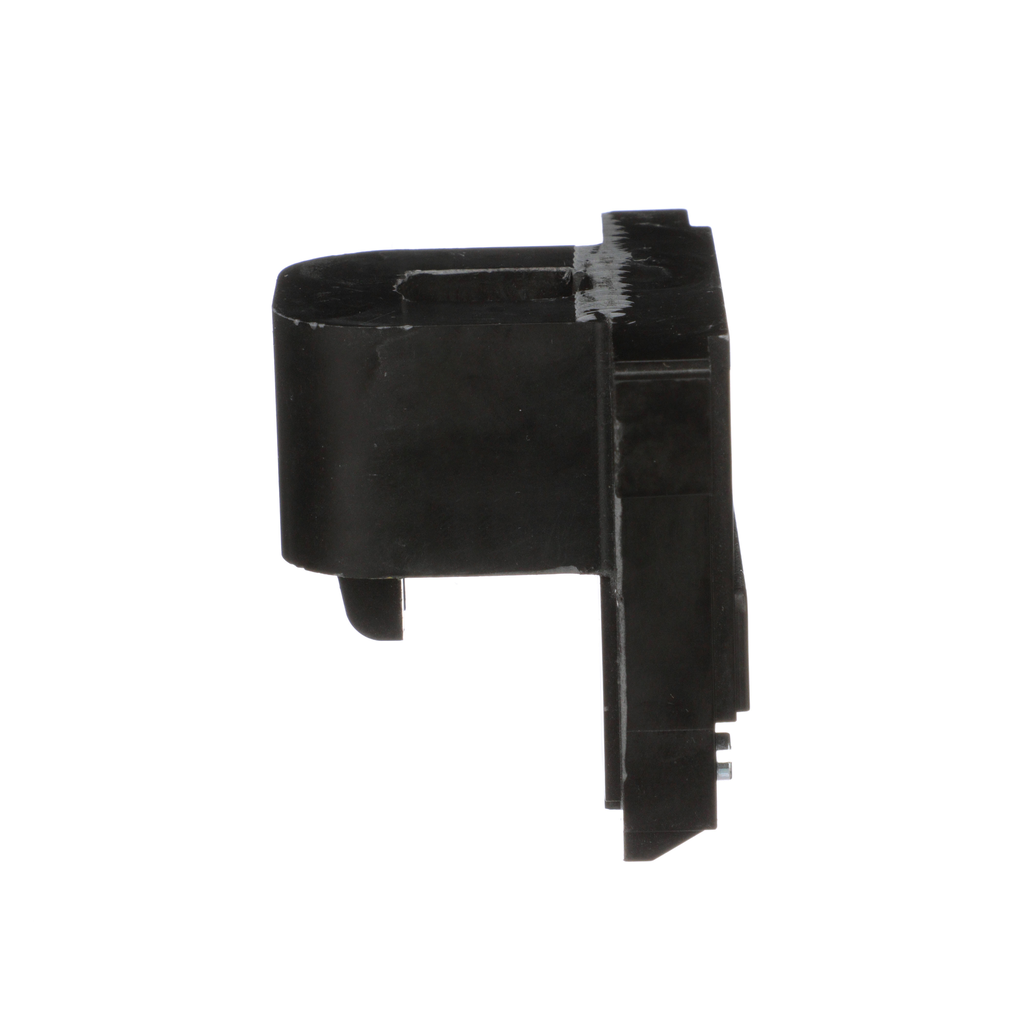

Square D 3104140052 277 VAC 30 Amp 60 Hz 245 VA Magnetic Contactor/Starter AC Coil

Manufacturer: Square-D / Schneider | Catalog # 3104140052 | Cooper Electric Part # 99997
$98.00 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
Type S contactor or starter coils can be easily replaced. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were

Technical Information

Applications
CONTACTORS AND STARTERS
Coil Voltage
277 V
NEMA Size
0,00,1
Operating Cycles
50/60HZ
Operating Temperature
40C AMBIENT
Power Consumption
27 VA
Size
1.90 in
TC Connection
SCREW CLAMP
Type
Coil
Voltage
277 Volt

Manufacturer Information

Brand
Square D
Sub Brand
SCHNEIDER ELECTRIC

General Product Info

12-Digit UPC
785901062936
GTiN
00785901062936
Product UPC
78590106293

Dimensions

Depth
1.9 in
Height
2.15 in
Warranty Length
18 mth
Width
3.21 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Country of Origin
Mexico
Accessory Separate Part Destination
  • class 8502 type SA (series A)/SB/SC contactor
  • class 8536 type SA (series A)/SB/SC starter
  • class 8903 type SM lighting contactor
  • class 8903 type SM lighting contacto
Ue Rated Operational Voltage
  • 277 V AC 60 Hz
Nema Size
  • 00
  • 1
  • 0
