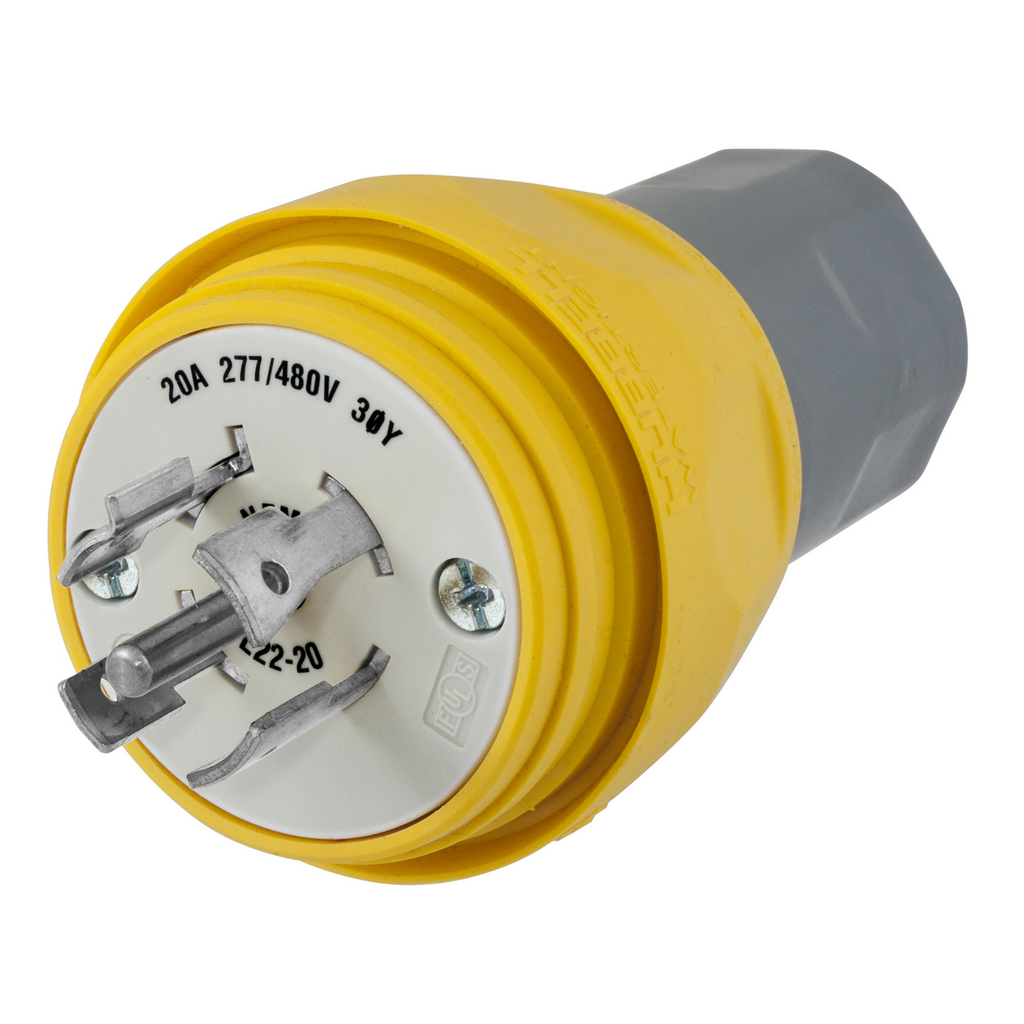

Product image for HWDK HBL26W82 PLUG,W/TIGHT,3PY 20A
Image thumbnail 0
Image thumbnail 1
Email

HWDK HBL26W82 PLUG,W/TIGHT,3PY 20A

Manufacturer: Hubbell Wiring Device | Catalog # HBL26W82 | Cooper Electric Part # 998623
$78.70/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
Watertight Devices, Twist-Lock® Plug, 20A, 3 Phase WYE 277/480V, 4 Pole, 5 Wire, Thermoplastic elastomer, NEMA L22-20P, Yellow

Technical Information

Amperage
20 Amp
Applications
For Industrial, Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S AWG Min, 10/3 S, 10/4 S, 10/5 S AWG Max
Contact Material
Nickel-Plated Brass
Cord Size
0.325 - 0.875 in
Cord Type
SJ, S, All Portable
Current
20 Amp
Dielectric Strength
2500 VAC
Material
Composite/Elastomeric
Mounting Type
Cord
NEMA
L22-20P
Number of Poles
4 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size

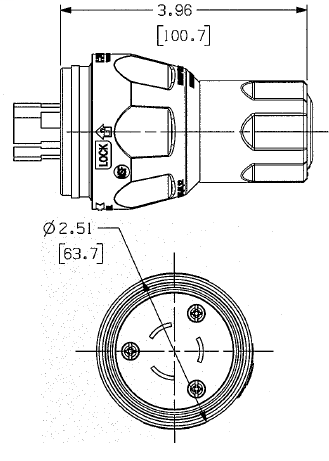

2.51 in x 2.51 in x 3.96 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
TC Connection
Screw Terminals
Temperature Rating
-40 degrees C to 60 degrees C
Type
Plugs
Voltage
277/480 Volt
Wire Count
5
Wire Size
Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585131689
Color
Yellow
Environmental Conditions
UV-Resistance, Moisture-Resistance
GTiN
00783585131689
Product UPC
78358513168

Dimensions

Height
3.96 Inch
Length
2.51 Inch
Width
2.51 in

Certifications and Compliance

Country of Origin
USA
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
