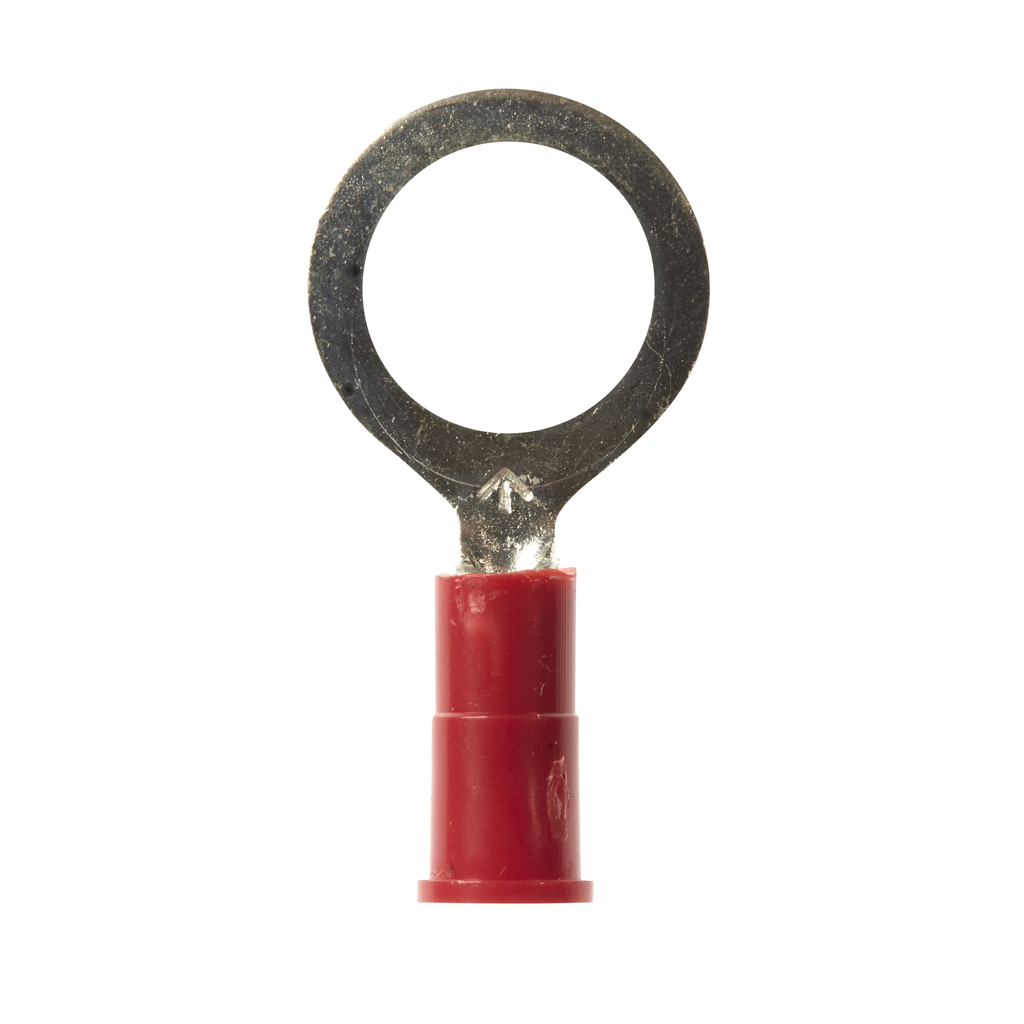

Product image for 3M 7100165246 3M™ Scotchlok™ Vinyl
Email

3M 7100165246 3M™ Scotchlok™ Vinyl

Manufacturer: 3M | Catalog # 7100165246 | Cooper Electric Part # 998588
$1.58/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
700 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Color-Coded Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Type
Brazed
Conductor Size
22-18 AWG
Insulation Material
Vinyl
Material
PVC
Standard
UL And CSA
Stud Size
3/8 in
Terminal Size
22 - 18 AWG
Terminal Style
Standard
Terminal Type
Ring
Type
Short Sleeve, Standard

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128587348
GTiN
00051128587348
Product UPC
05112858734

Dimensions

Length
1.13 Inch
Overall Length
1.13 in
Thickness
0.03 in
Width
0.56 in

Certifications and Compliance

Country of Origin
USA
Features
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
