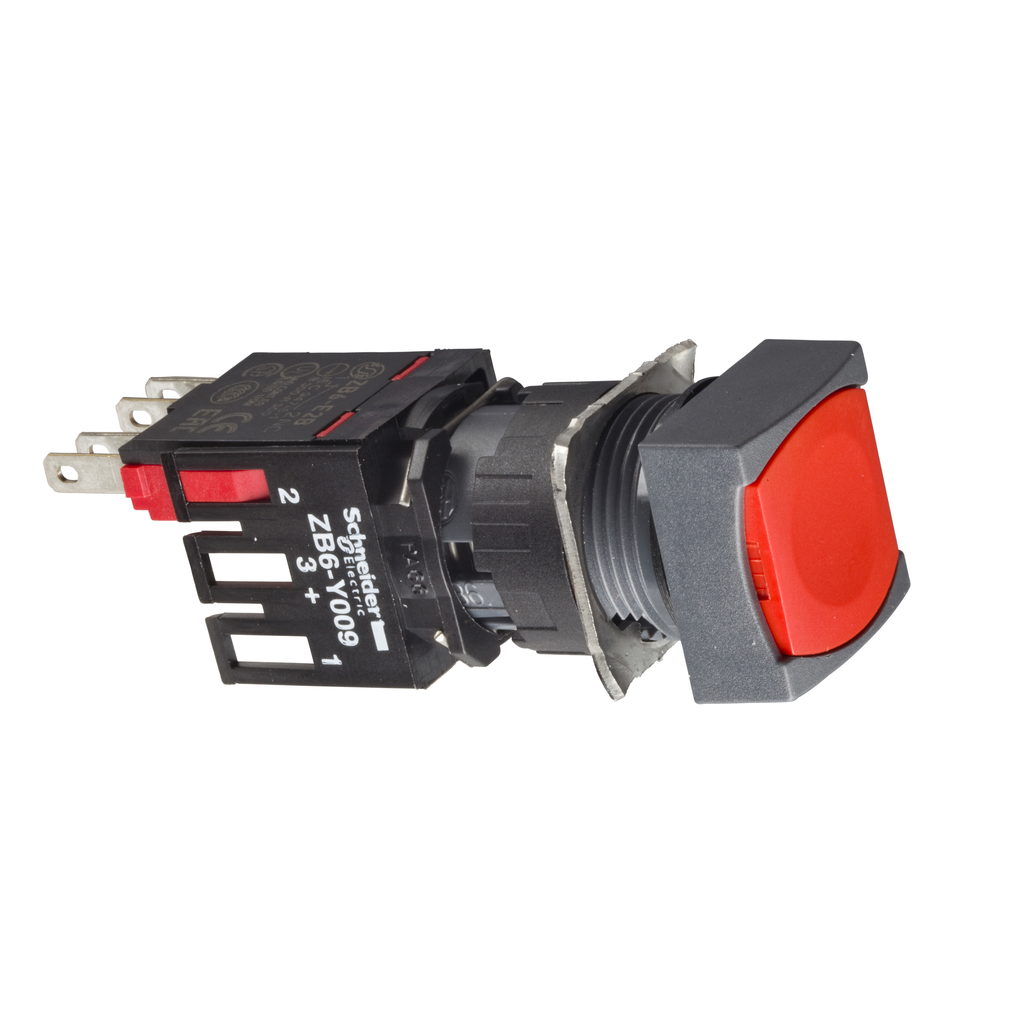

Square D XB6CA42B 16 mm 240 VAC 1.5 Amp 1NC Red Square Flush/Spring Return Non-Illuminated Push Button

Manufacturer: Square-D / Schneider | Catalog # XB6CA42B | Cooper Electric Part # 998247
$26.20/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Complete push button, Harmony XB6, red square flush pushbutton . 16 spring return 1NC unmarked

Technical Information

Action
Slow-break
Actuator
RED FLUSH, UNMARKED,SPRING RETURN
Amperage
3 Amp 120 V, AC-15, B300 EN/IEC 60947-5-1-1.5 Amp 240 V, AC-15, B300 EN/IEC 60947-5-1-0.1 Amp 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 Amp 125 V, DC-13, R300 EN/IEC 60947-5-1
Bezel Material
Plastic
Contact Configuration
1 NC
Contact Material
Silver Alloy
Contact Rating
AC15 - DC13
Enclosure
NEMA 13 UL 50-NEMA 4 UL 50-NEMA 4X UL 50-NEMA 13 CSA C22.2 NO 94-NEMA 4 CSA C22.2 NO 94-NEMA 4X CSA C22.2 NO 94
Indicator
FLUSH
Net Weight
0.019 kg
Operating Force
4.5 N NC changing electrical state
Operating Temperature
-25-70 Adegrees C
Size
0.63 in
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-5,JIS C 4520,JIS C 852,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
FASTON CONNECTORS 2.8 X 0.5 MM
Type
Complete push-button
Voltage
240 VAC

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XB6

General Product Info

12-Digit UPC
785901356707
Environmental Conditions
WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
03389110764321
Product UPC
78590135670
Weight
0.04 lb

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA,GOST,UL
Country of Origin
Mexico
