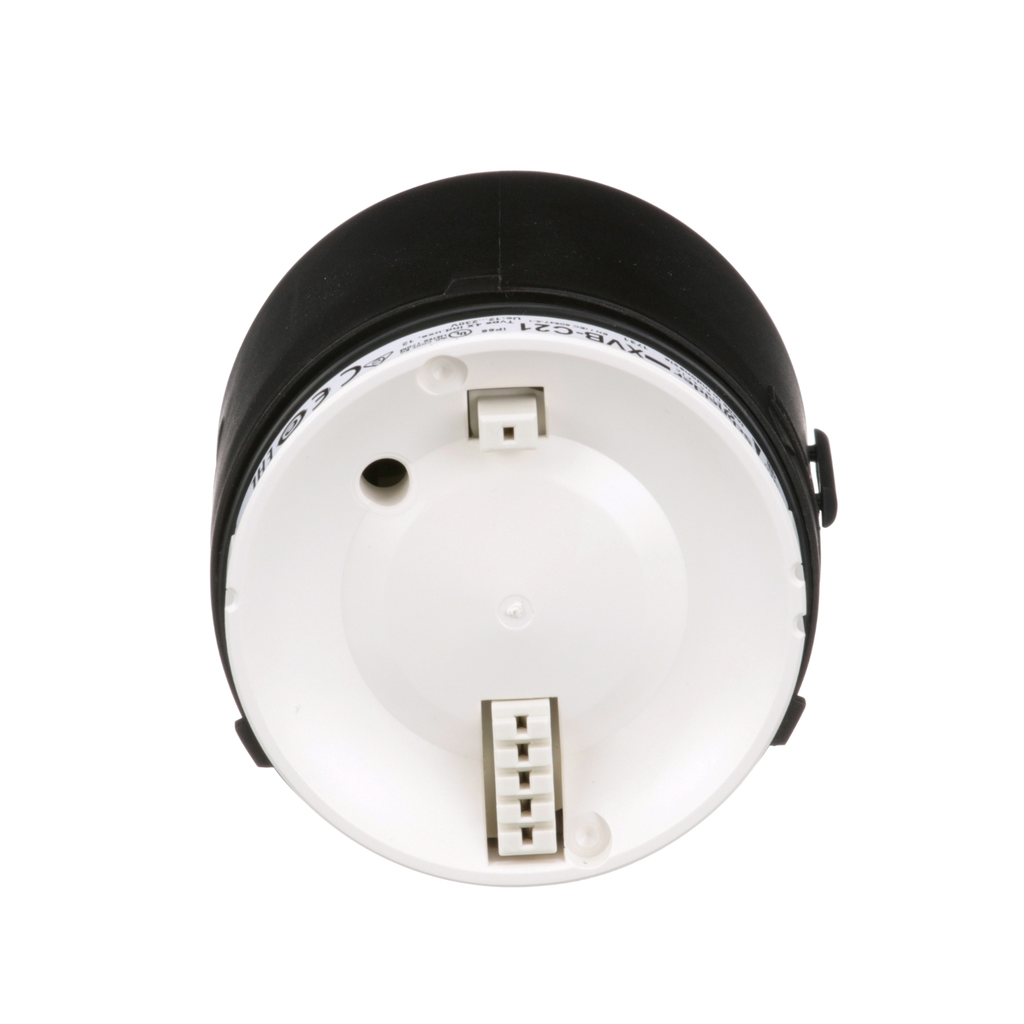

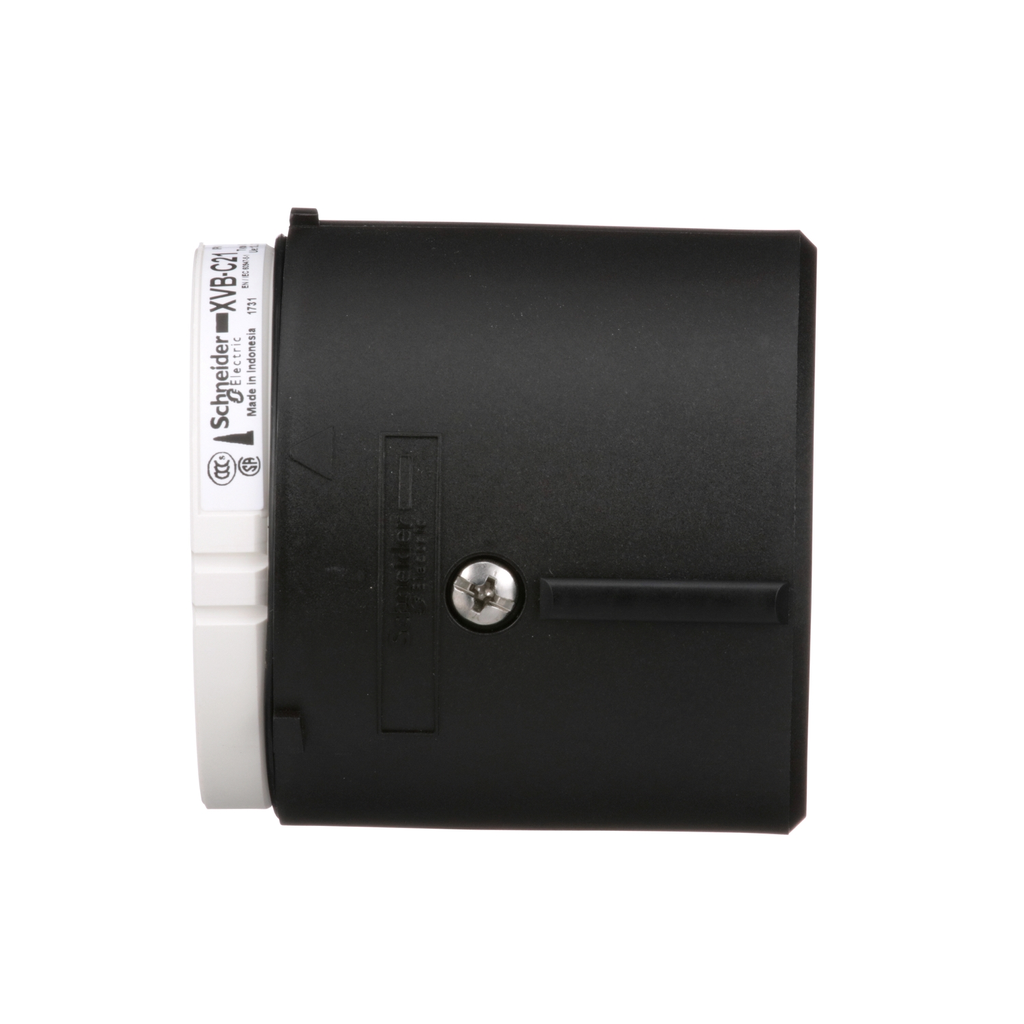

Square D XVBC21 70 mm Black Glass Reinforced Polyamide Beacon Base Unit with Cover

Manufacturer: Square-D / Schneider | Catalog # XVBC21 | Cooper Electric Part # 99717

$61.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Harmony XVB 70 mm modular beacons and tower lights are available with steady or flashing lights, and with incandescent or LED illumination. The XVB 70mm tower light range is modular line makes assembly simple which minimizes installation time. There are 5 illuminated units and an audible unit that are simple interchangeable units. The LEDs have a service life of 100,000 hours which reduces the need for maintenance. The wide variety of modules simplifies designing a tower light to meet your requirements. Harmony XVB 70 mm tower lights can be used in automotive, machine tool, material handling, packaging, assembly stations, conveyors and more. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).

Technical Information

Applications
BANKS WITHOUT FLASH DISCHARGE TUBE UNIT
Cable Entry
Bottom Or Side Entry
Enclosure
NEMA 4X UL 508 INDOOR)
Lens Material
GLASS REINFORCED POLYAMIDE BASE UNIT-POLYCARBONATE COVER UNIT
Material
Glass Reinforced Polyamide: Base Unit,Polycarbonate: Cover Unit
Net Weight
0.19 kg
Size
70 MM
Standard
IEC 60947-5-1
Storage Temperature
-40-70 degrees C
Type
BASE UNIT WITH COVER

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XVBC

General Product Info

12-Digit UPC
389110845023
GTiN
03389110845020
Product UPC
78590184502
Weight
0.19 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA C22-2 No 14,EAC,UL 508
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • XVBZ02
  • XVBZ02A
  • XVBZ04
  • XVBZ01
  • XVBL34
  • XVBL35
  • XVBL36
