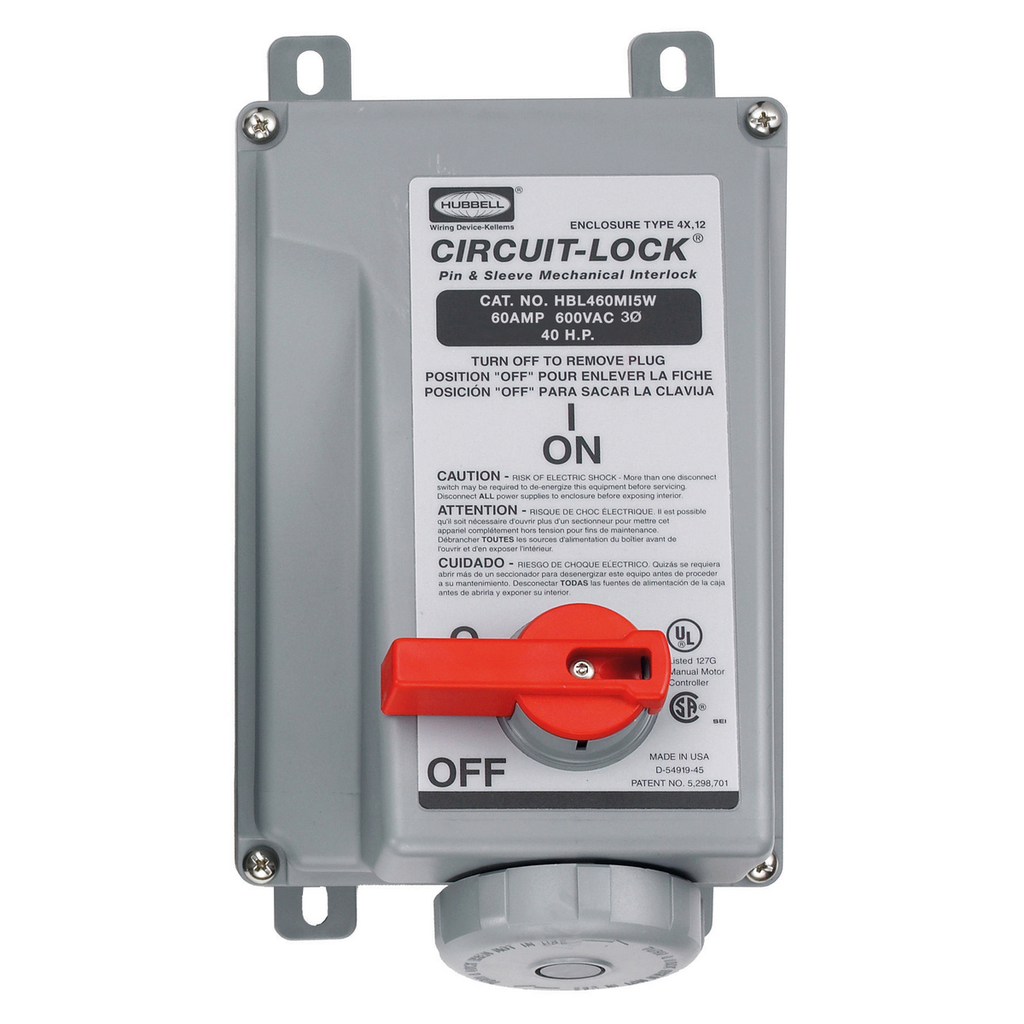

Product image for Hubbell HBL460MI5W Pin & Sleeve IEC Unfused Circuit-Lock® Mechanical Interlock, 60A 3P4W, 3Ø 600V, IP67, NEMA 4X, 12
Email

Hubbell HBL460MI5W Pin & Sleeve IEC Unfused Circuit-Lock® Mechanical Interlock, 60A 3P4W, 3Ø 600V, IP67, NEMA 4X, 12

Manufacturer: Hubbell Wiring Device | Catalog # HBL460MI5W | Cooper Electric Part # 995835
$3,031.45/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 60A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, Terminal Screws

Technical Information

Amperage
60 Amp
Applications
For High Ampacity Watertight Connections
Conductor Size
8-2 AWG
Connection Type
Pressure Terminal Screws
Contact Rating
60 A
Current
60 Amp
Material
Thermoplastic
Number of Phases
3 Phase
Number of Poles
3-3 Pole
Number of Wires
4,4
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL
Style
Standard Service
TC Connection
Pressure Screw Terminals
Terminal Type
Screw
Type
Mechanical, Single, 3-Pole, 4-Wire, Three Phase, Watertight
Voltage
600 Volt
Wattage
36000 Watt
Wire Count
4
Wire Size
8-2 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585406046
Color
Black
Environmental Conditions
Watertight
GTiN
00783585406046
Product Series
Lock,Unfused Circuit
Product UPC
78358540604
Weight
8.4 lb

Dimensions

Height
7.2 Inch
Length
14.7 Inch
Width
8.800 in

Certifications and Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
USA
Features
  • Large gears enclosed in a gear box
  • Lockable handle to meet OSHA Lockout/Tagout regulations
  • Pre-wired IEC Pin and Sleeve receptacle
  • Watertight
