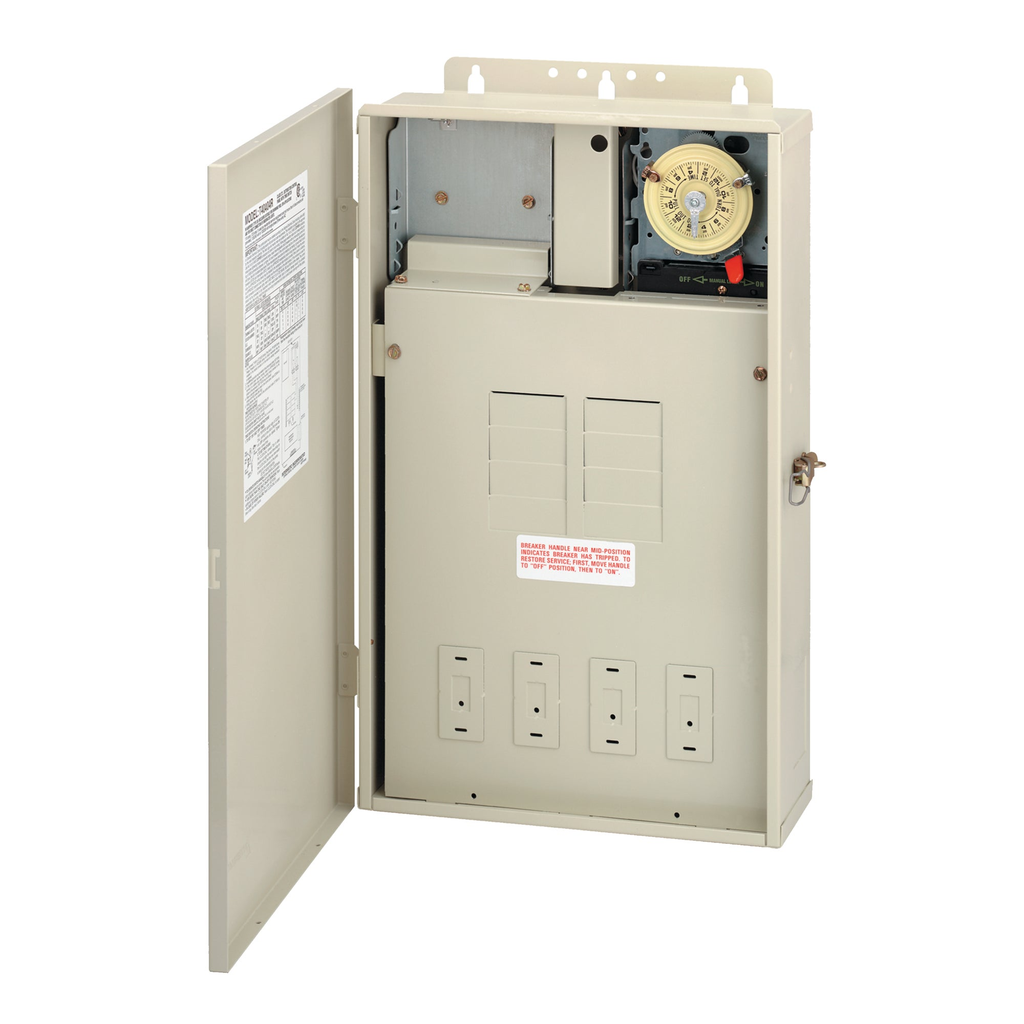

Product image for Intermatic T40004R POOL PNL - 125A, TIMER
Email

Intermatic T40004R POOL PNL - 125A, TIMER

Manufacturer: Intermatic, Inc | Catalog # T40004R | Cooper Electric Part # 993153
$440.65/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Can be used as a Load Center only, or add mechanisms or wiring devices for complete control systems.

Technical Information

Amperage
125 Amp
Applications
Distribution/Control Panel,Motor Control,Pump Control
Enclosure
Type 3R
Enclosure Rating
3R
Frequency
60 Hz
Input Voltage
208-277 V
Material
Metal
Max Operating Temperature
130 degrees F
Min Operating Temperature
-40 degrees C
Mounting Type
Wall Mount
Number of Circuits
1
Number of Phases
1 Phase
Operating Temperature
-40 To 130 degrees F
Power Consumption
3 W
Size
20-3/4 HEIGHT X 12-3/4 WIDTH X 4-1/2 DEPTH IN, 508 HEIGHT X 304 WIDTH X 101 DEPTH MM
Standard
CCSAus Certified
Switch Type
DPST
Type
Load Center
Voltage
240 VAC

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275755017
Color
Beige
Environmental Conditions
Outdoor
GTiN
00078275755017
Product UPC
07827575501

Dimensions

Depth
4-3/4 Inch
Height
20-7/8 Inch
Warranty Length
1 yr
Width
12.875 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Country of Origin
Mexico
Features
  • Eight breaker spaces
  • Reduces installation costs
  • All-in-one electrical load center eliminates the need for additional service panels
  • Accepts any combination of PF1000M Series, P1403ME, P1353ME, P4043ME, P4243ME, T100M Series or RC2000M Series mechanisms
  • Fully compatible with all electrical requirements for pool/spa installations
  • Load center dead front has four knockouts for switches or GFCIs (Note: T40000R4 has one knockout)
  • Wiring devices may be installed in these Load Centers with the use of Standoffs, sold separately
  • NA
