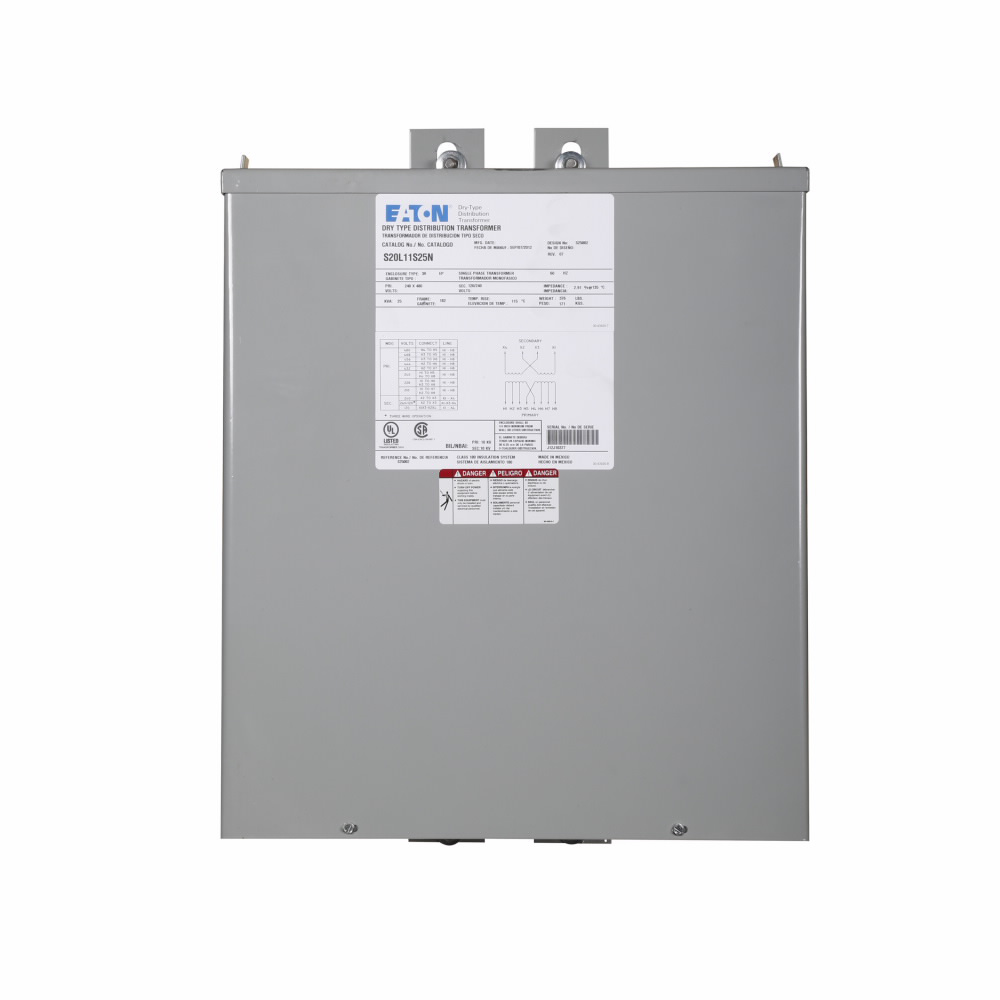

Product image for Cutler-Hammer S20L11S25N 240 x 480 Volt Primary 120/240 Volt Secondary 25 kVa 1-Phase Encapsulated Transformer
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Email

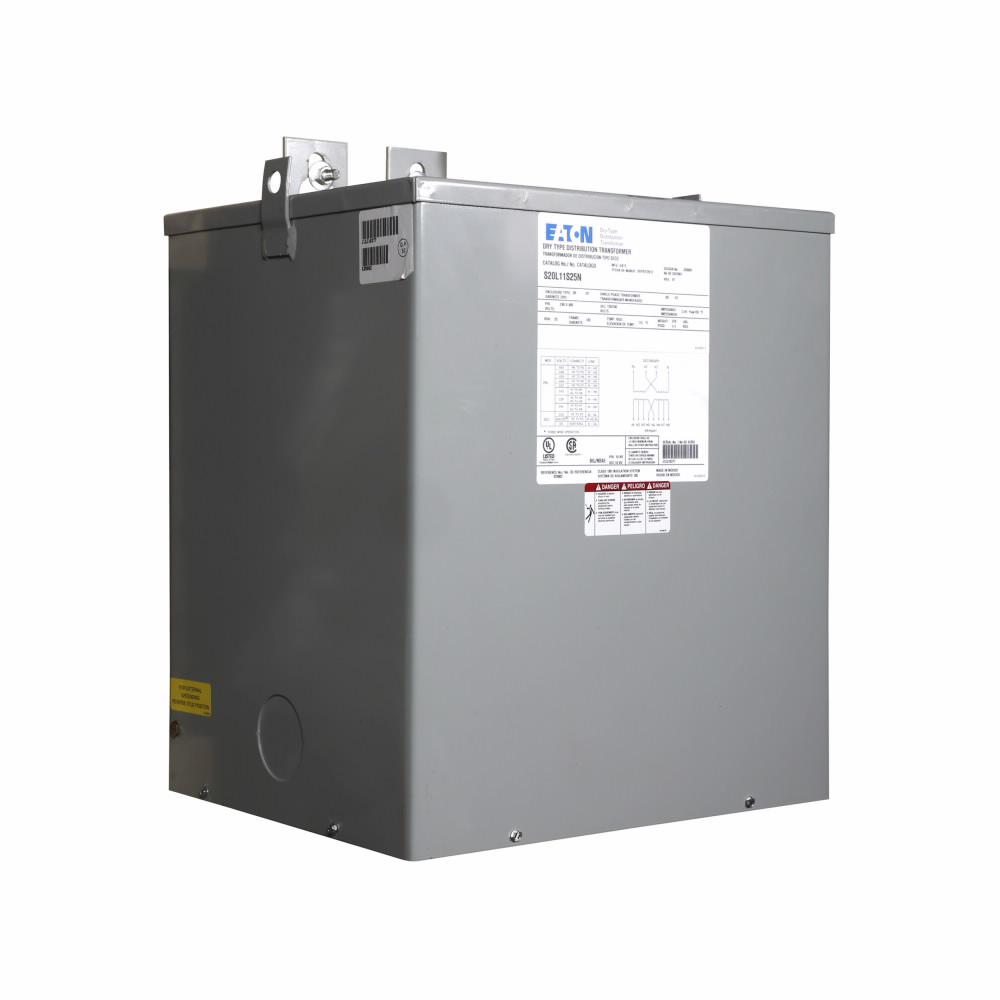

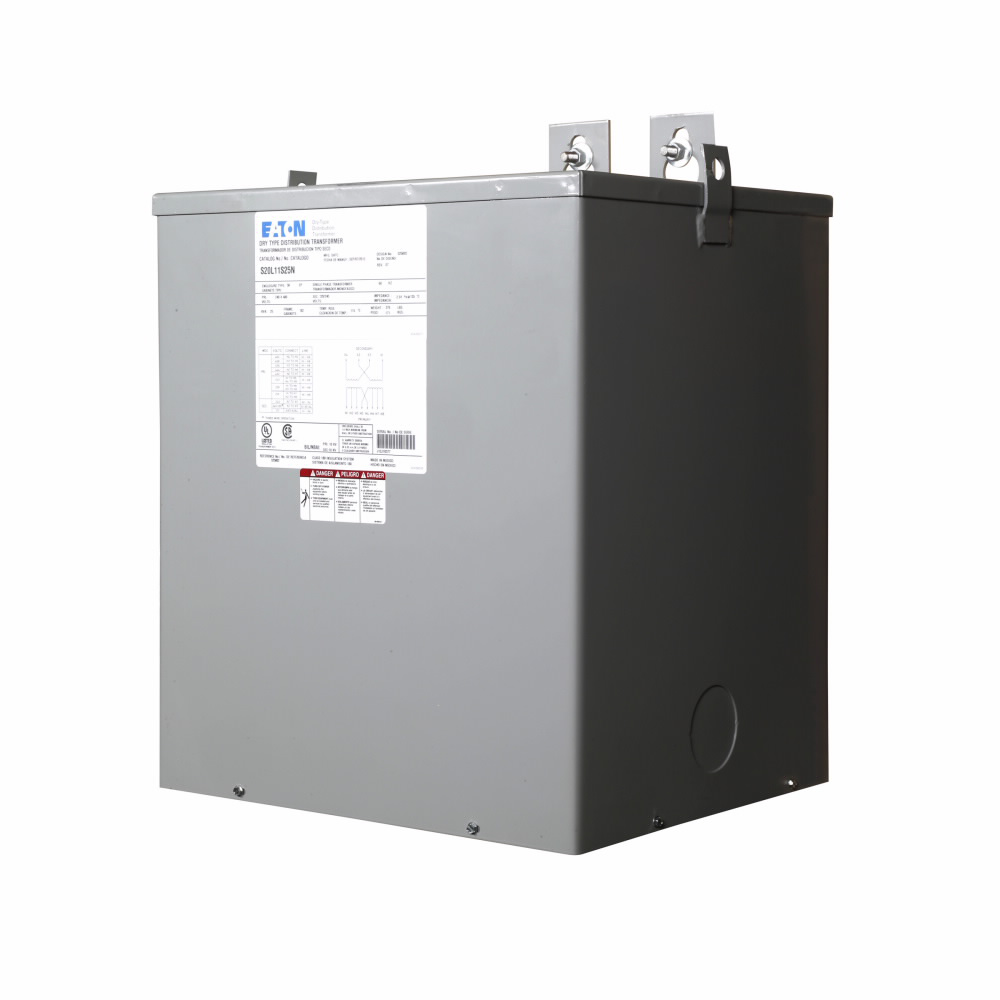

Cutler-Hammer S20L11S25N 240 x 480 Volt Primary 120/240 Volt Secondary 25 kVa 1-Phase Encapsulated Transformer

Manufacturer: Cutler-Hammer / Eaton | Catalog # S20L11S25N | Cooper Electric Part # 991410
$3,837.19/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Eaton General-Purpose Encapsulated Transformer, EP, Single-phase, PV: 240 X 480V, Taps: 2 at -5% FCBN X 4 at -2.5% FCBN, SV: 120/240V, 115.C, 25 kVA, Al windings, Frame: 182, Indoor-Outdoor

Technical Information

Applications
Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
Coil Material
Aluminum
Enclosure
3R
Frame
182
Frequency
60 Hz
NEMA Size
3R
Number of Phases
1 Phase
Primary Voltage
240 V
Secondary Voltage
240 V
Tap Size
2 at -5% FCBN X 4 at -2.5% FCBN
Temperature Rating
115 degrees C
Type
Encapsulated Transformer,General Purpose

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
786680109355
GTiN
00786680109355
Product UPC
78668010935
Weight
376 lb

Dimensions

Height
23.31 Inch
Length
14.12 Inch
Width
16.35 in
