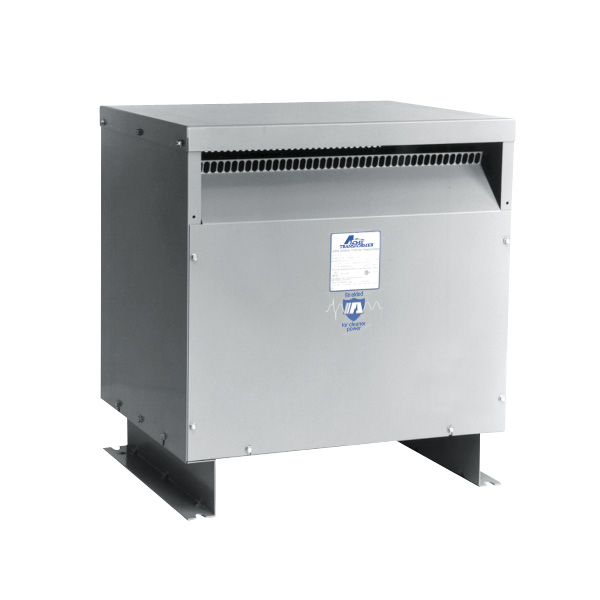

Product image for ACME TP533168S TRANSFMR 3PH 150KVA
Email

ACME TP533168S TRANSFMR 3PH 150KVA

Manufacturer: Acme Electric | Catalog # TP533168S | Cooper Electric Part # 990312
$7,605.31/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
480 Delta Primary Volts - 208Y/120 Secondary Volts - Acme three phase low voltage distribution transformers are designed for industrial and commercial applications. All of Acme general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.

Technical Information

Applications
Ventilated
Number of Phases
3 Phase
Type
Isolation transformer

Manufacturer Information

Brand
Acme Electric Company

General Product Info

12-Digit UPC
047503205648
GTiN
00047503205648
Product UPC
04750320564
Weight
1145 lb

Dimensions

Depth
29.9 Inch
Height
41-1/2 Inch
Width
32.900 in
Overview
  • UL Class 220 deg C insulation system, 150 deg C rise
  • Noise and vibration isolating pads standard to assure quiet operation
  • 480 Delta Primary Volts; 208Y/120 Secondary Volts; May be used on a 4 wire 480Y/277 Volt Supply; 3Ø, 60Hz
  • All units have ground studs for use with non-metallic conduit
  • With weather shield, UL Type 3R enclosure type 2 enclosure without weather shield
  • Suitable for wall or \"trapeze\" mounting
  • NEMA standard bus bar terminals, no special tools needed to make clearly marked connections Tap changing easily accomplished with jumpers
  • Aluminum windings for increased insulation life, cooler operation, lower losses
  • 80 deg C Rise
  • Extra large wiring compartment for easier installation and cooler case temperatures
  • Large permanently legible nameplates on front
