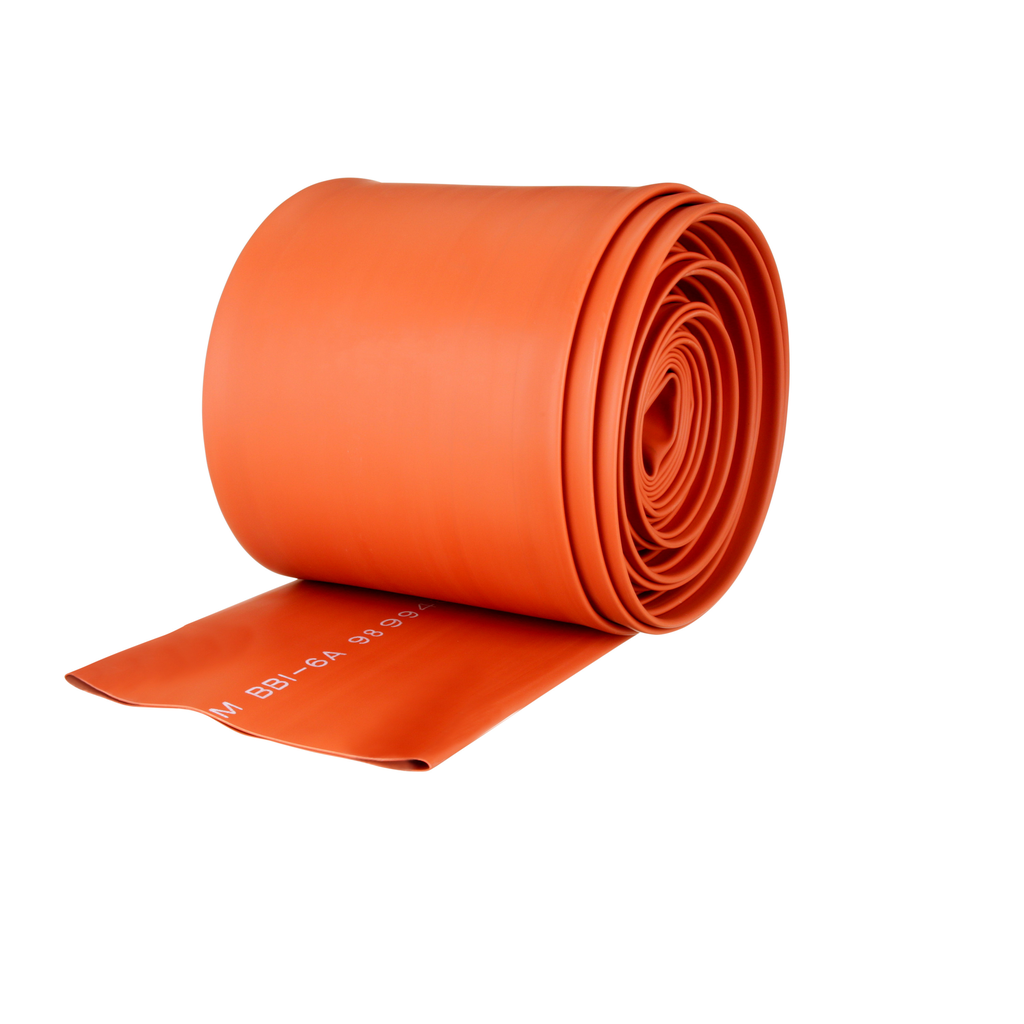

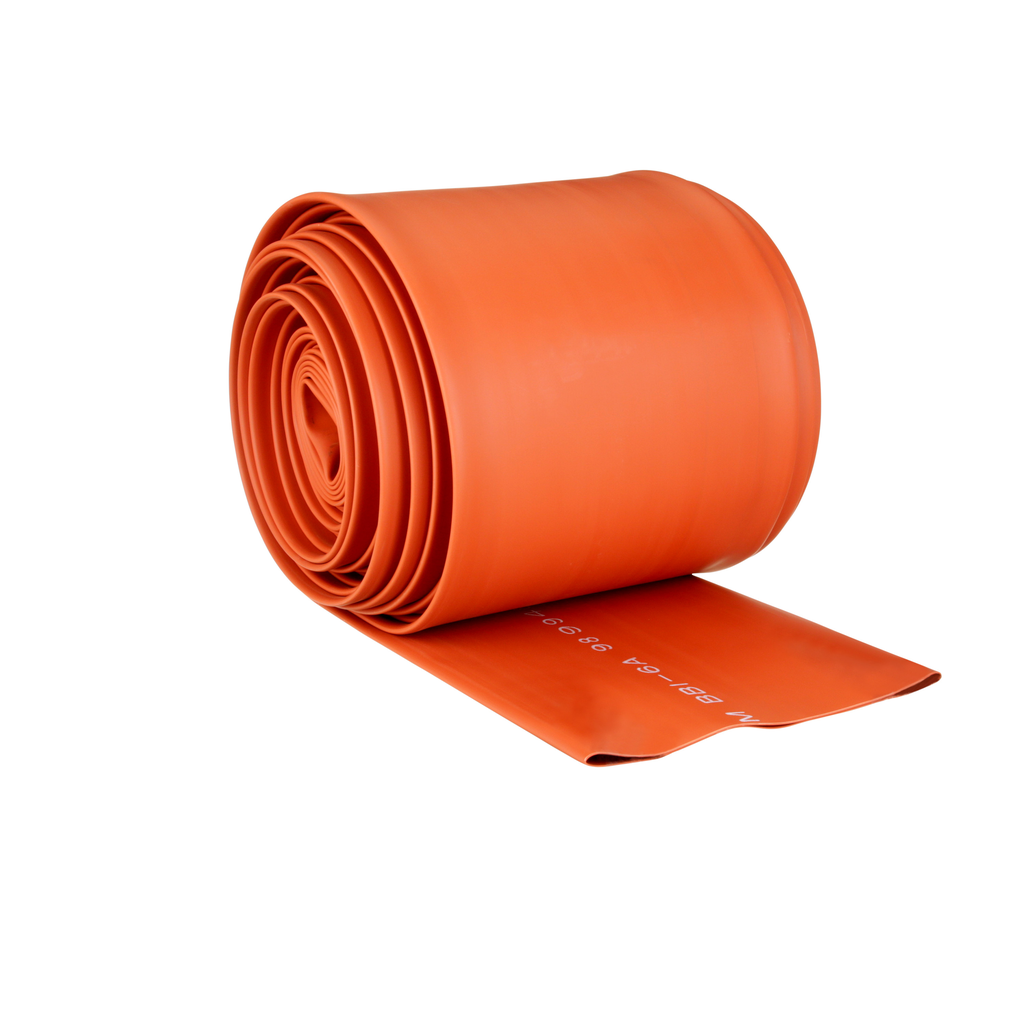

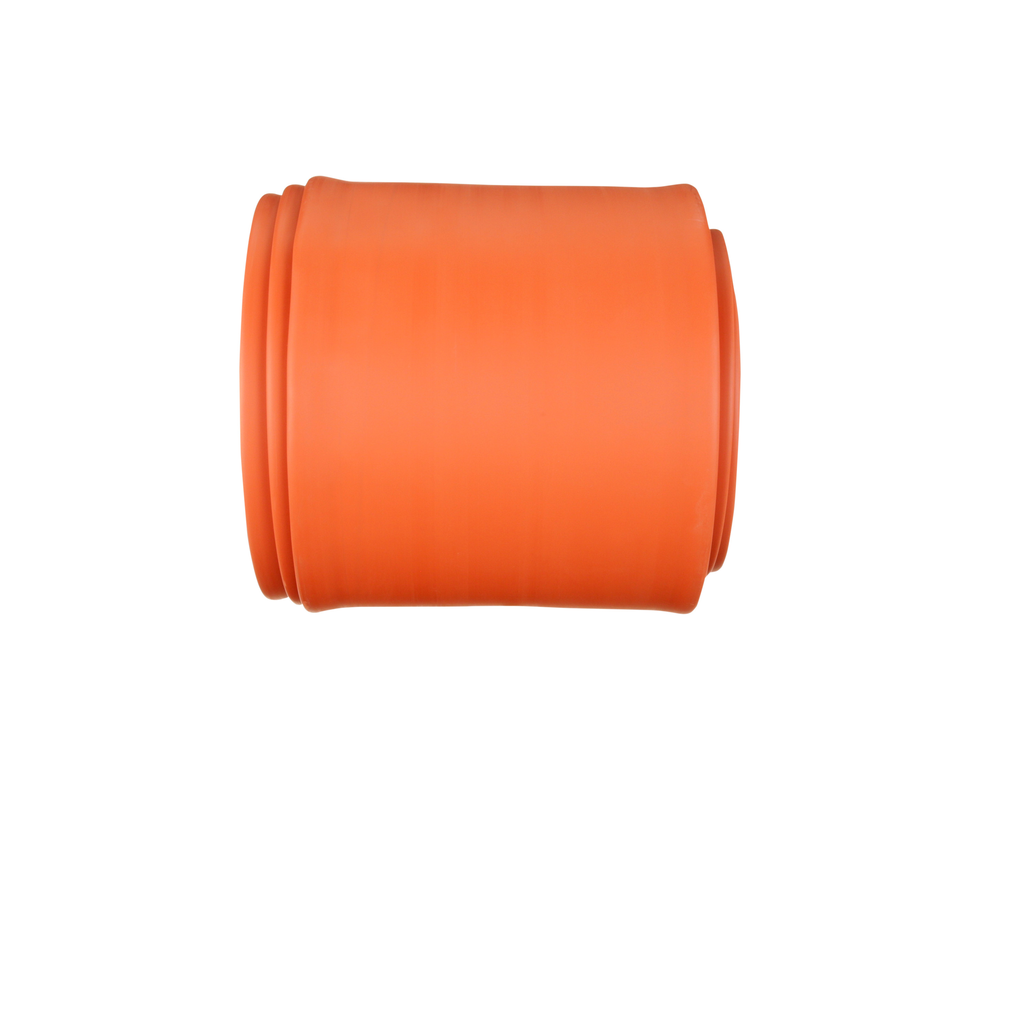

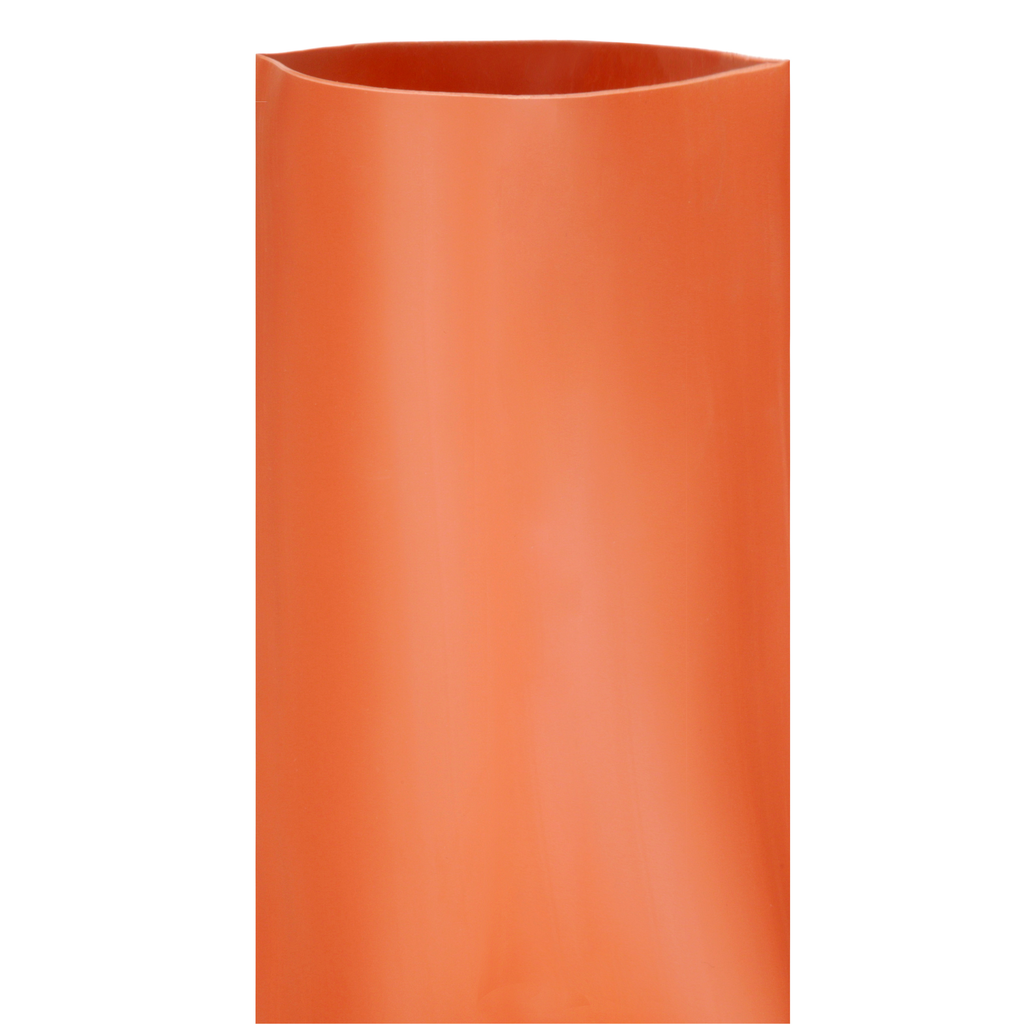

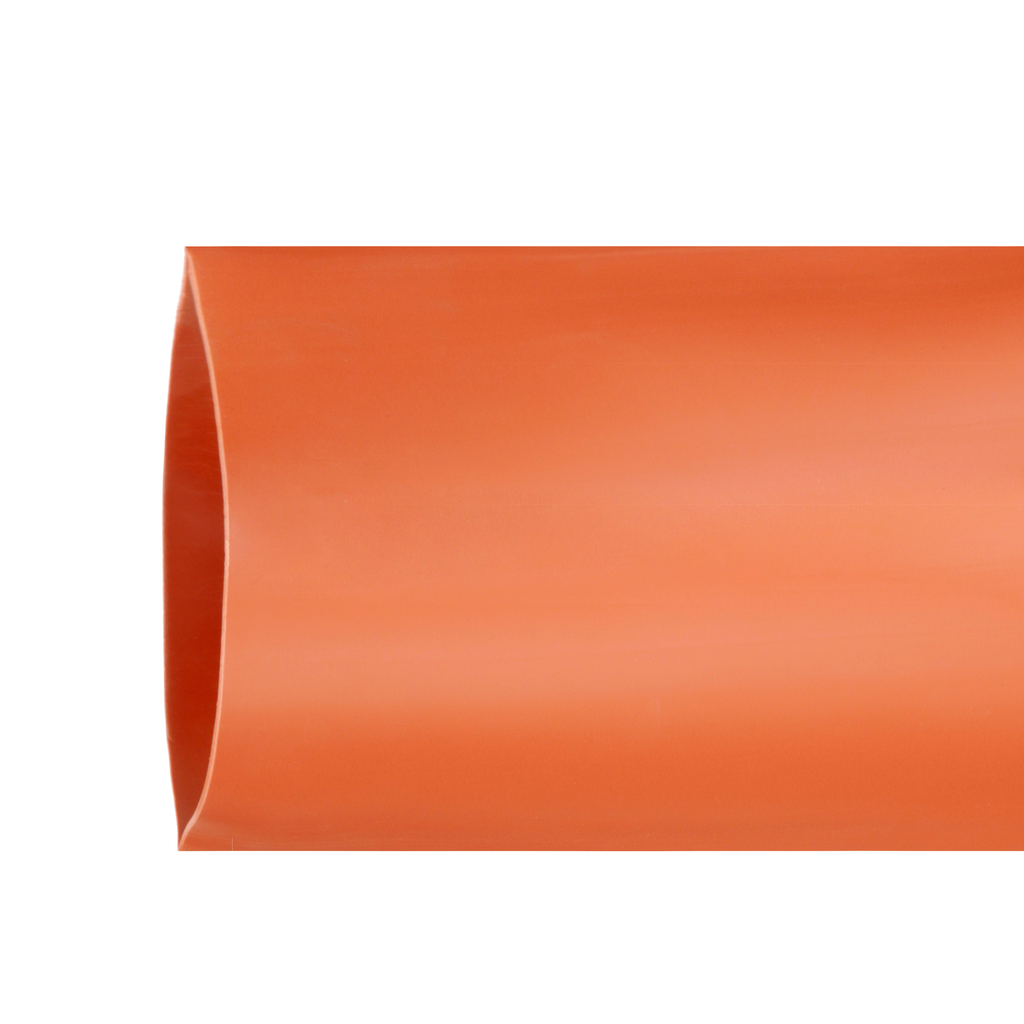

3M 7100025925 3M™ Heat Shrink Tubin

Manufacturer: 3M | Catalog # 7100025925 | Cooper Electric Part # 990220
$71.85/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
3M™ Bus Bar Heat Shrink Tubing BBI is a flame retardant tubing that provides reliable protection and insulation for 5 to 35 kV rated applications. The cross linked polyolefin construction is split and solvent resistant while offering good tracking resistance. It offers a tight fit for rectangular, square or round bus bars.

Technical Information

Dielectric Strength
550 V/mil
Material
Polyolefin
Max Operating Temperature
110.0 degrees C
Operating Temperature
-55 degrees C
Shrink Ratio
Not Applicable
Splice Type
Heat Shrink
Standard
IEC,ASTM
Type
Bus Bar
Voltage
15 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
051135357323
Color
Red
GTiN
00051135357323
Product Type
Bus Bar Tubing
Product UPC
05113535732
Shape
Rectangle

Dimensions

Inside Diameter
2.33
Length
20 Foot
Outside Diameter
5.9 in
Overall Length
20.0 ft
Thickness
0.046

Certifications and Compliance

Country of Origin
USA
Features
  • For rectangular, square and round bus bars
  • For inline bolted connections of rectangular bus bars
  • For copper or aluminium bus bars
  • For use in metal-clad switchgear
  • For use on metal-enclosed bus bar
  • For use with substation switchgear
