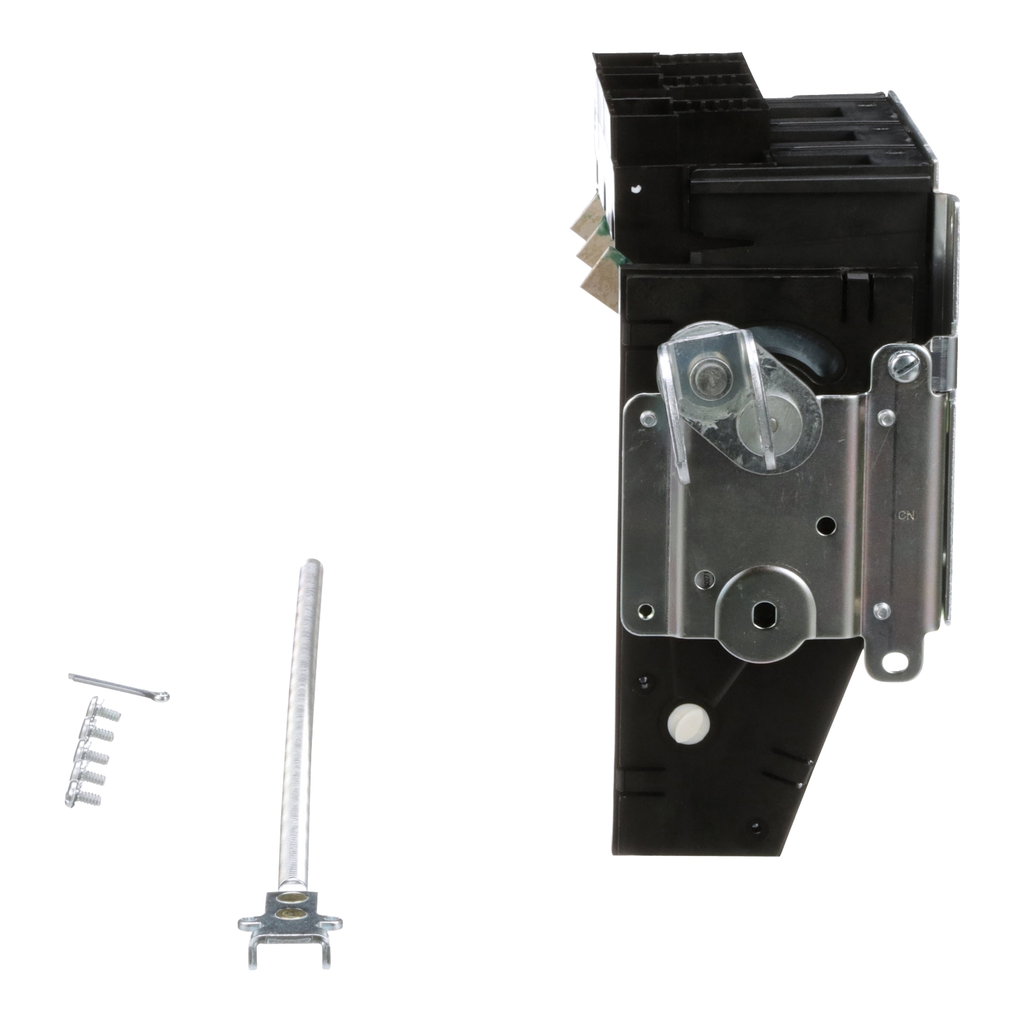

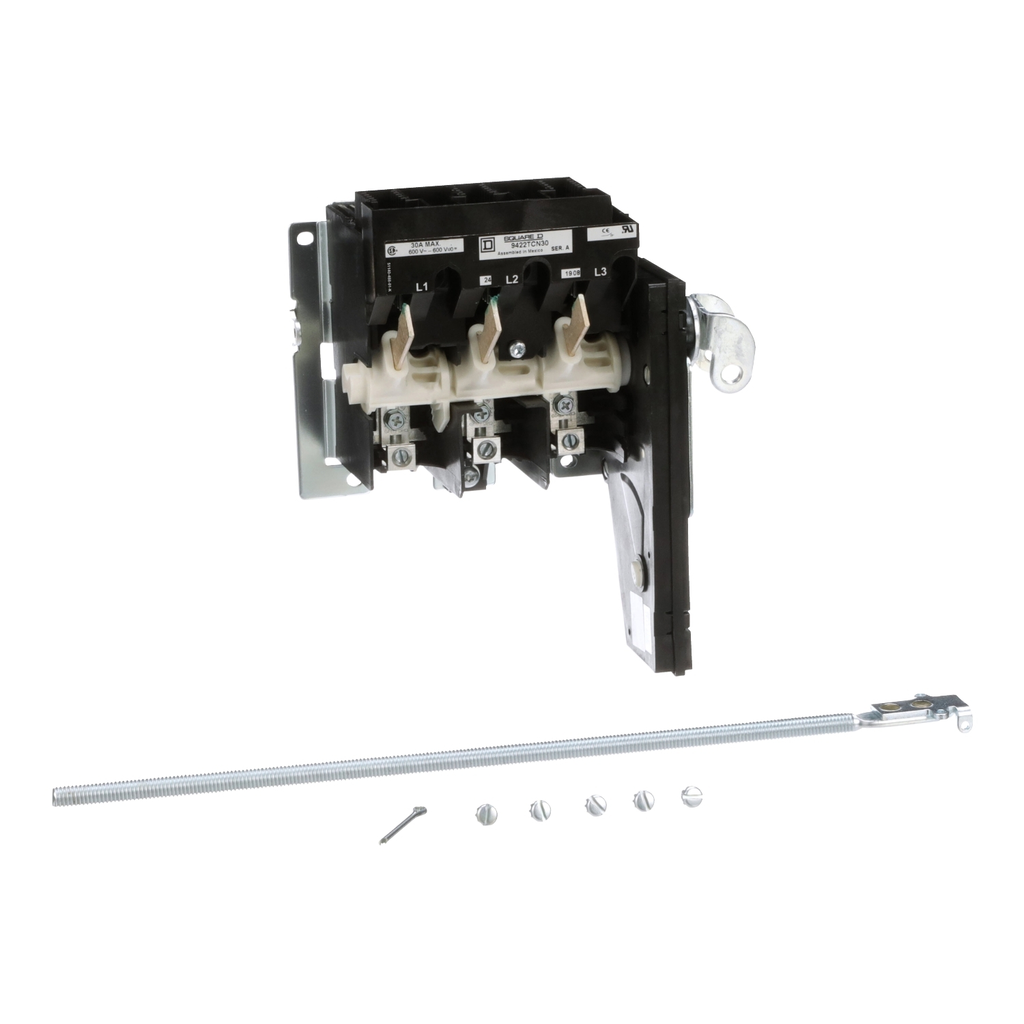

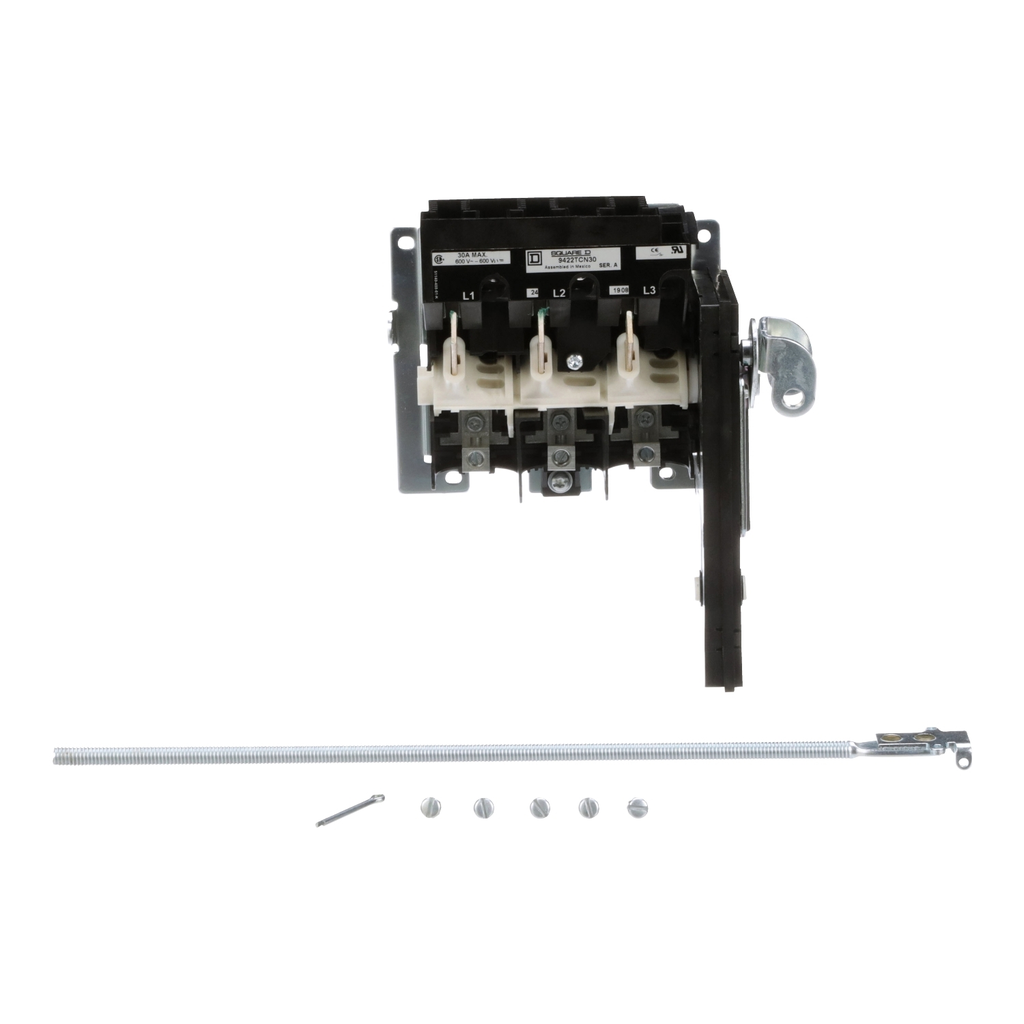

Square D 9422TCN30 30 Amp 600 VAC/VDC Non-Fusible Disconnect Switch

Manufacturer: Square-D / Schneider | Catalog # 9422TCN30 | Cooper Electric Part # 98838
$496.72/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch is without fuse clips. This 30 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 7.5 HP at 208 VAC, 7.5 HP at 240 VAC, 15 HP at 480 VAC and 20 HP at 600 VAC. Switch is also rated for 5 HP at 250 VDC and 15 HP at 600 VDC when using two poles. This disconnect switch uses 9422A operating handles. Handle is to be ordered seoparately. Disconnect switch lugs are rated for #14 to #2 AWG with copper wire and #10 to #2 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified

Technical Information

Actuator
9422 TYPE A HANDLE (PURCHASE SEPARATELY)
Amperage
30 Amp
Applications
ROD OPERATED - VARIABLE DEPTH/FLANGE MOUNT
Current
30 Amp
Disconnect Type
Non-fusible disconnect switch NULL
Enclosure
FLANGED
Handle Type
Ordered separately
Line Rated Current
30 A
Mounting Type
Flange Rod Variable Depth
Number of Poles
3 Pole
Range
9422T NULL
TC Connection
FLANGE MOUNT
Trip Type
NON FUSIBLE NON FUSIBLE
Type
DISCONNECT SWITCH

Manufacturer Information

Brand
Square D
Sub Brand
SCHNEIDER ELECTRIC

General Product Info

12-Digit UPC
785901879749
GTiN
00785901879749
Product UPC
78590187974

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Recognized
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 9422A1
  • 9423M24
  • 9422A1Y
  • 9423M4
  • 9422A2
  • 9423M8
  • 9422A3
  • 9423M9
  • 9422A4
  • 9422CFT30
  • 9422CFT51
