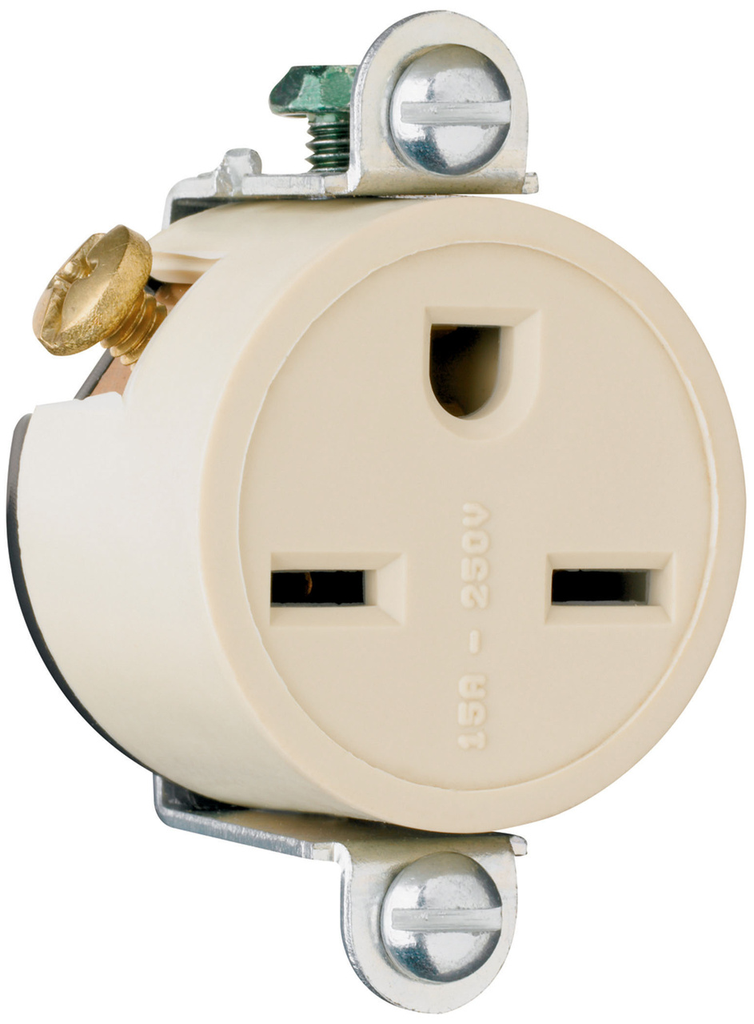

Product image for Pass & Seymour 5658-I Commercial Grade Short Strap Single Receptacle, Side Wire, 15A 250V - Ivory
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour 5658-I Commercial Grade Short Strap Single Receptacle, Side Wire, 15A 250V - Ivory

Manufacturer: Pass & Seymour / Legrand | Catalog # 5658I | Cooper Electric Part # 987757
$20.13/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Short Strap Spec Grade Single Receptacle, Side Wire, 15amp 250volt, Ivory

Technical Information

Amperage
15 Amp
Applications
Commercial,Residential
Capacity
Single
Conductor Size
14-10 AWG
Grade
Specification
Material
Thermoplastic
NEMA
5-15R
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
4.25x1.25x1.81
Type
Receptacle
Voltage
250 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007565812
Color
Ivory
GTiN
00785007565812
Product UPC
78500756581
UNSPSC
39121406

Dimensions

Depth
1 Inch
Height
1-3/4 Inch
Width
1.49 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Mexico
Features
  • Auto-ground clip assures positive ground.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.
  • Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
  • Backed-out tri-drive steel terminal screws.
  • One-piece brass triple-wipe power contacts for lasting retention.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • CSA Listed
  • UL Listed
