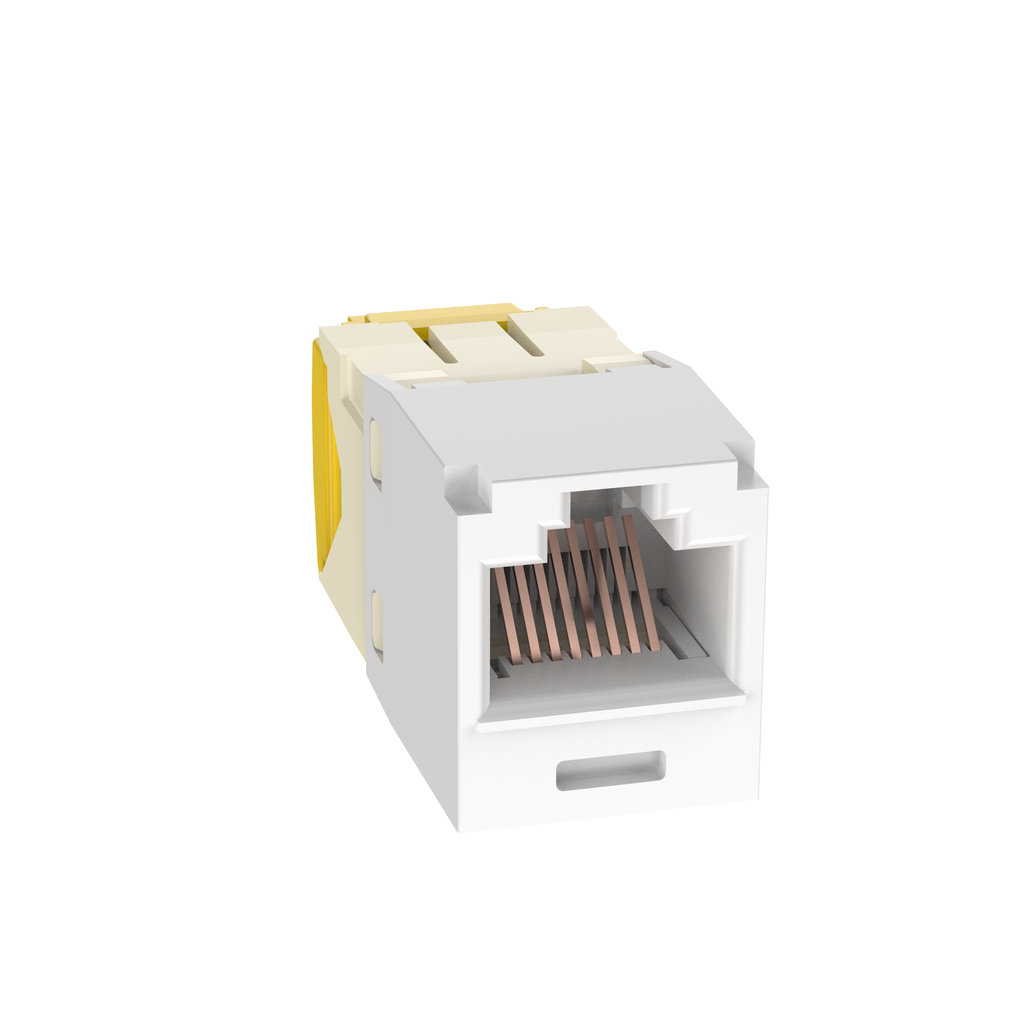

Product image for Panduit CJT5E88TGIW Mini-Com® UTP RJ45
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Panduit CJT5E88TGIW Mini-Com® UTP RJ45

Manufacturer: Panduit Corp | Catalog # CJT5E88TGIW | Cooper Electric Part # 986519
$20.63/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Engineering Drawing

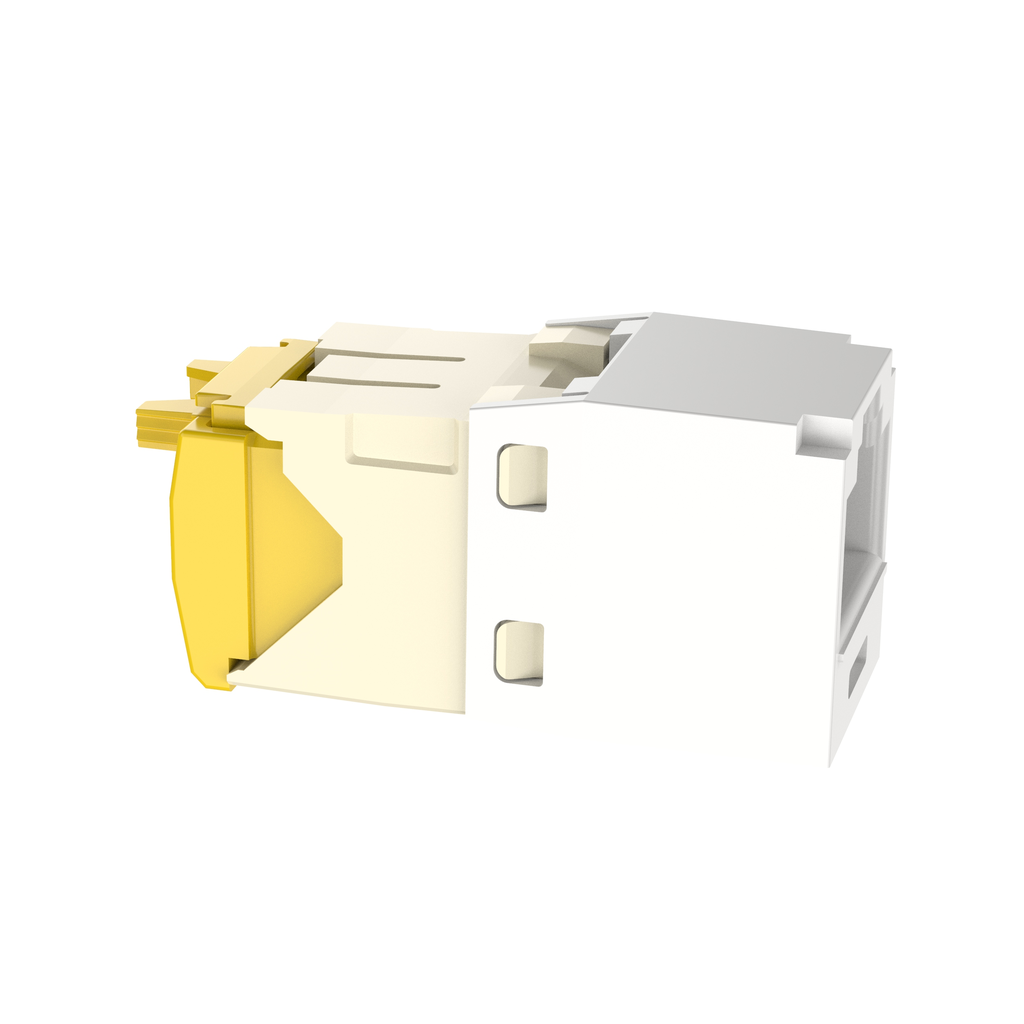

The Mini-Com® Cat 5e UTP RJ45 28 AWG TG Jack Module is designed to terminate 4-pair, 28 AWG solid/stranded and 30 AWG solid twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is off white.

Technical Information

Applications
10BASE-T, 100BASE-T, 1000BASE-T Ethernet, 4/16 Token Ring, Voice/Data Systems, Voice over Internet Protocol (VoIP)
Cable Size
28 AWG Solid/Stranded and 30 AWG Solid
Cable Type
Category 5e
Material
ABS Plastic
Max Operating Temperature
167 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 5e
Standard
CSA,RU Listed,RoHS
Temperature Rating
-10 to 65 degrees C
Type
Unshielded, Universal, 8-Wire

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Mini-Com, TX5e

General Product Info

12-Digit UPC
074983619016
Color
Off White
GTiN
00074983619016
Product UPC
07498361901
Used With
T568A/T568B Cable

Dimensions

Depth
1-1/2 Inch
Height
0.72 Inch
Overall Length
38.1 mm
Width
15.7 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D Standards at Swept Frequencies 1 to 100 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7, Meets IEEE 802.3af and IEEE 802.3at for PoE Applications, UL 1863, CSA Standard C22.2 and RoHS Compliant
