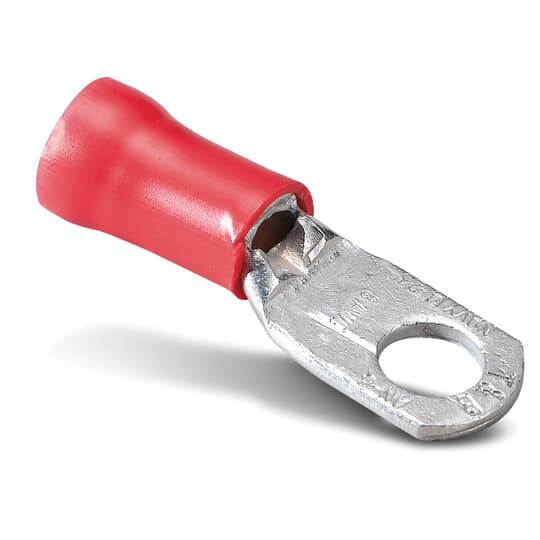

Product image for Thomas & Betts RDV717 8 AWG 1/4 Inch Red Vinyl Insulation Ring Terminal
Image thumbnail 0
Image thumbnail 1
Email

Thomas & Betts RDV717 8 AWG 1/4 Inch Red Vinyl Insulation Ring Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # RDV717 | Cooper Electric Part # 986285
$266.65/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
Vinyl Insulated Large Ring Terminal, Length 1.54 Inches, Width .46 Inches, Maximum Insulation .340, Bolt Hole 1/4 Inch, Wire Range 8, Color Red, Copper, Tin Plated

Technical Information

Applications
For Insulated Varnish and for Round Conductors
Barrel Type
Brazed/Overlapping Seam, Deep Internal Serration
Conductor Size
8 AWG
Insulation Material
Polyamide
Insulation Type
Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
1/4 in
Temperature Rating
105 degrees C
Type
Short Sleeve
Voltage
600 Volt
Wire Size
8 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210915562
Color
Red
Finish
Tin Plated
GTiN
05415022254938
Product UPC
78621091556

Dimensions

Length
1.42 Inch
Width
.46 in
Features
  • Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
Notes
  • Not available on Mylar Tape.
