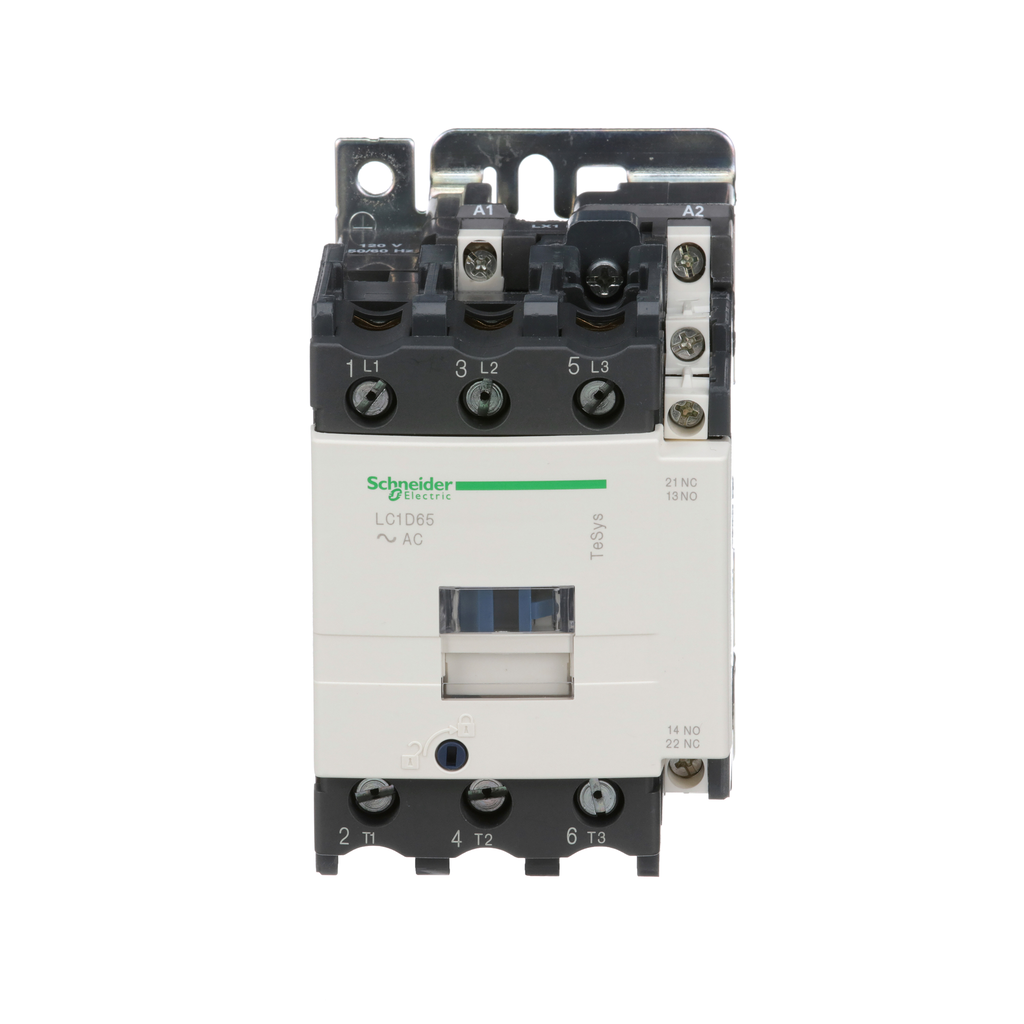

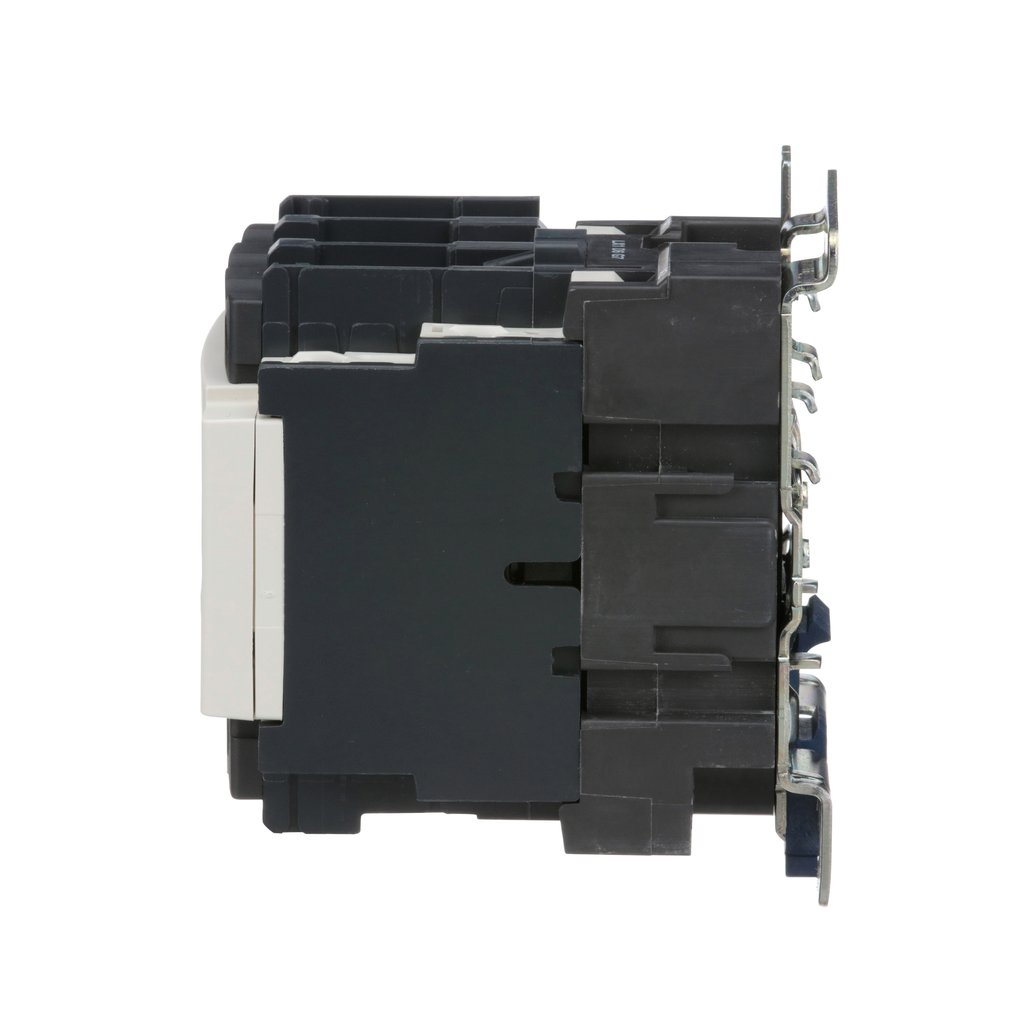

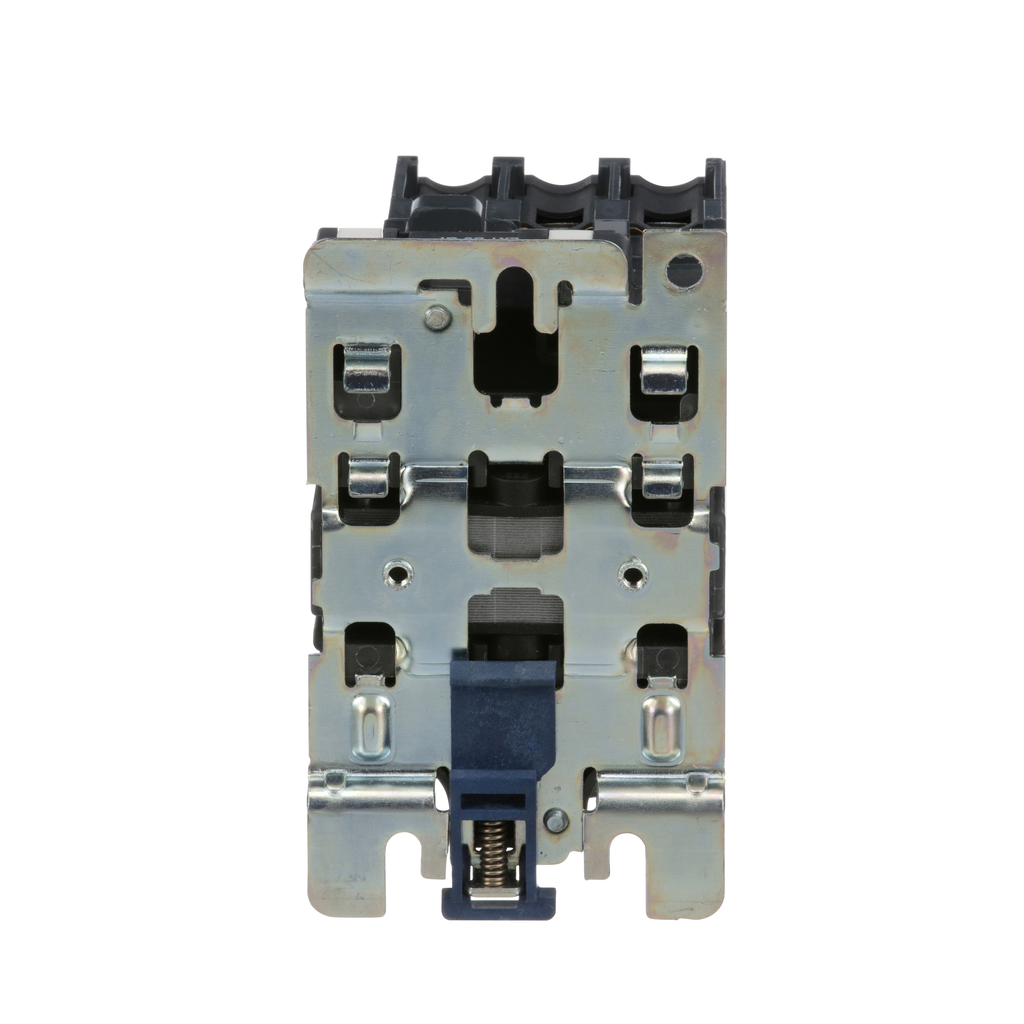

Square D LC1D65G7 600 VAC 65 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Manufacturer: Square-D / Schneider | Catalog # LC1D65G7 | Cooper Electric Part # 98605
$527.47/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for any type of application. They can be used to create motor starters for almost any type of application. TeSys D contactors offer quick simple setup, while maintaining a compact size. Contactors have both Horsepower and Kw motor rating for international acceptance. An extennsive line of accessories makes it easy to meet the requirements of most applications. These contactors have UL, CSA, GOST, RINA, BV, CCC, DNV, GL, LROS certifications. Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).

Technical Information

Applications
MOTOR CONTROL-RESISTIVE LOAD
Coil Voltage
120 V AC 50/60 HZ,POWER CIRCUIT <= 690 V AC 25...400 HZ
Contact Configuration
1 NO + 1 NC,3 NO
Contact Rating
10 A 60 AC CONTROL CIRCUIT-80 A 60 AC POWER CIRCUIT
Impedance
1 MOhm - Ith 80 A 50 Hz For Power Circuit
Net Weight
1.4 kg
Operating Cycles
3600 cyc/h 140 F (60 C)
Operating Temperature
-40-70 Adegrees C AT UC,-5-60 Adegrees C
Range
TeSys
Size
119 MM,127 MM,75 MM
Standard
CSA C22.2 No 14,EN 60947-4-1,EN 60947-5-1,IEC 60947-4-1,IEC 60947-5-1,UL 508
Storage Temperature
-60-80 degrees C
TC Connection
CONTROL CIRCUIT SCREW CLAMP TERMINAL 1 X 1-4 MMASOLID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINAL 2 X 1-25 MMAFLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINAL 2 X 1-35 MMAFLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINAL 2 X 1-35 MMASOLID WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINAL 2 X 1-4 MMASOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINAL 1 X 1-4 MMAFLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINAL 2 X 1-2.5 MMAFLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW TERMINALS-POWER CIRCUIT SCREW CLAMP TERMINAL 2 X 1-25 MMASOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINAL 2 X 1-4 MMAFLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINAL 1 X 1-35 MMAFLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINAL 1 X 1-35 MMASOLID WITHOUT CABLE END
Type
CONTACTOR
Voltage
690 Volt
Wattage
6.4 Watt AC-1

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS,TESYS D

General Product Info

12-Digit UPC
785901436973
GTiN
03389110436976
Product UPC
78590143697
Weight
1.4 kg

Dimensions

Depth
4.69 in
Height
5 in
Warranty Length
18 mth
Width
2.95 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CCC,CSA,DNV,GL,GOST,LROS (pending),RINA,UL
Country of Origin
Czechia
Insulation Resistance
  • > 10 MOhm for control circuit
Heat Dissipation
  • 4-5 W at 50/60 Hz for control circuit
Inrush Power In VA
  • 140-140 VA cos phi 0.75 (at 20 °C)
  • 160-160 VA cos phi 0.75 (at 20 °C)
Connections Terminals
  • control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end
  • control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: so
IE Rated Operational Current
  • 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
  • 80 A (at <60 °C) at <= 440 V AC AC
ITH Conventional Free Air Thermal Current
  • 10 A (at 60 °C) for control circuit
  • 80 A (at 60 °C) for power circuit
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=E0200401-01&p_File_name=E0200401-01.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=E0200401-01&p_File_name=E0200401-01.dxf
  • https://download.schneider-electric.com/files?p_Doc_Ref=LC1D
IP Degree Of Protection
  • IP2X IEC 60529
  • IP2X VDE 0106
Climatic Withstand
  • IACS E10 exposure to damp heat
Power Dissipation Per Pole
  • 6.4 W AC-1
Maximum Operating Rate
  • 3600 cyc/h at 60 °C
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0 kg CO2 eq.
  • 0.03709489667225843
Non Overlap Time
  • 1.5 ms on de-energisation between NC and NO contacts
  • 1.5 ms on energisation between NC and NO contacts
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 2.4684457274736755
  • 2 kg CO2 eq.
Standards
  • EN 60947-5-1
  • CSA C22.2 No 14
  • EN 60947-4-1
  • UL 60947-4-1
  • IEC 60947-4-1
  • IEC 60947-5-1
Operating Time
  • 12...26 ms closing
  • 4...19 ms opening
Control Circuit Type
  • AC 50/60 Hz
Minimum Switching Voltage
  • 17 V for control circuit
UC Control Circuit Voltage
  • 120 V AC 50/60 Hz
Related Products
  • with
  • LADN22
  • LADN11
  • LADN20
  • LAD8N11
  • LADT2
  • LADN40
  • LADN31
  • LADN02
  • LADT0
  • LAD8N20
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 8 kg CO2 eq.
  • 8.200493000872394
UI Rated Insulation Voltage
  • control circuit 600 V CSA
  • control circuit 600 V UL
  • power circuit 600 V CSA
  • power circuit 600 V UL
  • power
Average Impedance
  • 1 mOhm - Ith 80 A 50 Hz for power circuit
Maximum Horse Power Rating
  • 10 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to CSA
  • 10 hp at 230/240 V AC 60 Hz for 1 phase motors conforming t
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • System Integrator
Fire Resistance
  • 850 °C IEC 60695-2-1
Contactor Application
  • motor control
  • resistive load
Motor Power KW
  • 30 kW at 440 V AC 50/60 Hz (AC-3)
  • 11 kW at 400 V AC 50/60 Hz (AC-4)
  • 11 kW at 400 V A
Flame Retardance
  • V1 conforming to UL 94
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 77 kg CO2 eq.
  • 76.62394170546868
Persona Type Ids
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SI
Auxiliaries
  • LADN22
  • LADN11
  • LADN20
  • LAD8N11
  • LADT2
  • LADN40
  • LADN31
  • LADN02
  • LADT0
  • LAD8N20
Terminals Description ISO N 1
  • (A1-A2)CO
  • (13-14)NO
  • (21-22)NC
Safety Reliability Level
  • B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
  • B10d = 1369863 cycles contactor with nominal load EN/ISO 13
Carbon Footprint Of The Distribution Phase A4
  • 1.7614752578811517
  • 2 kg CO2 eq.
Tightening Torque
  • control circuit 1.2 N.m screw clamp terminal flat Ø 6 mm
  • control circuit 1.2 N.m sc
Mechanical Robustness
  • shocks contactor opened 10 Gn for 11 ms)
  • shocks contactor closed 15 Gn for 11 ms)
  • vibratio
Minimum Switching Current
  • 5 mA for control circuit
Operating Altitude
  • 9842.52 ft (3000 m) without derating
Control Circuit Voltage Limits
  • 0.3...0.6 Uc (60-60 °C):drop-out AC 50/60 Hz
  • 0.8...1.1 Uc (60-60 °C):opera
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
IRMS Rated Making Capacity
  • 140 A AC for control circuit conforming to IEC 60947-5-1
  • 1000 A at 440 V for power
Associated Fuse Rating
  • 10 A gG for control circuit conforming to IEC 60947-5-1
  • 125 A gG at <= 690 V coordinat
Hold In Power Consumption In VA
  • 13-13 VA 50 Hz cos phi 0.3 (at 20 °C)
  • 15-15 VA 60 Hz cos phi 0.3 (at 20 °C)
  • 15-15 VA 60 Hz cos phi 0.3
UE Rated Operational Voltage
  • power circuit <= 690 V AC 25...400 Hz
Permissible Ambient Air Temperature Around The Device
  • -5-60 °C
  • -40-70 °C at Uc
Rated Breaking Capacity
  • 1000 A at 440 V for power circuit conforming to IEC 60947
UIMP Rated Impulse Withstand Voltage
  • 8 kV IEC 60947
