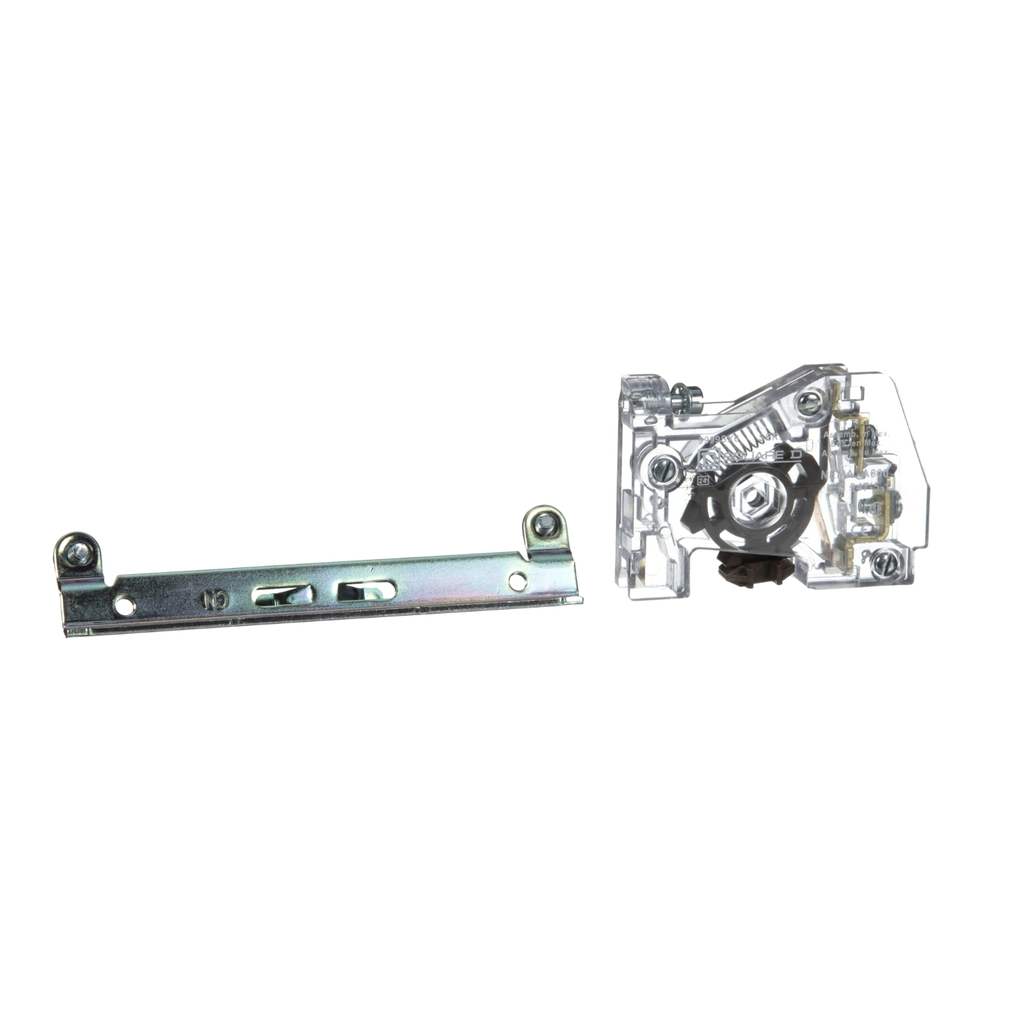

Square D 9999SX6 600 VAC 10 Amp 1NO Size 00 to 7 NEMA Auxiliary Contact

Manufacturer: Square-D / Schneider | Catalog # 9999SX6 | Cooper Electric Part # 98564
$86.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
5 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This external convertible contact is mounted on the side of a contactor or starter. It is often used as part of the electrical control circuit. This auxiliary contact has one normally open contact. Auxiliary contact module has a NEMA A600 contact rating with a maximum voltage rating of 600VAC. Inductive break rating of 6.0 A at 120 VAC. Contact modules are UL component recognized and CSA certified.

Technical Information

Applications
NO AUXILIARY CONTACT KIT
Coil Voltage
<= 600 V AC 50/60 HZ
Contact Configuration
1 NO
Contact Rating
10A
NEMA Size
0,00,1,2,3,4,5,6,7
Net Weight
0.09 kg
Size
4.5 in
Standard
1.2 A 600 V AC Inductive Control Circuit UL 508,1.5 A 480 V AC Inductive Control Circuit UL 508,10 A <= 600 V AC Resistive Control Circuit UL 508,3 A 240 V AC Inductive Control Circuit UL 508,6 A 120 V AC Inductive Control Circuit UL 508
TC Connection
SCREW CLAMP
Type
Auxiliary Contact Module

Manufacturer Information

Brand
Square D
Sub Brand
SCHNEIDER ELECTRIC

General Product Info

12-Digit UPC
785901733300
GTiN
00785901733300
Product UPC
78590173330
Weight
0.09 kg

Dimensions

Depth
4-1/2 Inch
Height
1-1/2 Inch
Warranty Length
18 mth
Width
3 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed,UL Recognized
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
