Hubbell HBL27W47 20 Amp 125 Volt 2-Pole 3-Wire NEMA L5-20R Yellow Locking Connector

Manufacturer: Hubbell Wiring Device | Catalog # HBL27W47 | Cooper Electric Part # 984821
$89.39/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
22 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Product Brochure
Watertight Devices, Twist-Lock® Connector, 20A, 125V, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L5-20R, Yellow

Technical Information

Amperage
20 Amp
Applications
Industrial/Commercial
Body Material
Thermoplastic Elastomer
Connection Type
Screw
Contact Material
Nickel Plated Brass
Current
20 Amp
Material
Thermoplastic
NEMA
L5-20R
Number of Conductors
3
Number of Poles
2-2 Pole
Number of Ports
2
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass

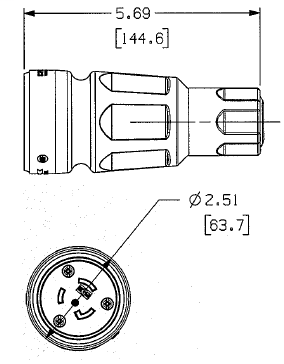

Size
2.51 in x 2.51 in x 5.69 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
TC Connection
Terminal Screws
Temperature Rating
-40 to 60 degrees C Continuous
Type
Industrial Grade
Voltage
125 Volt
Wire Count
3

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585131467
Color
Yellow
Environmental Conditions
Water Tight
GTiN
00783585131467
Product UPC
78358513146

Dimensions

Diameter
2.51 Inch
Height
5.69 Inch
Length
5.69 Inch
Width
2.51 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
