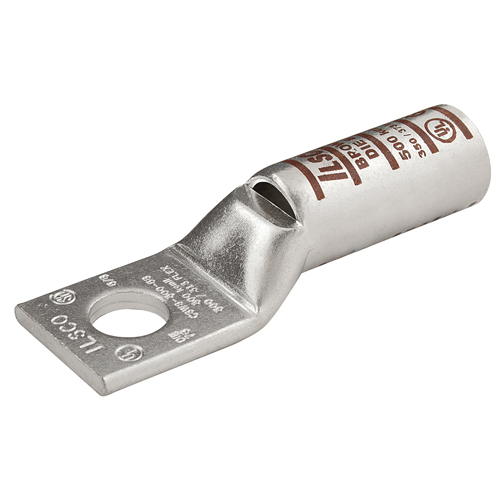

Product image for Ilsco CLWS-1/0-10 SureCrimp® Copper Compression Lug, Conductor Size 1/0, 1 Hole, #10 Bolt Size, Long Barrel, Sight Window, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Email

Ilsco CLWS-1/0-10 SureCrimp® Copper Compression Lug, Conductor Size 1/0, 1 Hole, #10 Bolt Size, Long Barrel, Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CLWS-1/0-10 | Cooper Electric Part # 984369
$25.09/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size #10 in, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 1/0 Str, sight window, Square tang end, flex conductor range 1 G,H,I,K,M,DLO, rated for 35 kV, die color code Pink, primary color Silver, die index I-42,

Technical Information

Applications
Copper Compression Lug
Barrel Length
1.5 in
Barrel Type
Long
Bolt Size
10
Color Coding
Pink
Conductor Material
Copper
Conductor Type
Flex,Stranded
Connection Type
Compression
Direct Burial?
Yes
Material
Copper
Mounting Hole Size
0.219 in
Number of Holes
1 Hole
Size
L:2.418;W:0.738;H:0.55 IN
Strip Length
39.674 mm
Temperature Rating
90 degrees C
Type
CLWS:1 HOLE LONG W/SIGHT
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Surecrimp

General Product Info

12-Digit UPC
783669635591
Color
Silver
GTiN
00783669635591
Product UPC
78366963559
Weight
0.066 lb

Dimensions

Height
0.55 Inch
Inside Diameter
0.39 in
Length
2.418 Inch
Outside Diameter
0.515 in
Width
0.738 in
