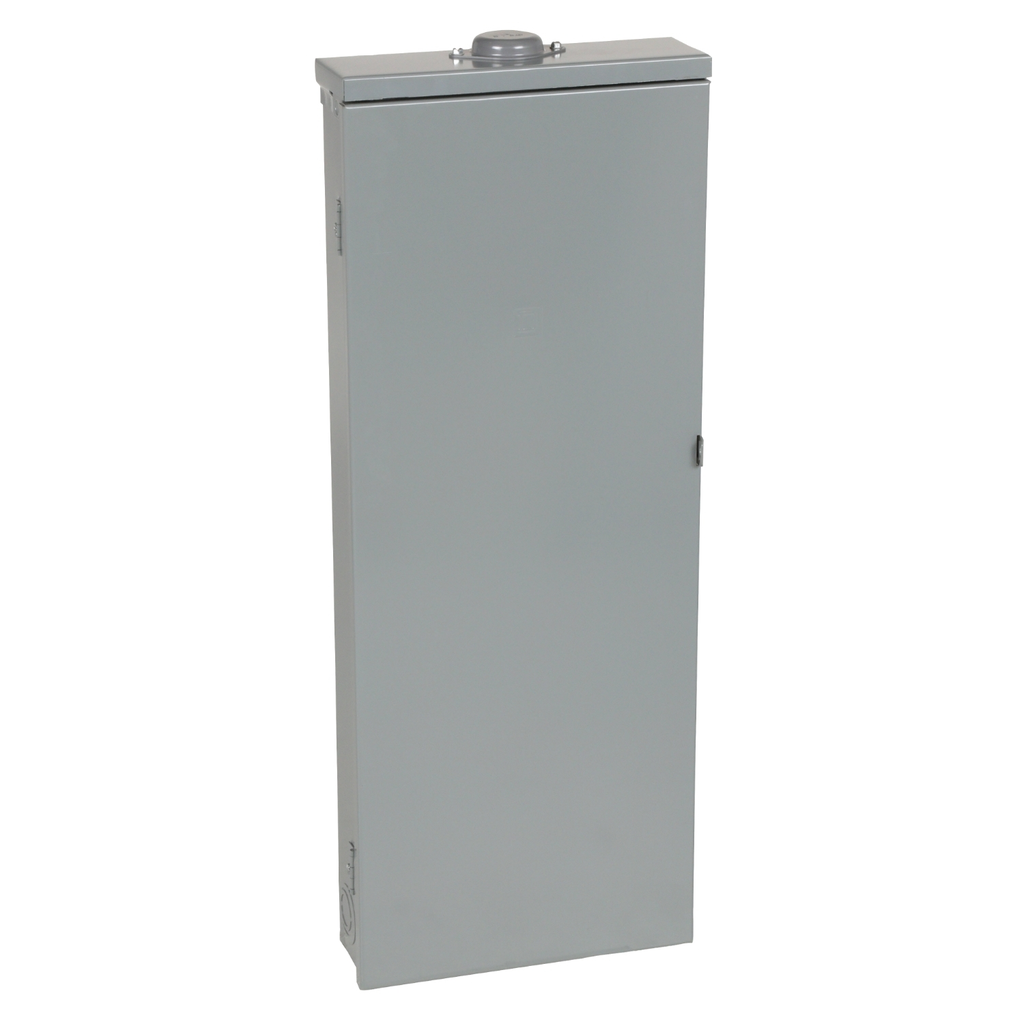

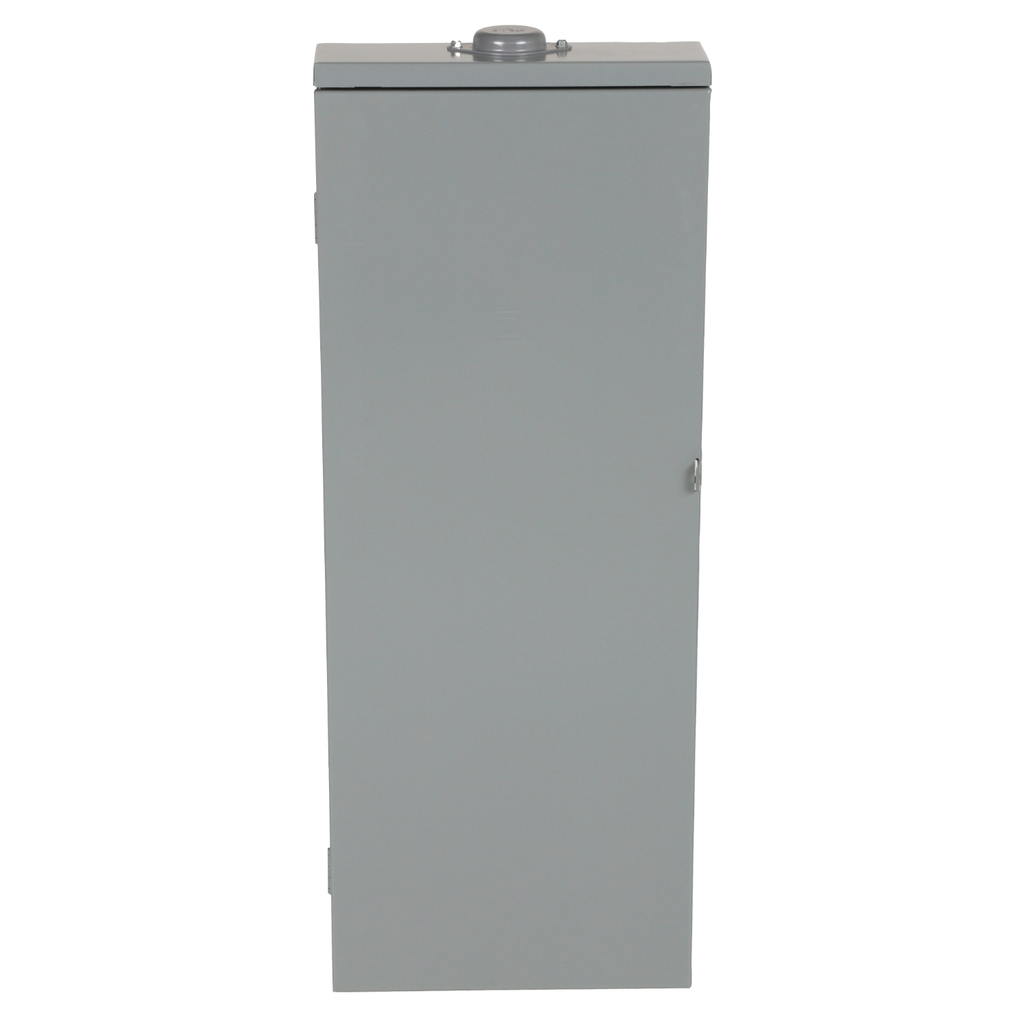

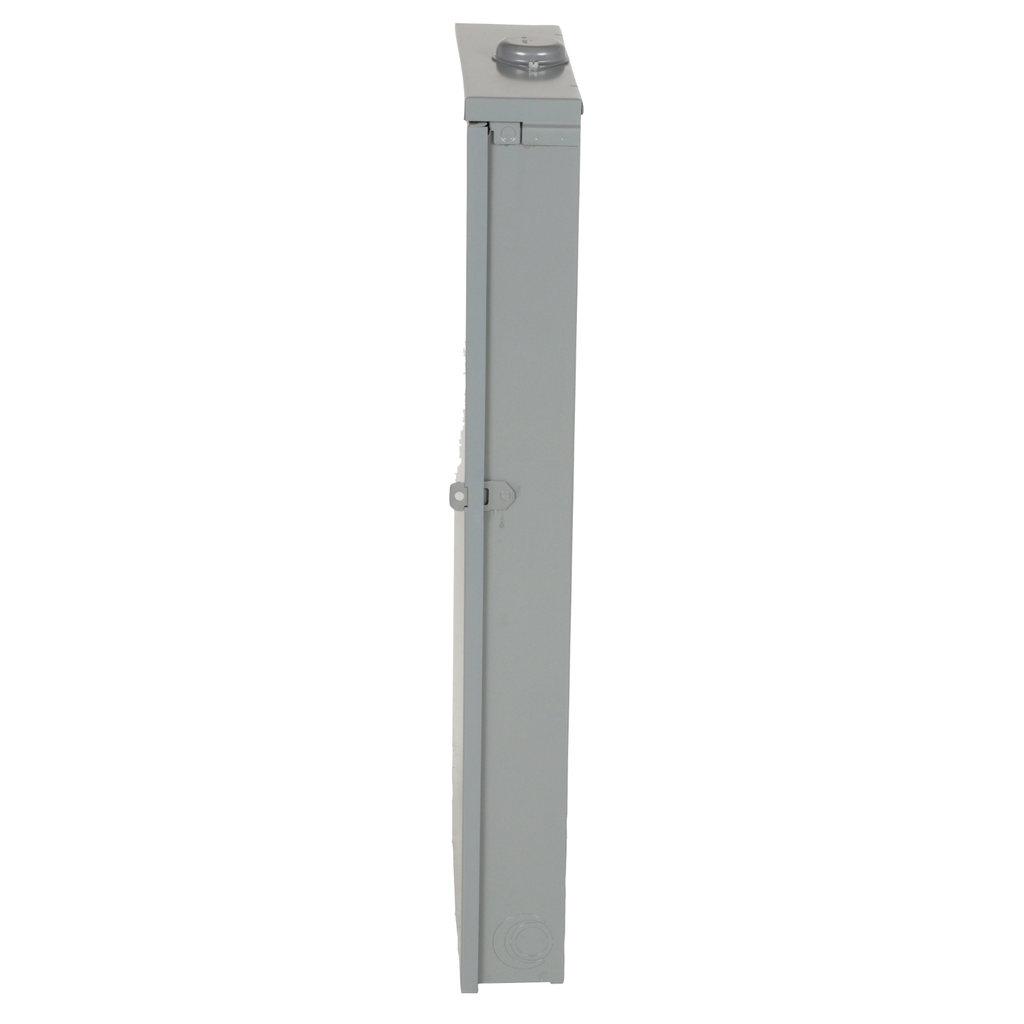

Square D QO142M200PRB 200A 120/240V 1Ø3W Convertible Main Breaker Load Center, Plug-On Neutral, 42 Spaces / 52 Circuits, NEMA-3R, Gray

Manufacturer: Square-D / Schneider | Catalog # QO142M200PRB | Cooper Electric Part # 984343
$1,659.00/ea
ea
Log in or register to view your price, purchase history, and more!
Type 1 Indoor Type 3R Rainproof
Single Three
Main Breaker Main Lug
0

Not Available for Pickup at Ocean Opens Tuesday 7:00am ET
3 available

For Delivery

Order by Tuesday 5:00pm ET for delivery Wednesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 Product Brochure
QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Load Center contains a main breaker and is rated at 200 A and 1 phase. This system provides 42 spaces in a NEMA 3R enclosure and is hub ready. Load center is plug on neutral ready.

Technical Information

Amperage
200 Amp
Cable Size
AWG 4...250 KCMIL ALUMINIUM/COPPER
Conductor Size
4 AWG-250 kcmil
Cover Type
Surface Cover
Current
200 Amp
Enclosure
3R
Enclosure Material
Steel
Enclosure Rating
3R
Enclosure Type
Weatherproof enclosure
Interrupt Rating
22 kAIC
Line Rated Current
200 A
Material
Tin Plated Copper: Busbar
NEMA Size
3R
Number of Circuits
52
Number of Phases
1,3 Phase
Number of Spaces
42
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
22 kA
Short Circuit Current Ratng
22 kA
Surface Finish
Baked Enamel Gray
Type
LOAD CENTER
Wire Size
AWG 4...250 kcmil aluminium/copper

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901285083
Finish
Baked Enamel
GTiN
00785901285083
Product UPC
78590128508

Dimensions

Height
965 mm
Width
375 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
