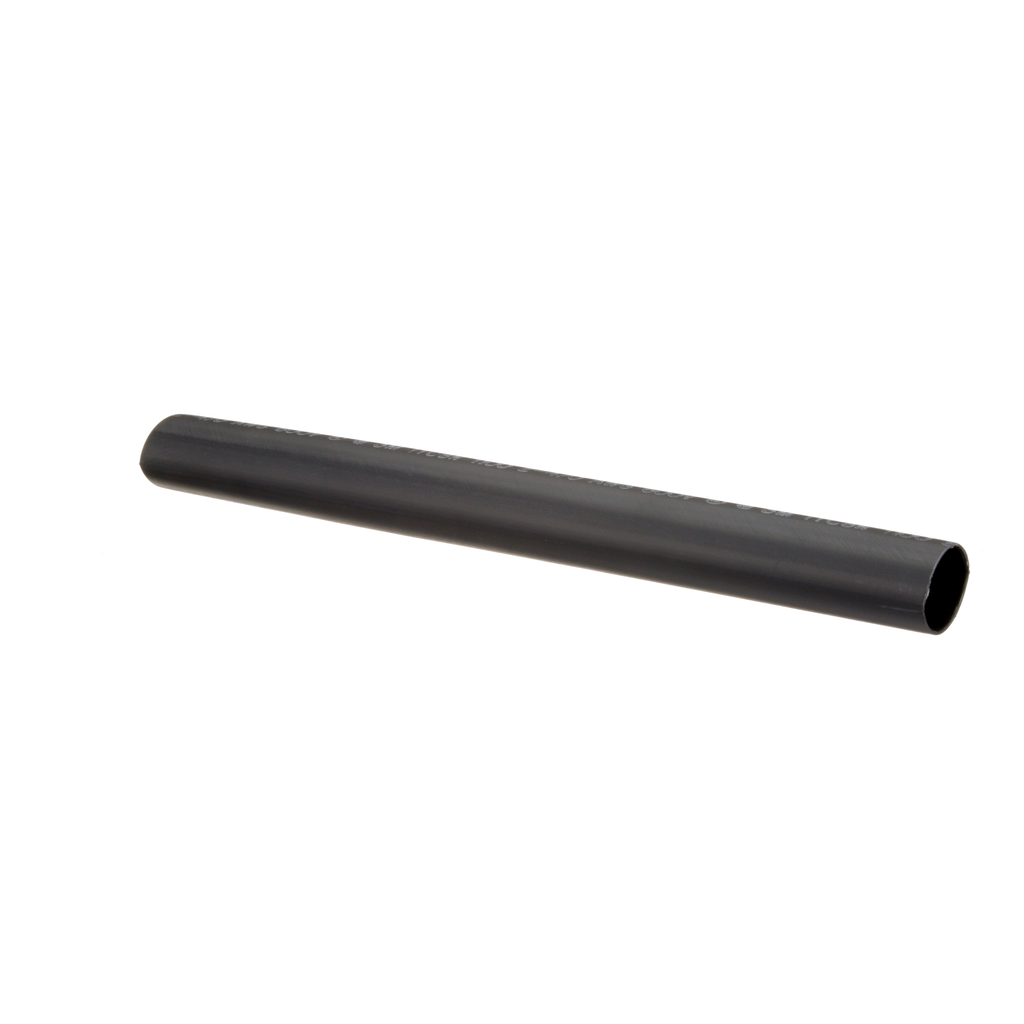

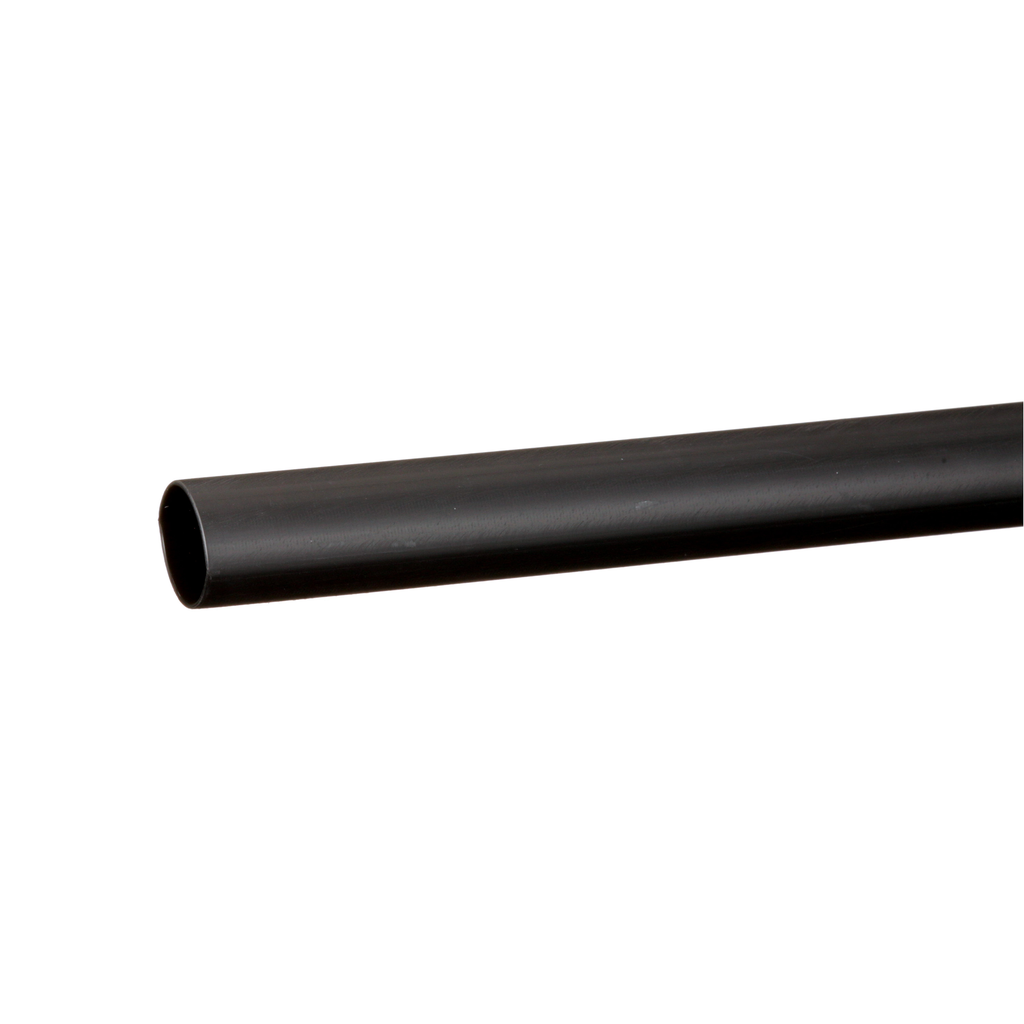

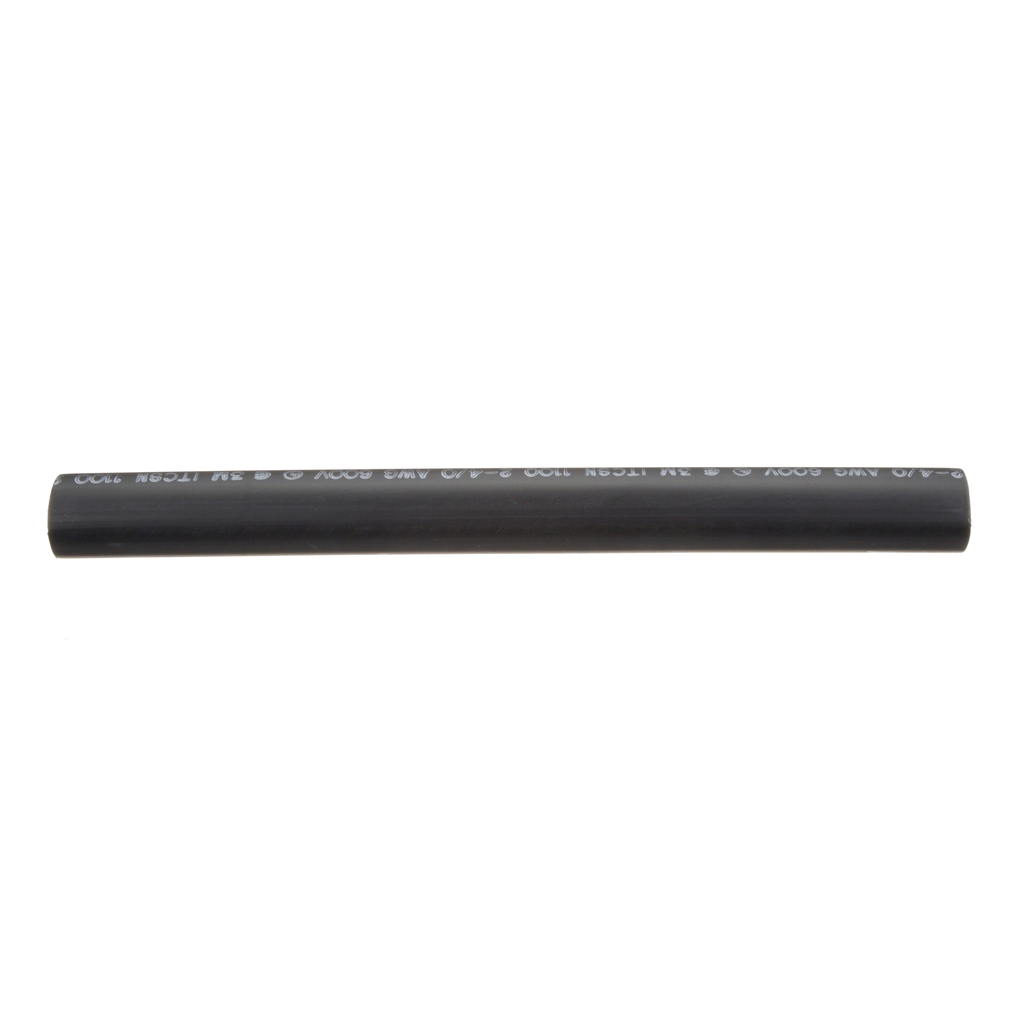

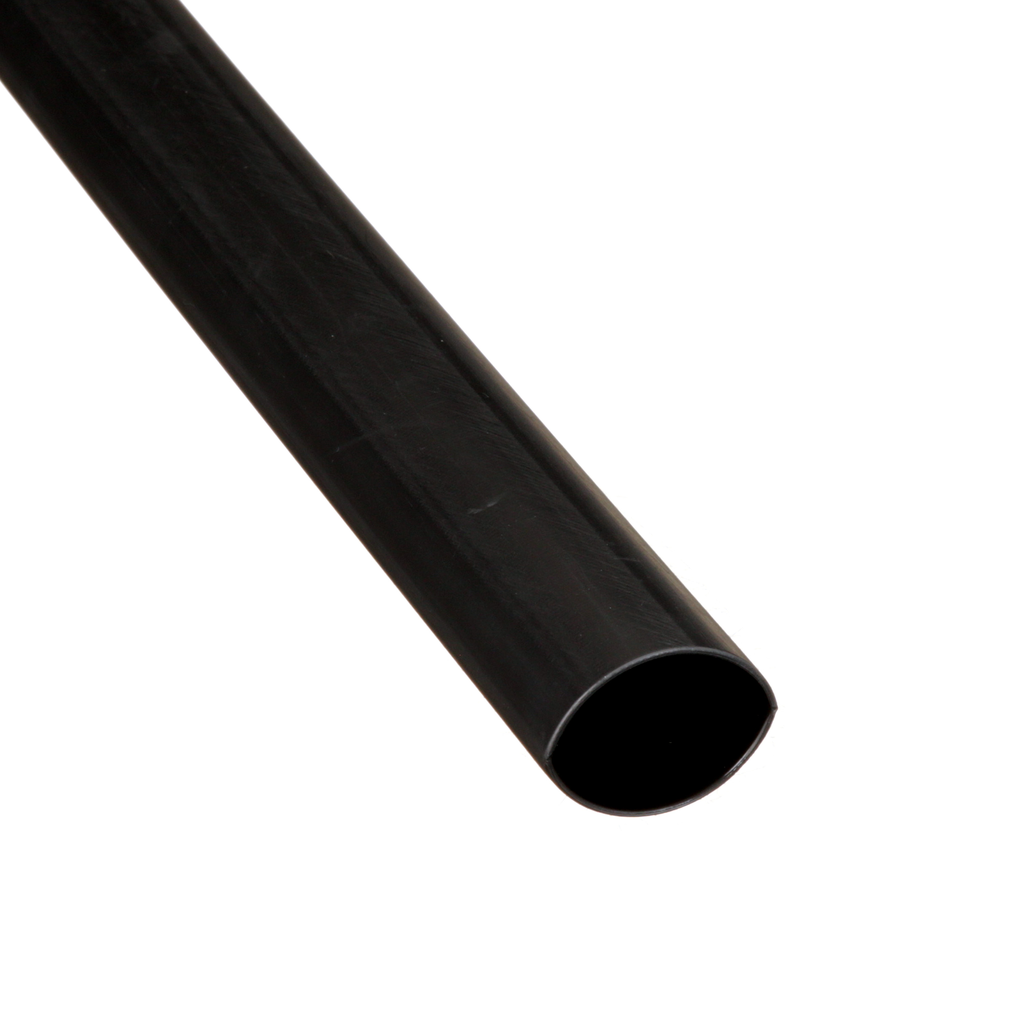

3M ITCSN-1100-12"-Black-10 (7000132372) Heat Shrink Heavy-Wall Cable Sleeve, 2-4/0 AWG, Expanded/Recovered I.D. 1.10"/0.37", 12" Length, Black (10pcs/Case)

Manufacturer: 3M | Catalog # 7000132372 | Cooper Electric Part # 983634
$21.05/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Technical Information

Dielectric Strength
500 V/mil
Material
Adhesive-lined Polyolefin
Max Operating Temperature
100.0 degrees C
Operating Temperature
-55 degrees C
Shrink Ratio
3 to 1
Splice Type
Heat Shrink
Tensile Strength
2400 lb/in
Type
Heavy Wall
Voltage
1 kV

Packaging

Units Per Case
10

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007088929
Color
Black
GTiN
00054007088929
Product Type
Splice
Product UPC
05400708892

Dimensions

Length
12 Inch
Overall Length
12.0 in

Certifications and Compliance

Country of Origin
USA
Features

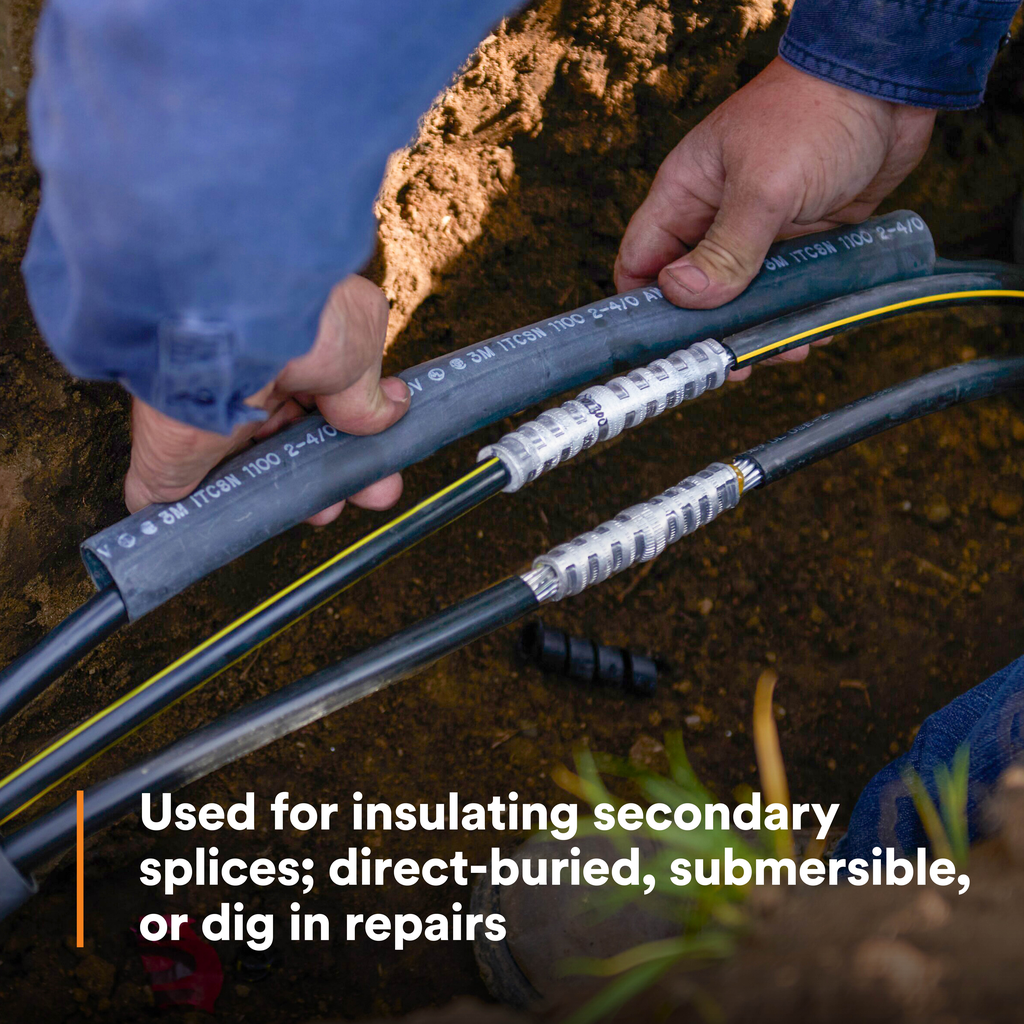

  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67230 °F (55110 °C)
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
