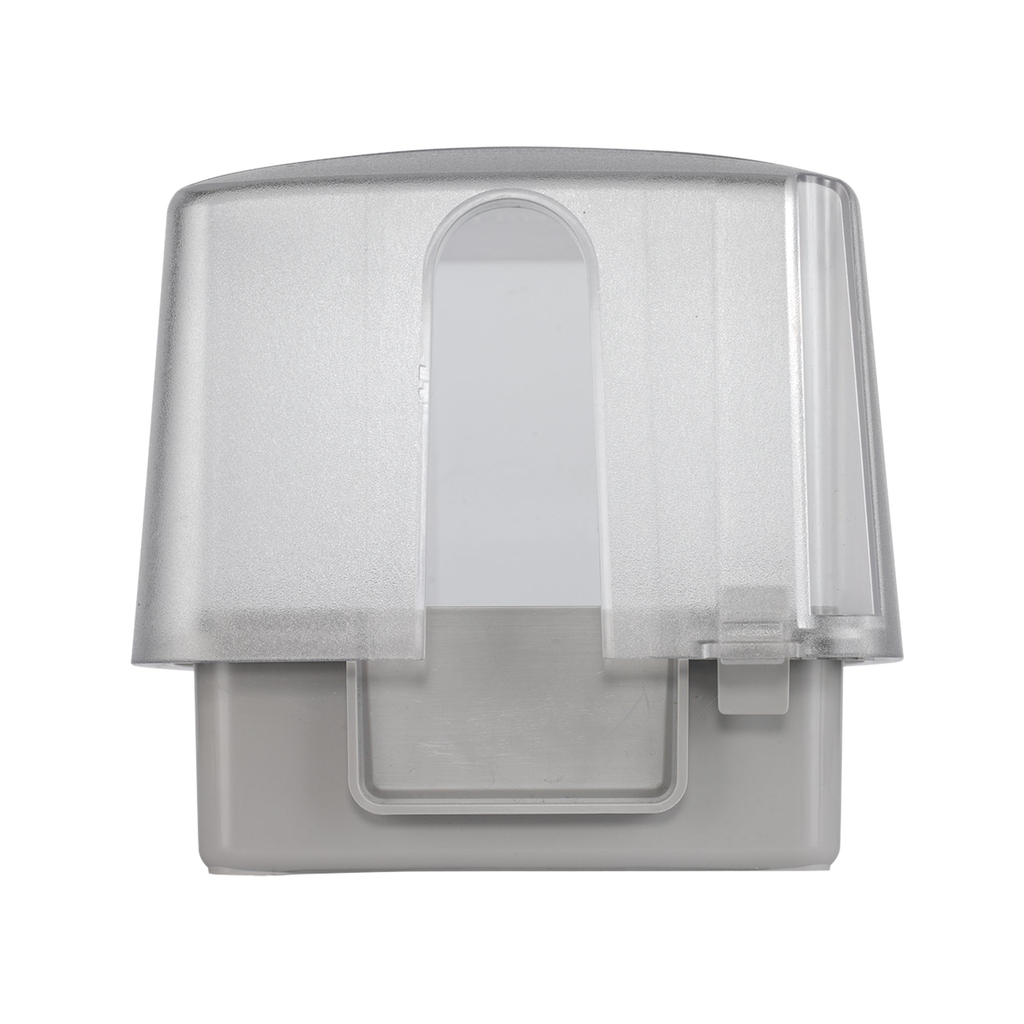

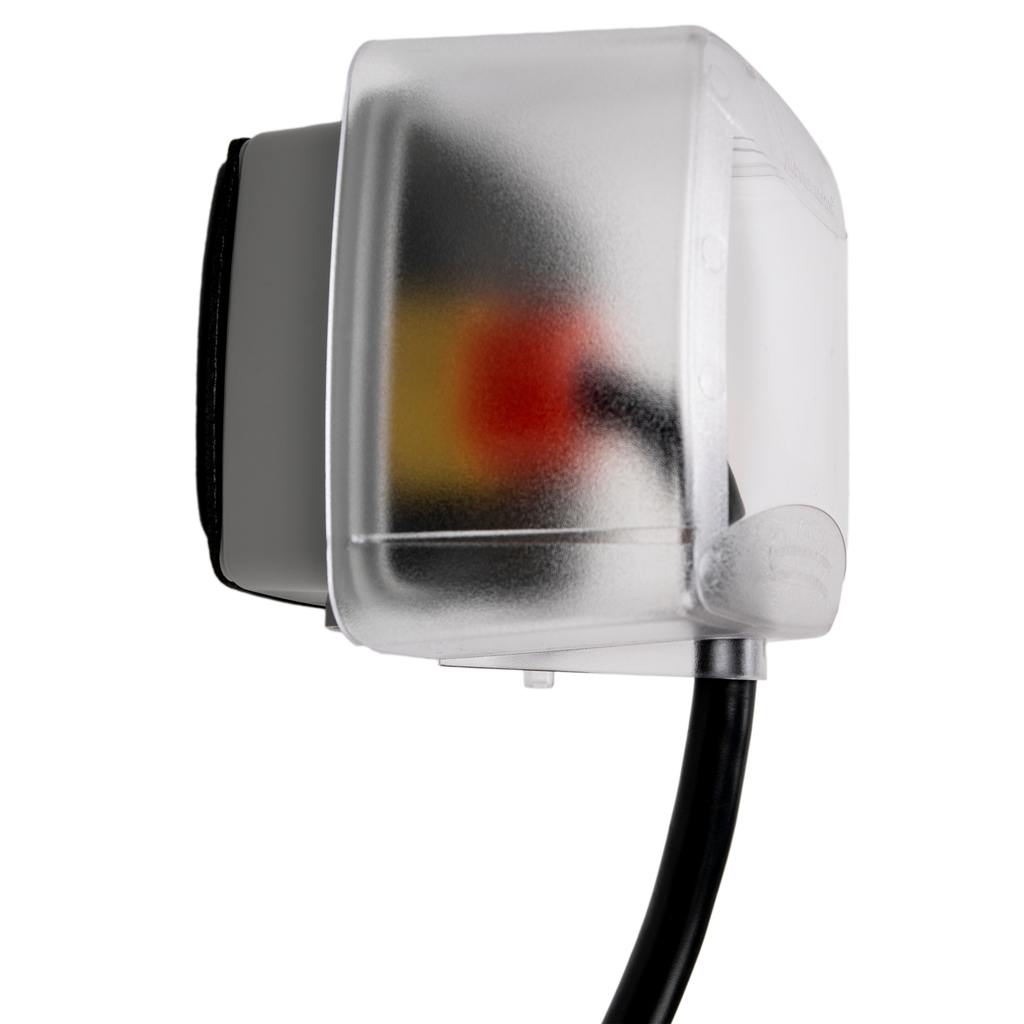

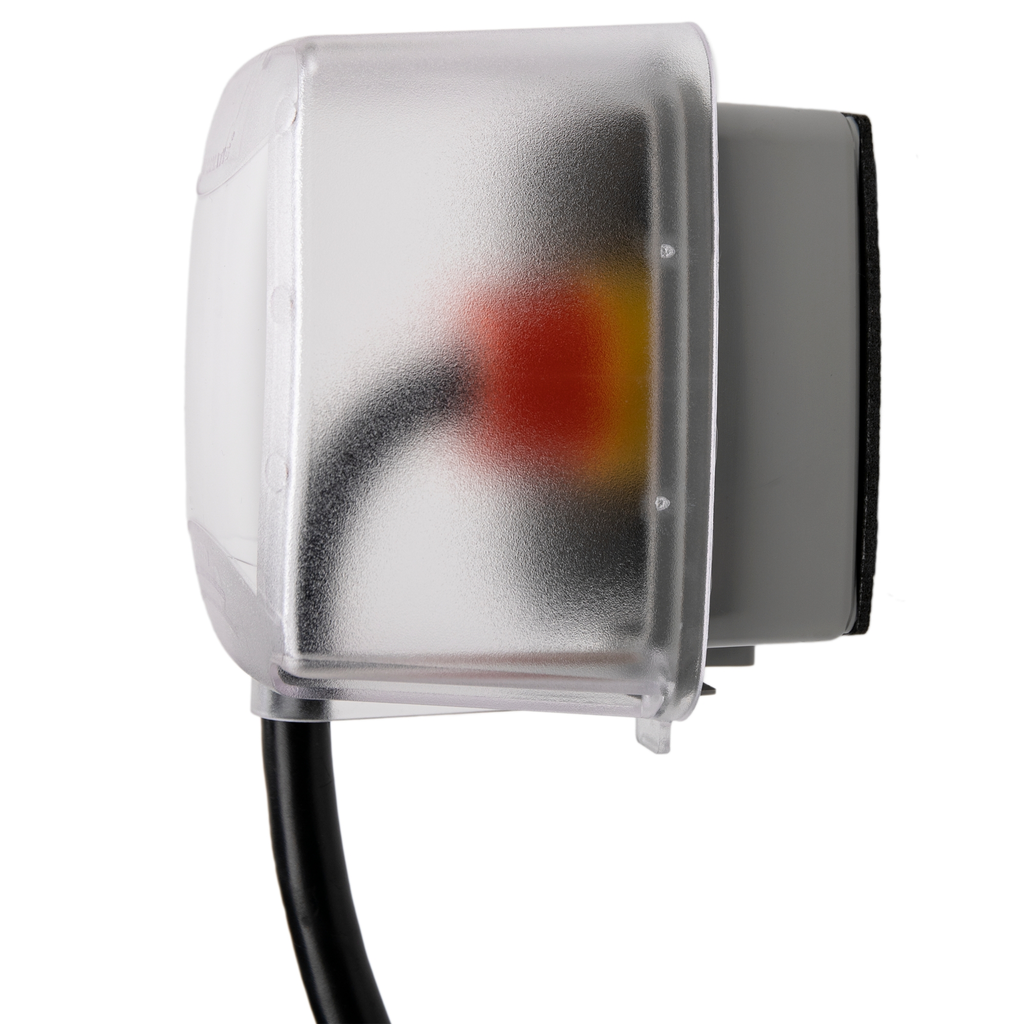

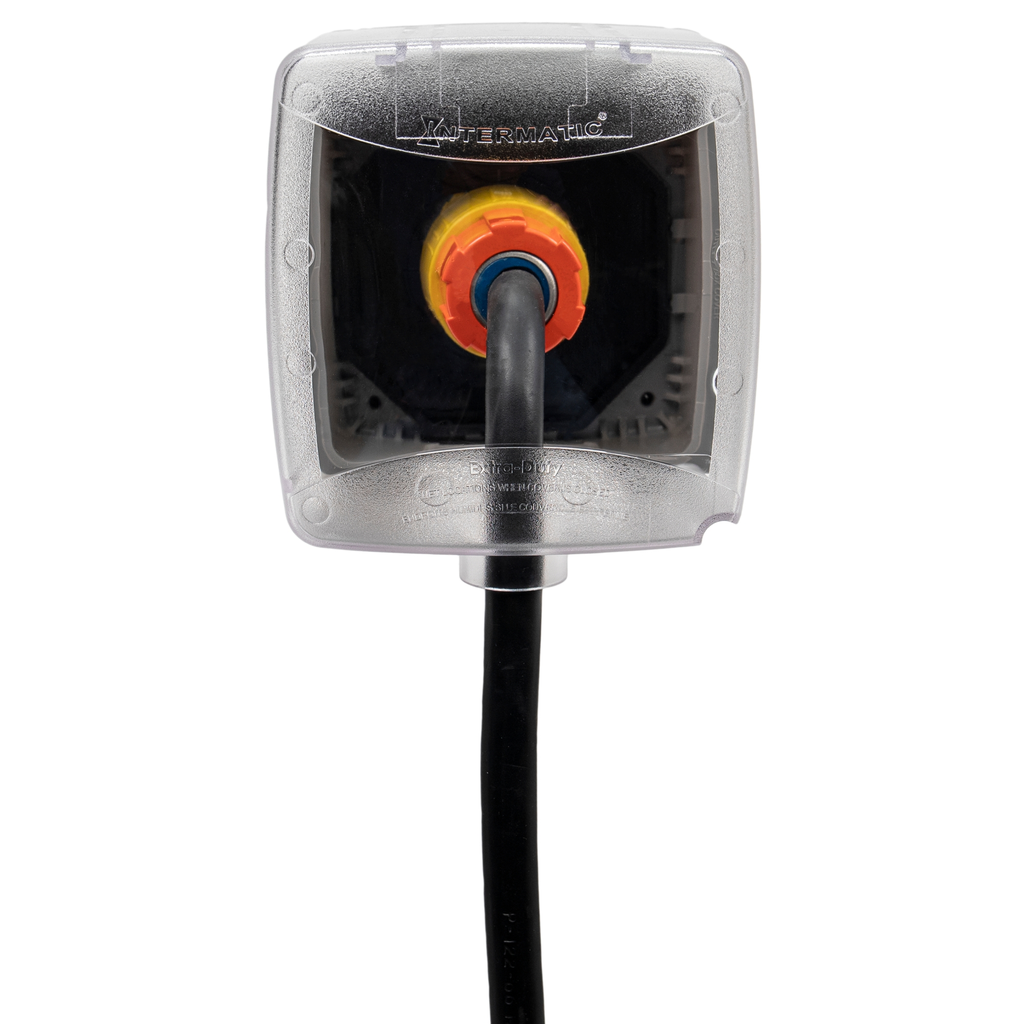

Product image for Intermatic WP5500C 2-Gang Vertical Hinge 4-3/4 Inch Extra Duty Clear Plastic Receptacle Cover with Guard Insert
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Intermatic WP5500C 2-Gang Vertical Hinge 4-3/4 Inch Extra Duty Clear Plastic Receptacle Cover with Guard Insert

Manufacturer: Intermatic, Inc | Catalog # WP5500C | Cooper Electric Part # 983156
$85.75/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
13 available

For Delivery

Order by 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
Product Spec Sheet
Plastic In-Use Weatherproof Covers are extra-duty rated and easy to install. Covers come with an adhered gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications.

Technical Information

Applications
Receptacle Protection
Cable Size
(1) 6 Gauge (3 Wire Ground)
Gang Type
Double
Insulation Material
Neoprene Gasket
Material
Polycarbonate
Mounting Configuration
Mounting screws
Mounting Type
Vertical
Number of Gangs
2 Gang
Number of Outlets
2
Size
4.75 DEPTH X 6.5 HEIGHT X 6.5 WIDTH IN, 120.65 DEPTH X 165.10 HEIGHT X 165.10 WIDTH MM
Standard
2014 NEC Article 406.9(B)(1) Compliant,CEC Rule 26-702,CSA,UL Certified For Type 3R,UL Listed
Type
Home Improvement & Commercial Supplies - Wall Plates & Covers

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275145399
Color
Clear,Gray
Construction
Heavy-Duty Polycarbonate
Construction Features
Heavy-Duty Polycarbonate
Finish
Plastic
GTiN
00078275145399
Product Category
Home Improvement & Commercial Supplies - Wall Plates & Covers
Product Type
Home Improvement & Commercial Supplies - Wall Plates & Covers
Product UPC
07827514539
Shape
Rectangle
Used With
Commercial, home

Dimensions

Depth
4-3/4 Inch
Diameter
6 mm
Height
6 Inch
Length
121 mm
Warranty Length
1 yr
Width
6.625 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
  • CEC Article 26-702 Compliant
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1?8\" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
  • Lockable hasp: All models accept up to 1?4\" (6 mm) dia. shank
  • Impact rated: 12 lb. impact test to ensure cover remains intact
  • Reinforced hinge pin designed to exceed 40 lb. hinge hang/stress test
  • Warranty: 1-year limited
