Hubbell HBL26W75 20 Amp 250 Volt 3-Pole 4-Wire NEMA L15-20P Locking Plug

Manufacturer: Hubbell Wiring Device | Catalog # HBL26W75 | Cooper Electric Part # 982423
$75.07/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
Watertight Devices, Twist-Lock® Plug, 20A, 3 Phase 250V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L15-20P, Yellow

Technical Information

Amperage
20 Amp
Applications
Industrial/Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S Min, 10/3 S, 10/4 S, 10/5 S Max AWG
Contact Material
Nickel Plated Brass
Cord Size
3/8 - 7/8 in
Cord Type
SJ, S
Current
20 Amp
Dielectric Strength
2500 VAC
Material
Thermoplastic
NEMA
L15-20P
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass

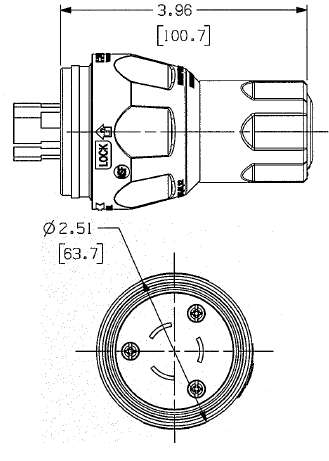

Size
2.51 in x 2.51 in x 3.96 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
TC Connection
Screw Terminals
Temperature Rating
-40 to 60 degrees C Continuous
Type
Industrial Grade
Voltage
250 Volt
Wire Count
4
Wire Size
Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585131634
Color
Yellow
Environmental Conditions
Watertight
GTiN
00783585131634
Product UPC
78358513163

Dimensions

Height
3.96 Inch
Length
2.51 Inch
Width
2.51 in

Certifications and Compliance

Country of Origin
USA
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
