3M 7000132381 3M™ Heat Shrink Heavy

Manufacturer: 3M | Catalog # 7000132381 | Cooper Electric Part # 9808
$158.82/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
8 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Product Brochure

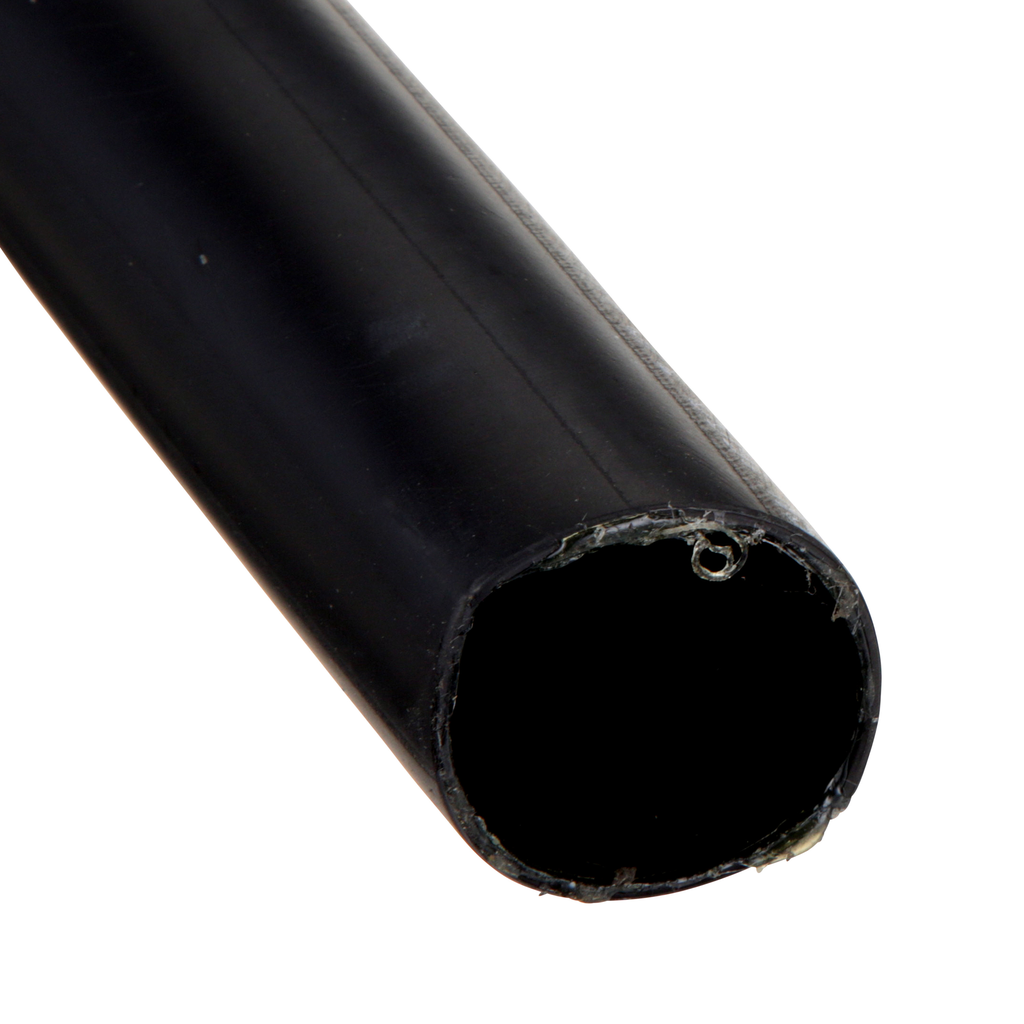

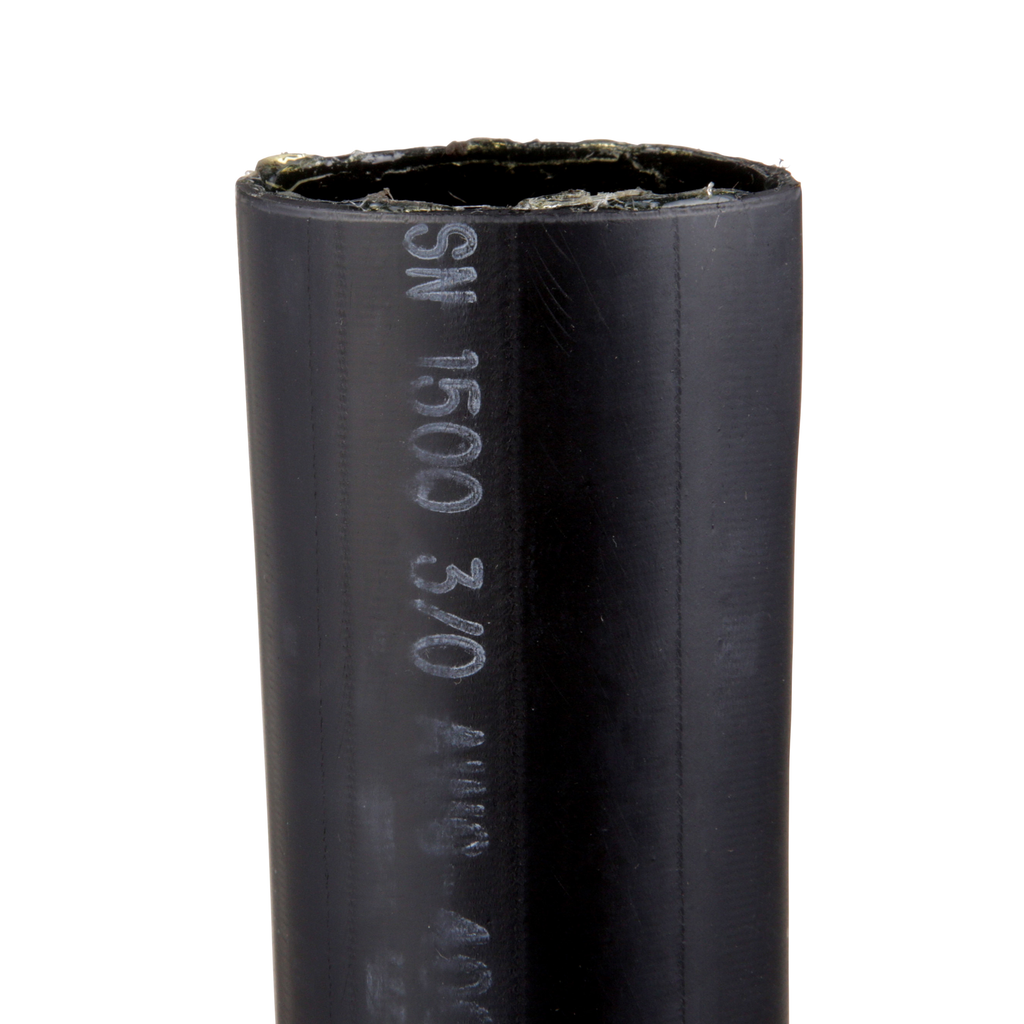

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN are designed to provide reliable performance for electrical splices, connections and terminations, as well as mechanical and environmental protection. Fabricated from cross-linked polyolefin, this tubing is highly split-resistant and fast-shrinking to provide rapid installation.

Technical Information

Applications
For Indoor, Outdoor or Overhead use
Dielectric Strength
500 V/mil
Material
Polyolefin
Max Operating Temperature
100.0 degrees C
Operating Temperature
-55 degrees C
Shrink Ratio
3 to 1
Splice Type
Heat Shrink
Temperature Rating
-67 to 230 F
Tensile Strength
2400 lb/in
Type
Heavy Wall
Voltage
1 kV
Wire Size
000 AWG-400 kcmil

Packaging

Units Per Case
5

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007089056
Color
Black
GTiN
00054007089056
Product Form
Roll,Sleeve
Product Type
Sleeve
Product UPC
05400708905

Dimensions

Length
48 Inch
Overall Length
48.0 in

Certifications and Compliance

Country of Origin
USA
Features
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available

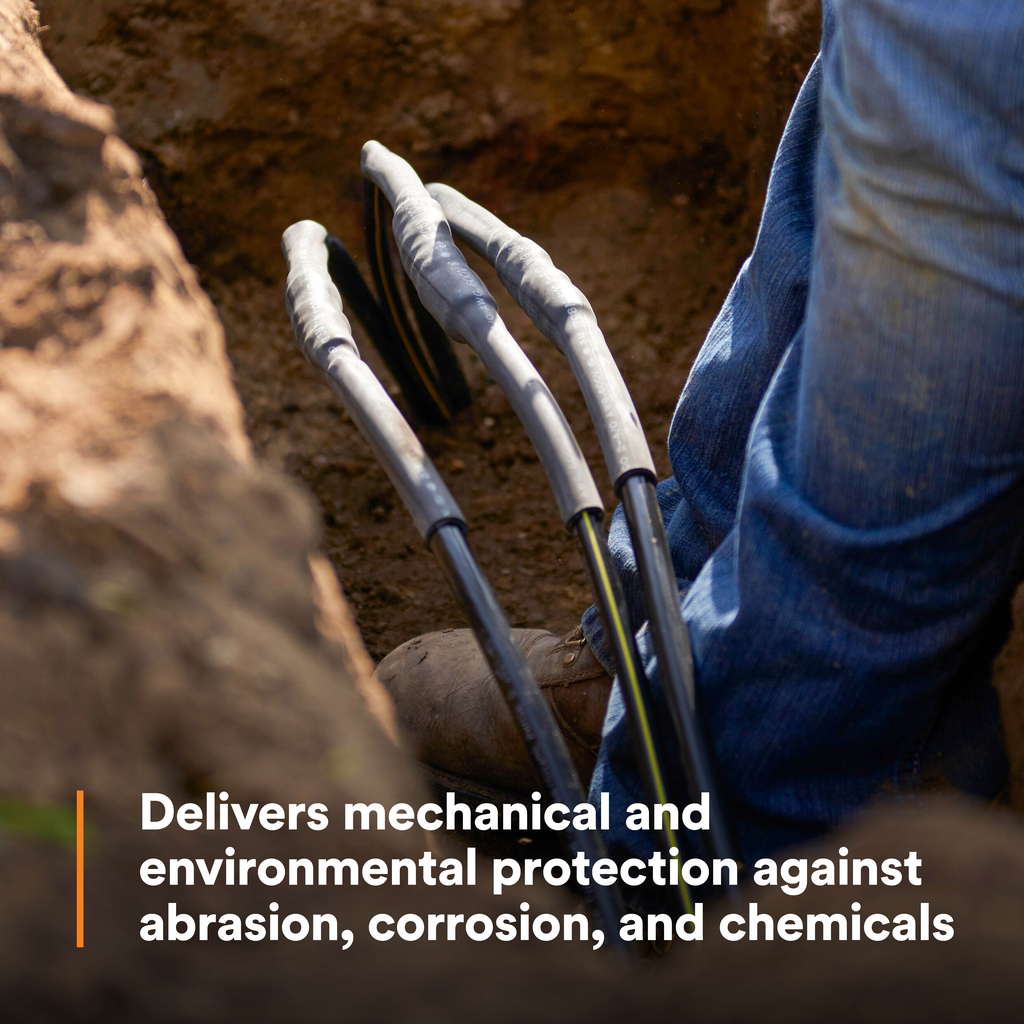

  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67230 °F (55110 °C)
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
