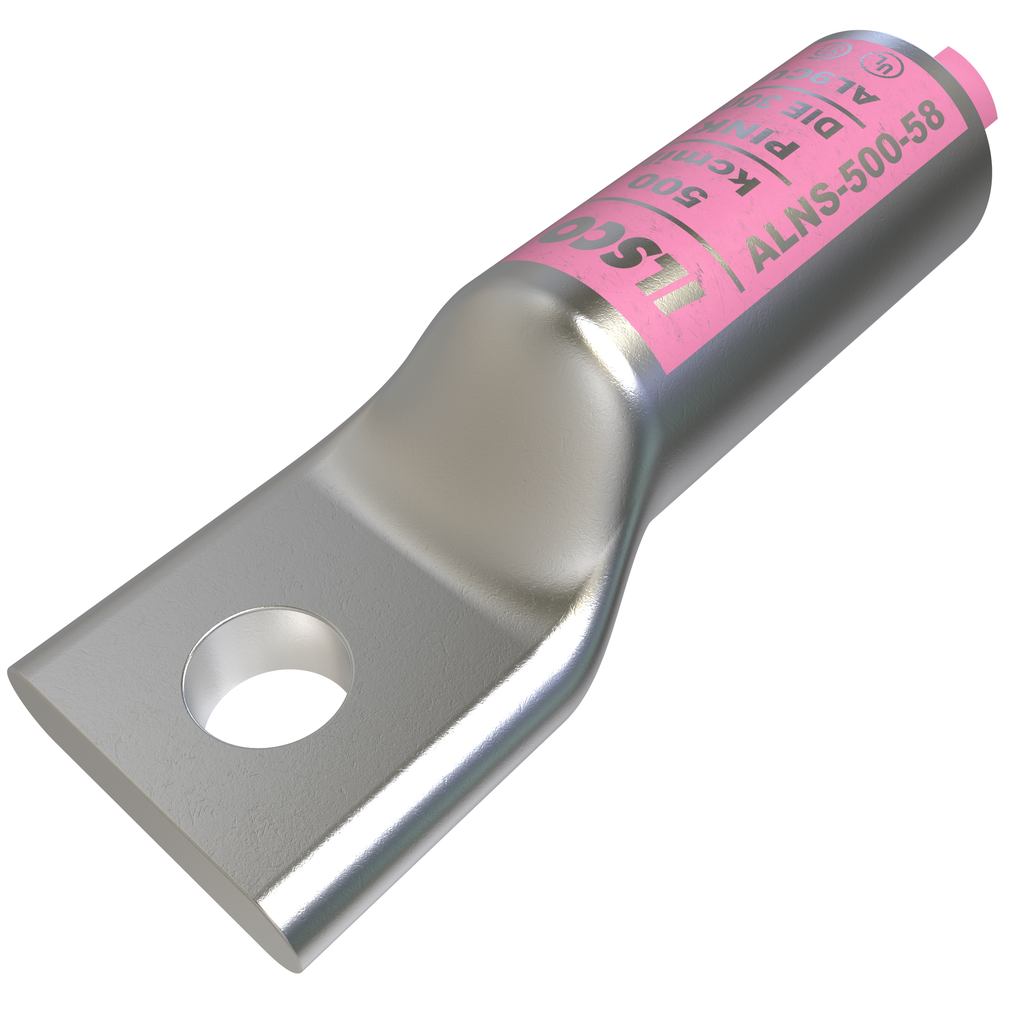

Ilsco ALNS-500-58 SureCrimp® Aluminum Compression Lug, Conductor Size 500, 1 Hole, 5/8in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # ALNS-500-58 | Cooper Electric Part # 978999
$73.88/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Wednesday 7:00am ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size 5/8 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 500 kcmil, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Pink, primary color Silver, die index 300,

Technical Information

Applications
Aluminum Compression Lug
Barrel Length
2.565 in
Barrel Type
Long
Color Coding
Pink
Conductor Material
Aluminum,Copper
Conductor Size
500 MCM
Conductor Type
Stranded
Connection Type
Compression
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.656 in
Number of Holes
1 Hole
Size
L:4.93;W:1.802;H:1.36 IN
Standard
CSA,E2186,UL
Strip Length
66.738 mm
Temperature Rating
90 degrees C
Type
ALNS:1 HOLE LONG BARREL
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
SureCrimp®

General Product Info

12-Digit UPC
783669687743
Color
Silver
GTiN
00783669687743
Product UPC
78366968774
Weight
0.343 lb

Dimensions

Height
1.36 Inch
Inside Diameter
0.854 in
Length
4.93 Inch
Outside Diameter
1.315 in
Width
1.802 in
