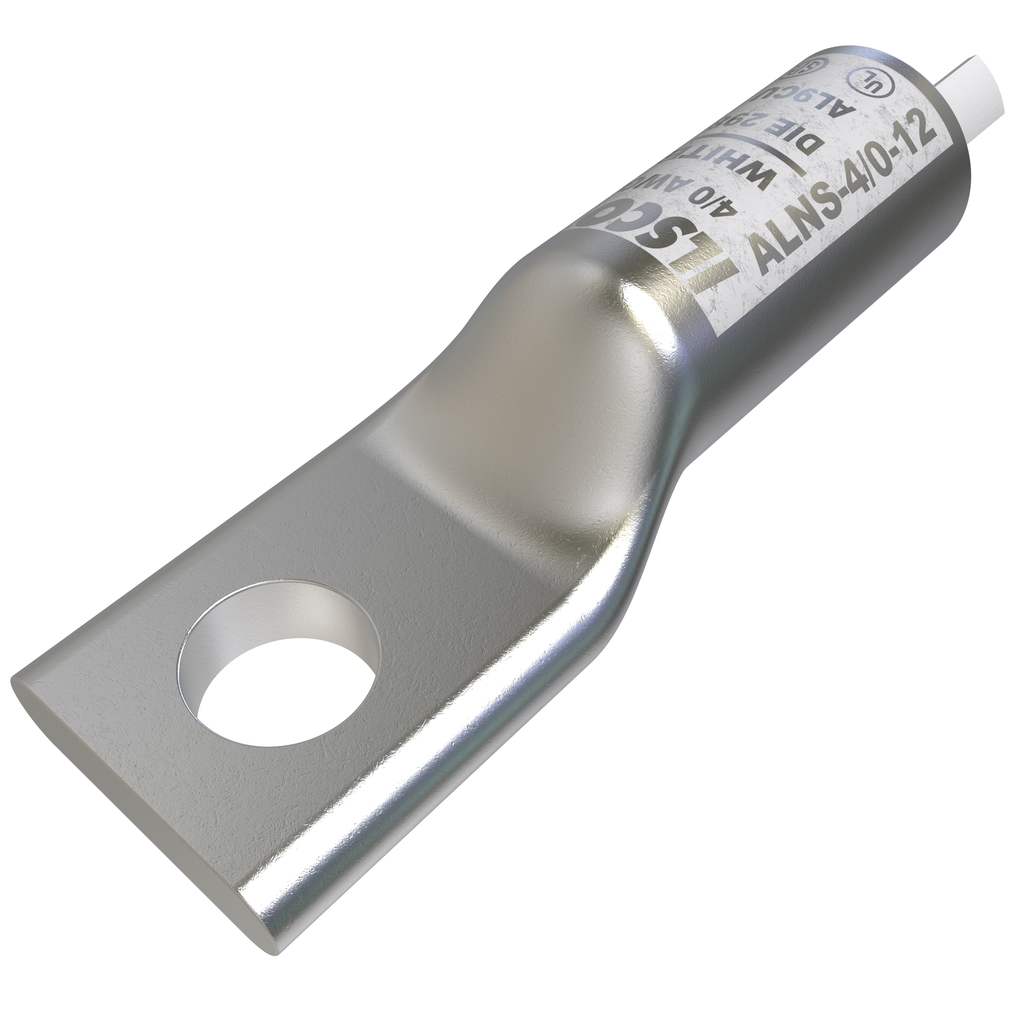

Product image for Ilsco ALNS-4/0-12 SureCrimp® Aluminum Compression Lug, Conductor Size 4/0, 1 Hole, 1/2in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Email

Ilsco ALNS-4/0-12 SureCrimp® Aluminum Compression Lug, Conductor Size 4/0, 1 Hole, 1/2in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # ALNS-4/0-12 | Cooper Electric Part # 978996
$32.34/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Wednesday 7:00am ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size 1/2 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 4/0 Str, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code White, primary color Silver, die index 298,

Technical Information

Applications
Aluminum Compression Lug
Barrel Length
1.535 in
Barrel Type
Long, Chamfered Entry
Color Coding
White
Conductor Material
Aluminum,Copper
Conductor Size
4/0 AWG
Conductor Type
Stranded
Connection Type
Compression
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.562 in
Number of Holes
1 Hole
Size
L:3.48;W:1.17;H:0.894 IN
Standard
CSA,E2186,UL
Strip Length
40.576 mm
Stud Size
3/8 in
Temperature Rating
90 degrees C
Type
ALNS:1 HOLE LONG BARREL
Voltage
35 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ilsco
Sub Brand
SureCrimp®

General Product Info

12-Digit UPC
783669687354
Color
Silver
Finish
Electro Tin Plated
GTiN
00783669687354
Product UPC
78366968735
Weight
0.078 lb

Dimensions

Height
0.894 Inch
Inside Diameter
0.553 in
Length
3.48 Inch
Outside Diameter
0.854 in
Overall Length
3.48 in
Width
1.17 in
