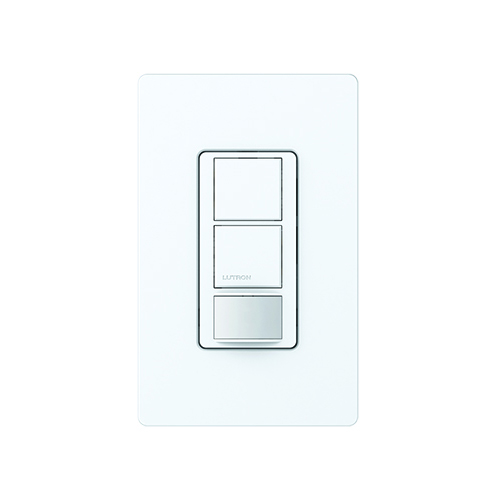

Product image for LUT UMS-OPS6-DDV-WH MAESTRO 2-CIR P
Email

LUT UMS-OPS6-DDV-WH MAESTRO 2-CIR P

Manufacturer: Lutron | Catalog # UMS-OPS6-DDV-WH | Cooper Electric Part # 978612
$106.64/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet
Made in America Dual circuit, 6A lighting per circuit, 3A fan, XCT PIR vacancy sensor, single pole/3-way/multi-location, 120-277V, neutral optional

Technical Information

Amperage
6 Amp
Applications
Lighting
Body Material
Plastic
Enclosure Material
Plastic
Mounting Type
Wallbox
Operating Temperature
32 To 104 degrees F
Power Supply
120 V
Voltage
120-277 Volt

Manufacturer Information

Brand
Maestro

General Product Info

12-Digit UPC
784276075060
Color
White
Finish
Gloss
GTiN
00784276075060
Product UPC
78427607506

Certifications and Compliance

Buy American Compliant
Y
Features
  • Combines two switches with an in-wall, passive infrared (PIR) occupancy or partial-on sensor
  • The sensor is intended for either control of two circuits or bi-level control of two circuits, as required by certain energy codes
  • Passive infrared sensor with exclusive Lutron XCT Technology for minor motion detection
  • 180 degree sensor field-of-view
  • Tamper-resistant PIR lens
  • U[ tp 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
  • Smart Ambient Light Detection (ALD) mode uses adaptive algorithm: Sensor learns the user's preferred light level over time
  • Can be set to auto-on/auto-off or manual-on/auto-off
  • Adjustable timeout for each circuit (1, 5, 15, or 30 minutes)
  • Sensitivity adjustment (high/low)
  • Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent.
Standards and Certifications
  • Buy American Compliant
  • UL
  • cUL
  • NOM
  • Title 20/24
