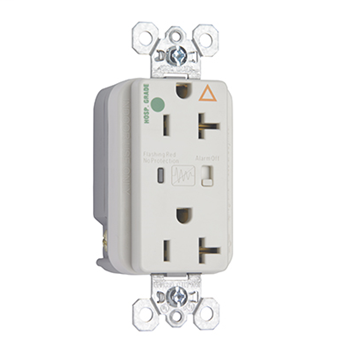

P&S IG8300-LASP IG TVSS HG RECP 20A 125V ALARM IV

Manufacturer: Pass & Seymour / Legrand | Catalog # IG8300-LASP | Cooper Electric Part # 978388
$123.50/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Hospital Grade Isolated Ground Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Back & Side Wire, 20amp 125volt, Light Almond.

Technical Information

Amperage
20 Amp
Grade
Hospital
Type
Duplex
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007265767
Color
Light Almond
GTiN
00785007265767
Product UPC
78500726576
UNSPSC
39121406

Dimensions

Depth
1-1/4 Inch
Height
3-3/4 Inch
Width
1.70 in

Certifications and Compliance

Country of Origin
China
Features
  • Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
  • LED Indication: Steady green = protected, Flashing re = not protected, OFF = no power to unit
  • Audible alarm alert of MOV damage. Alarm able to be turned On/Off.
  • Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
  • Triple-wipe, copper-alloy contacts for superior, more dependable connection.
  • External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors. External pressure plate feature allows two conductors to be terminated by a single screw.
  • Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection. Protection response time in less than one nanosecond.
  • Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
  • For covering patents, see www.legrand.us/patents.
Eco-Benefit Information
  • RoHS Compliant
