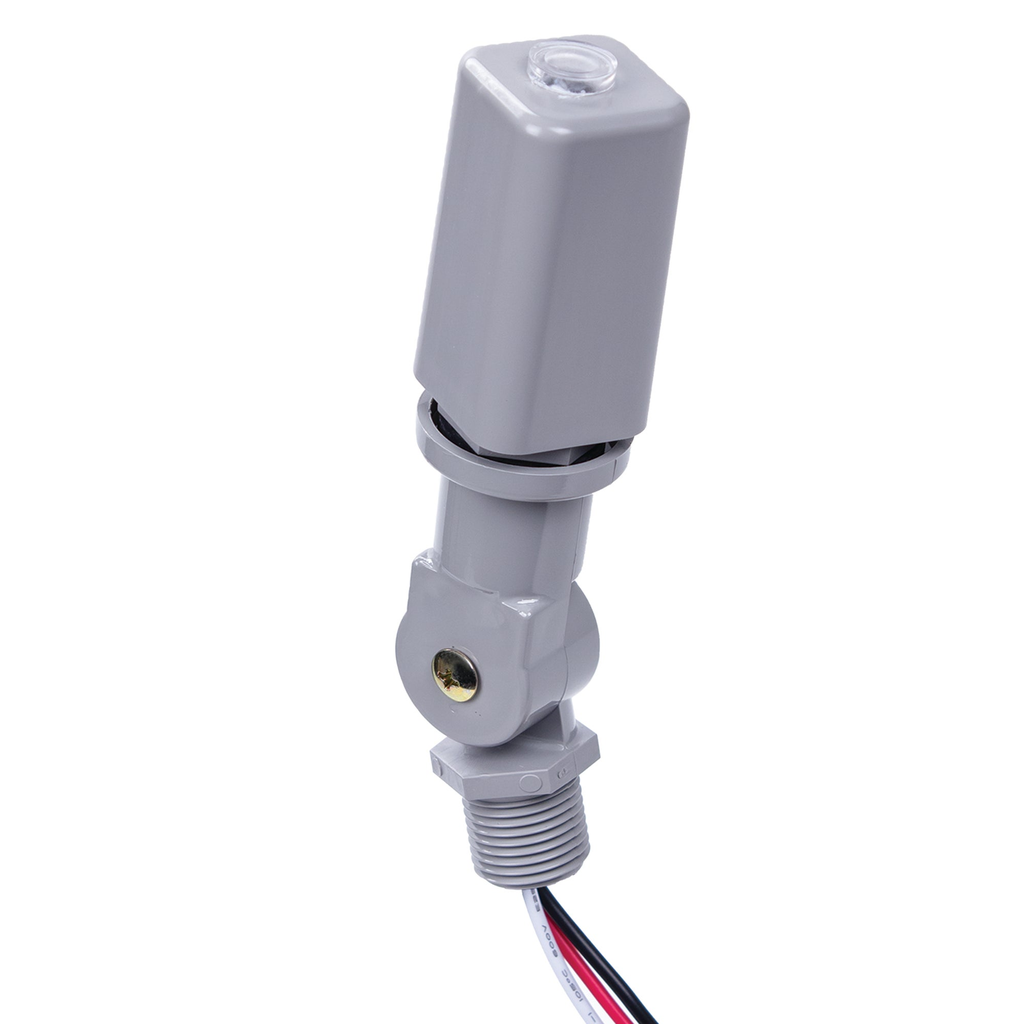

Product image for Intermatic EK4736S 105 to 305 VAC 50/60 Hz 1000 W Top Lens Stem and Swivel Mount Photocontrol

Email

Intermatic EK4736S 105 to 305 VAC 50/60 Hz 1000 W Top Lens Stem and Swivel Mount Photocontrol

Manufacturer: Intermatic, Inc | Catalog # EK4736S | Cooper Electric Part # 977782

$54.76/ea
ea
Log in or register to view your price, purchase history, and more!
3 available

For Pick Up

at Ocean Closes 6:00pm ET
195 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
These electronic photocontrols permanently install on outdoor electrical boxes, in-wall boxes, or outdoor lighting fixtures. Ideal for LED and induction fixtures with long-life expectations

Technical Information

Amperage
6000 mA
Applications
Dusk to Dawn Lighting Control
Connection Type
Color Coded Lead
Dielectric Strength
2500 VAC
Enclosure
NEMA 410
Frequency
50/60 Hz
Material
Plastic
Max Operating Temperature
158 degrees F
Max Wire Size
18 AWG
Min Operating Temperature
-40 degrees C
Mounting Configuration
Stem and Swivel Mount
Mounting Type
Stem And Swivel Fixed Mount
Operating Cycles
10k
Operating Temperature
-40 - 158 degrees F, -40 - 70 degrees C
Power Consumption
<0.5 WTT @ 277 VAC
Sensor Type
Electronic photocontrol
Size
1.3 WIDTH X 1.24 DEPTH X 2.25 HEIGHT IN, 33.02 WIDTH X 31.49 DEPTH X 57.15 HEIGHT MM
Standard
ANSI C136.24 Compliant,CSA Certified To Canadian,Title CA 20 Listed,UL Certified To US
TC Connection
Wire Lead
Temperature Rating
-40 to 70 degrees C
Type
Cuboid, Electronic, Top Lens
Voltage
277 Volt
Wire Length
152 mm

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275146310
Color
Gray
Finish
Plastic
GTiN
00078275146310
Product Category
Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges
Product Type
Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges
Product UPC
07827514631
Used With
Lighting, pathways
Weight
0.28 lb

Dimensions

Depth
1-1/4 Inch
Height
5-5/8 Inch
Warranty Length
8 yr
Width
1.313 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Mexico
Features
  • Non-drift silicon light sensor with IR filter
  • DC relay with zero-crossing circuitry for extended life
  • Conformal coated PCB
  • 15-year design life
  • Exceeds 10,000 ON/OFF switching cycles
  • Fail ON mode
  • Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC)
  • 255 J MOV surge protection element
  • 1?2\"-14 NPSM threaded stem fits standard outlet boxes and wall packs for a minimum installation hole size of 7/8 inch diameter
  • #18 AWG wire leads
