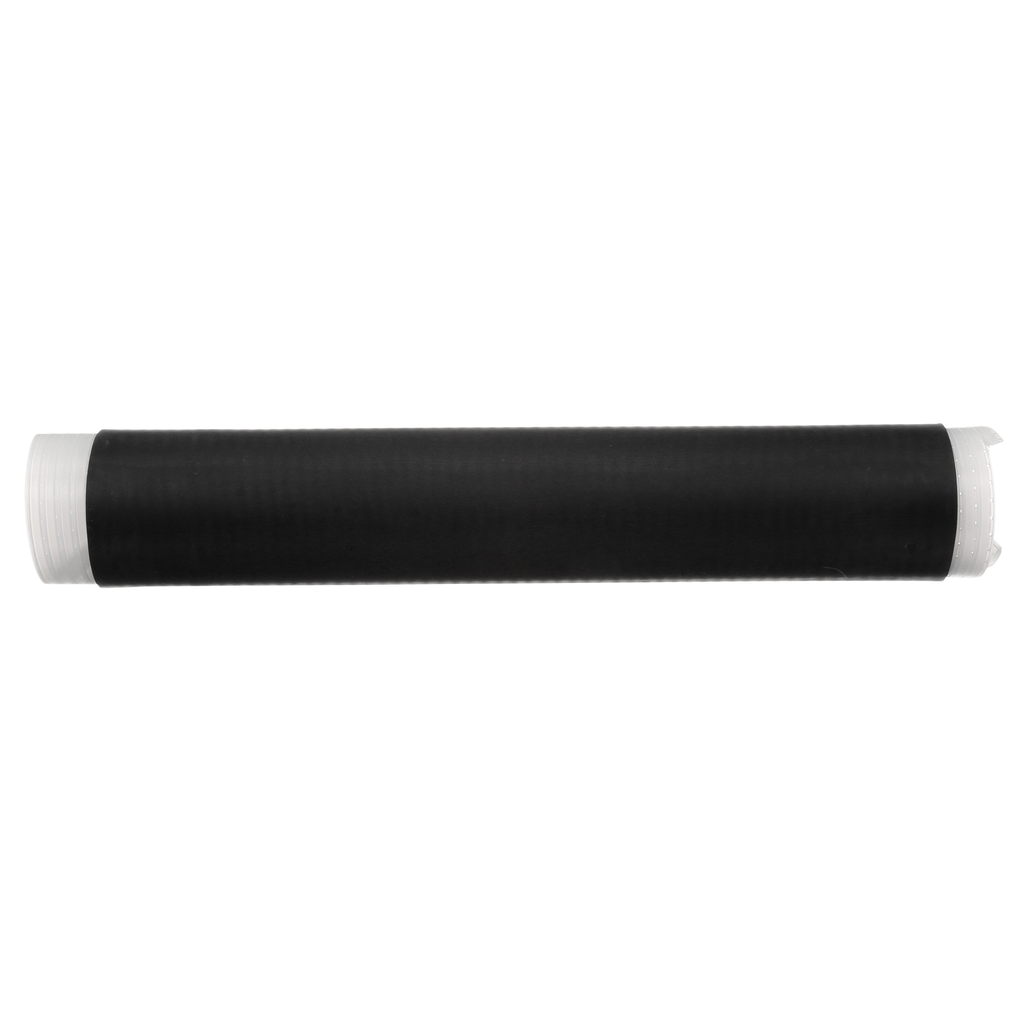

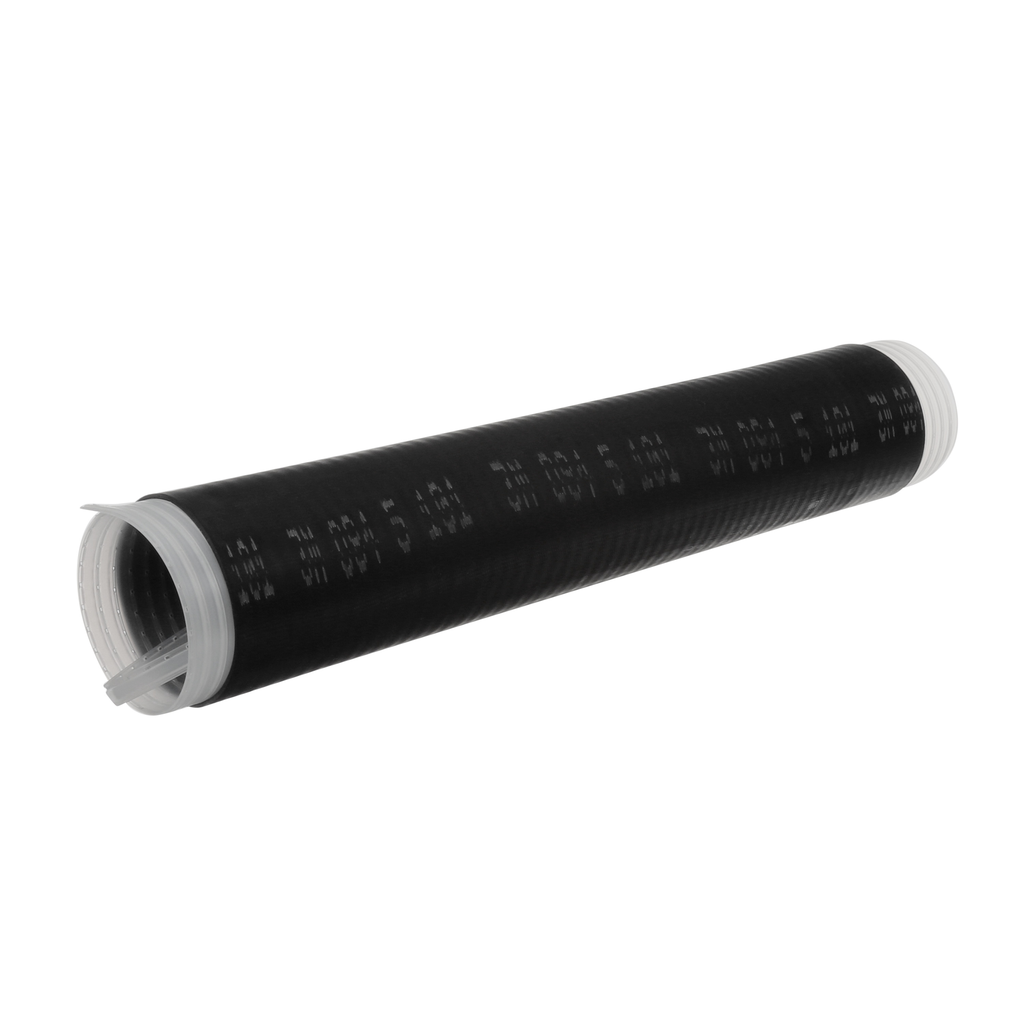

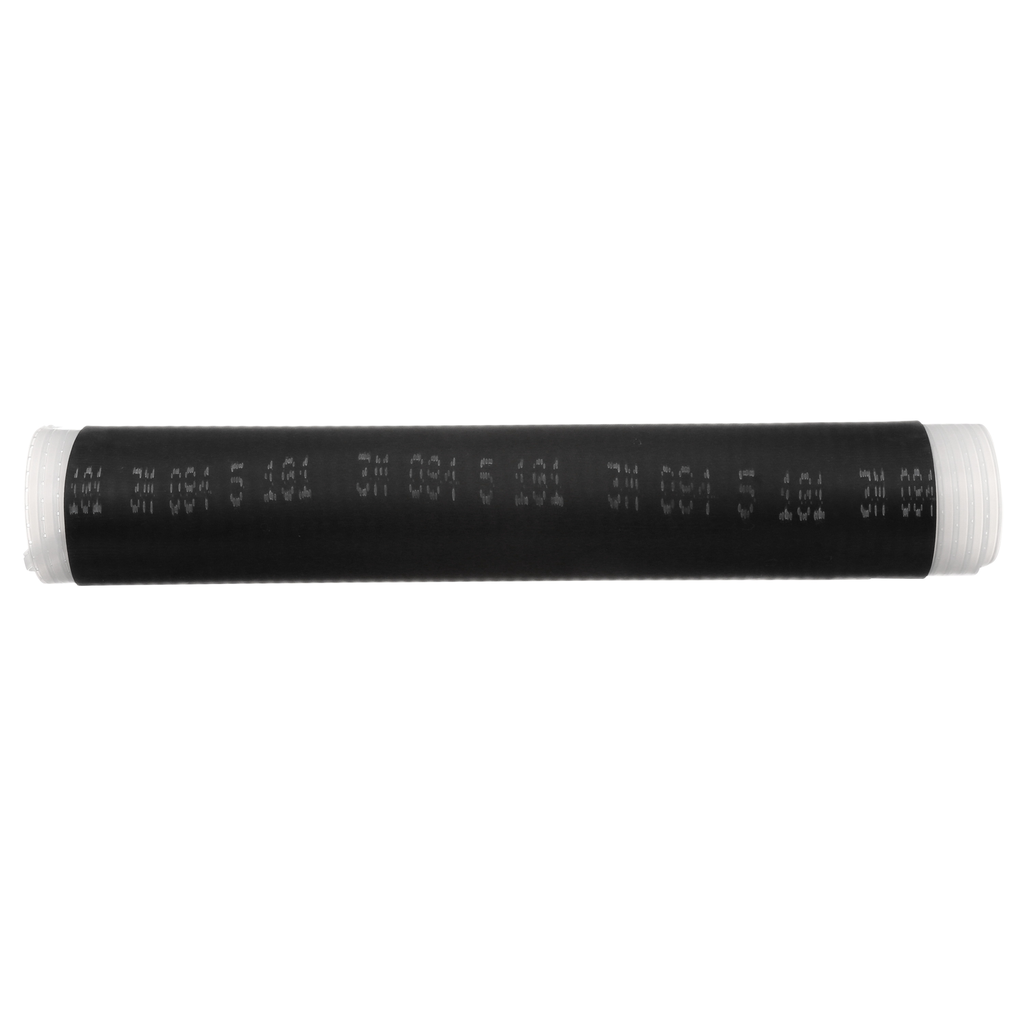

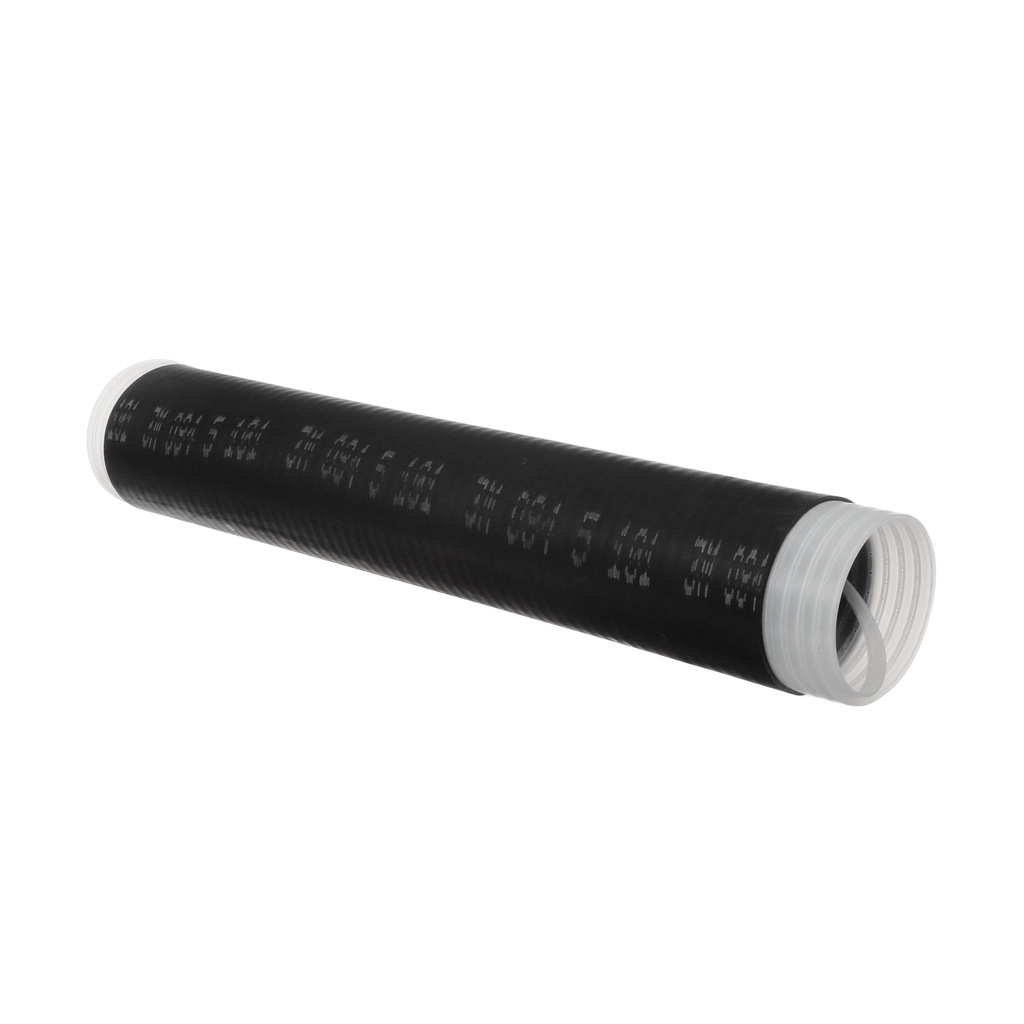

3M 8429-18 Cold Shrink Connector Insulators

Manufacturer: 3M | Catalog # 7000031458 | Cooper Electric Part # 977620
$132.63/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Safety Data Sheet
3M™ Cold Shrink Insulators are open-ended, tubular, EPDM rubber sleeves which are factory expanded and assembled onto a removable core. The core is removed after the tube has been positioned for installation over an inline connection, terminal lug, etc., allowing the tube to shrink and form a water-resistant seal.

Technical Information

Applications
Insulation,Mechanical Protection,Repair
Cable Type
Power Cable
Conductor Size
1000 kcmil
Material
Rubber
Max Operating Temperature
194.0 degrees F
Min Operating Temperature
-40.0 degrees C
Number of Conductors
1
Size
1000 kcmil; 900 kcmil
Splice Type
Cold Shrink
Type
Cold Shrink Splice
Voltage
1 kV

Packaging

Units Per Case
10

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007344629
Color
Black
GTiN
00054007344629
Product Type
Splice
Product UPC
05400734462

Dimensions

Length
18 Inch
Overall Length
18.0 in

Certifications and Compliance

Country of Origin
USA
Features
  • Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
  • Simple installation which requires no tools
  • Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts
  • Made of EPDM rubber which contains no chlorides or sulfur
  • Covers a wide range of cable cross sections
  • Withstands temperatures of -40 to 90 degC (-40 to 194 degF)
