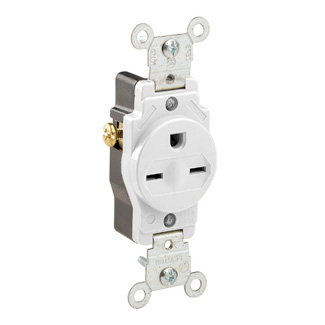

Product image for LEV 5029-W WH REC SGL 2P-3W SPEC GR
Email

LEV 5029-W WH REC SGL 2P-3W SPEC GR

Manufacturer: Leviton Mfg Co | Catalog # 5029-W | Cooper Electric Part # 977081
$6.71/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Friday 7:00am ET
5 available

For Delivery

Order by Friday 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
Product Spec Sheet Safety Data Sheet Product Brochure
Single Receptacle Outlet, Commercial Specification Grade, 15 Amp, 250 Volt, Side Wire, NEMA 6-15R, 2-Pole, 3-Wire - White

Technical Information

Amperage
15 Amp
Applications
Commercial Grade
Body Material
Nylon
Conductor Size
14-10 AWG
Connection Type
Side Wire
Device Type
Single Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Enclosure
WD-6
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Specification
Grounding
Self-Grounding
Horsepower
1-1/2 hp
Material
Nylon
Mounting Type
Wallbox, Flush
NEMA
WD-1
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
46 H x 1.38 W x 16 D IN
Standard
ANSI C-73
TC Connection
Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Termination Type
Side Wire
Type
Single Outlet,Straight Blade
Voltage
250 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Commercial Receptacles

General Product Info

12-Digit UPC
068679123345
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Matte
GTiN
00068679123345
Product UPC
06867912334

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Color Variations
  • Brown
NEMA
  • 6-15R
Features
  • Levitons line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
