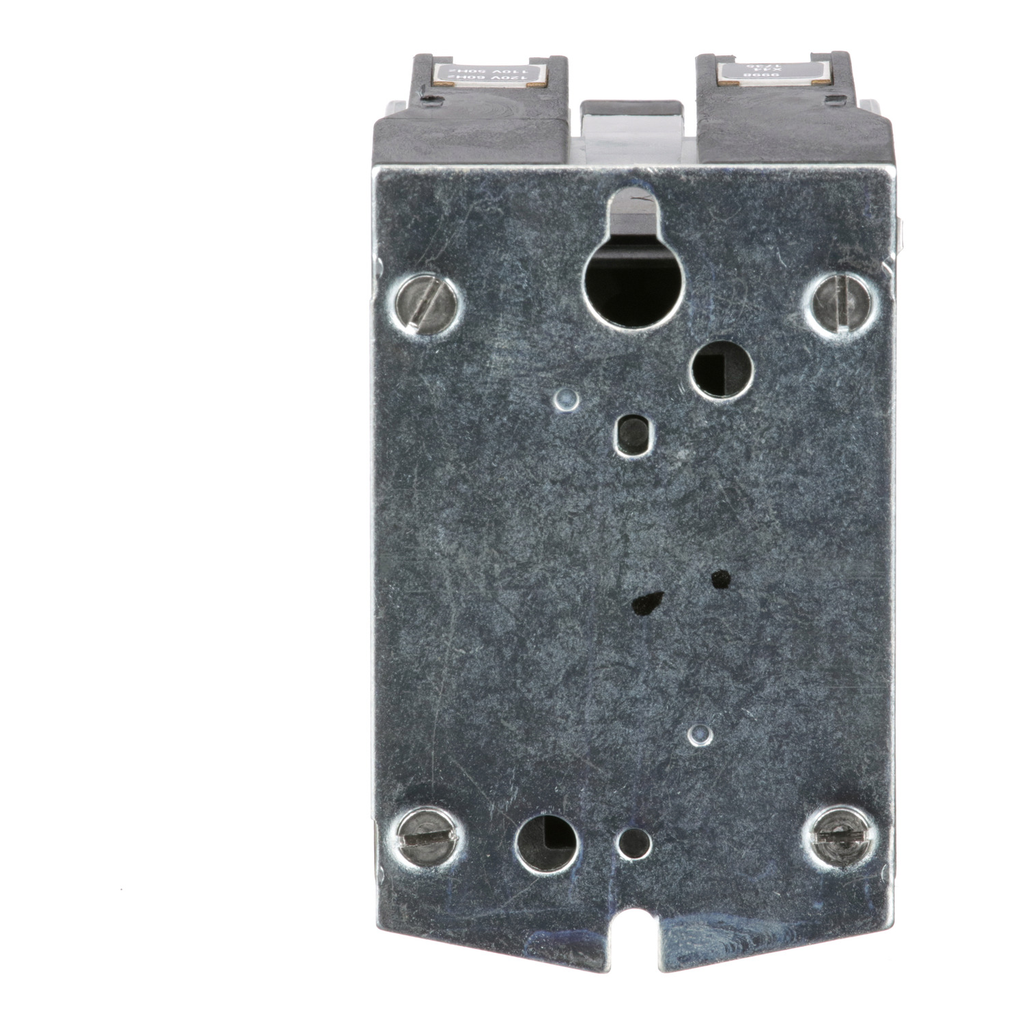

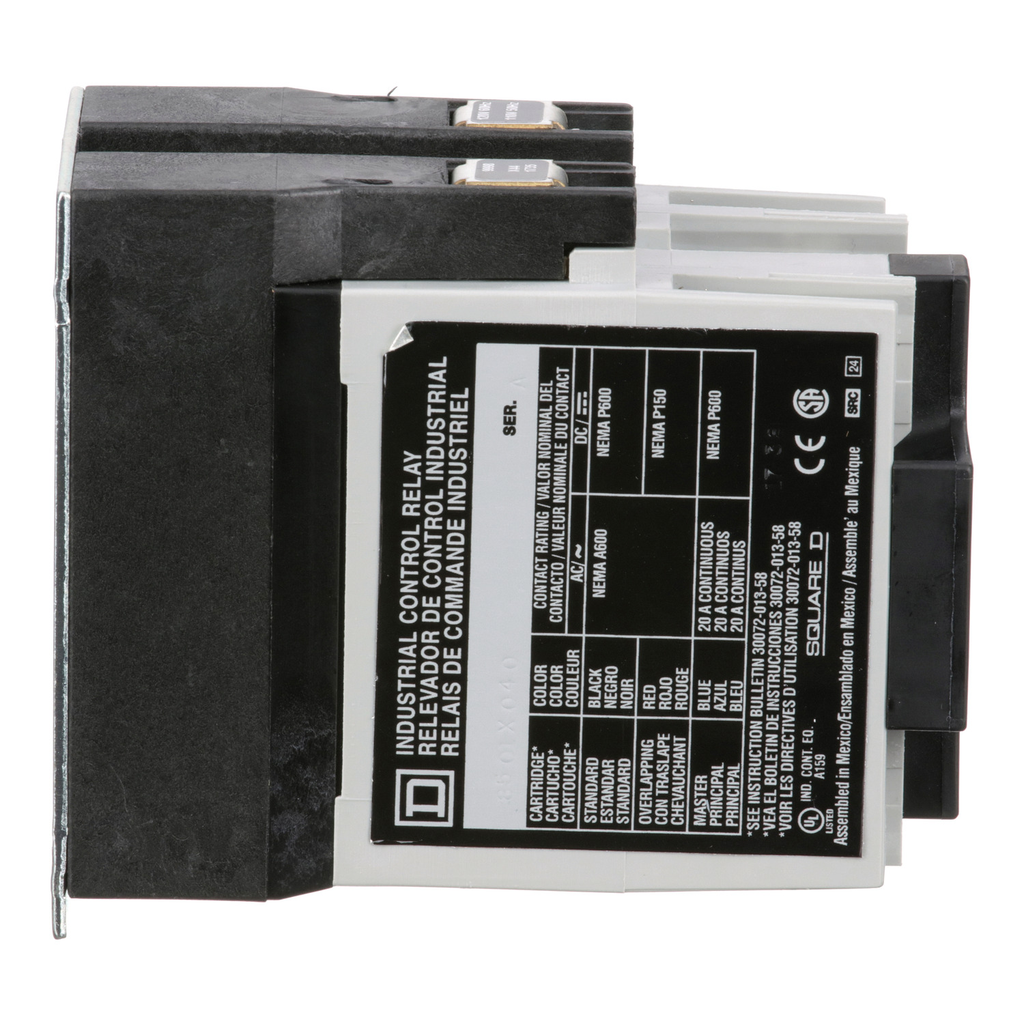

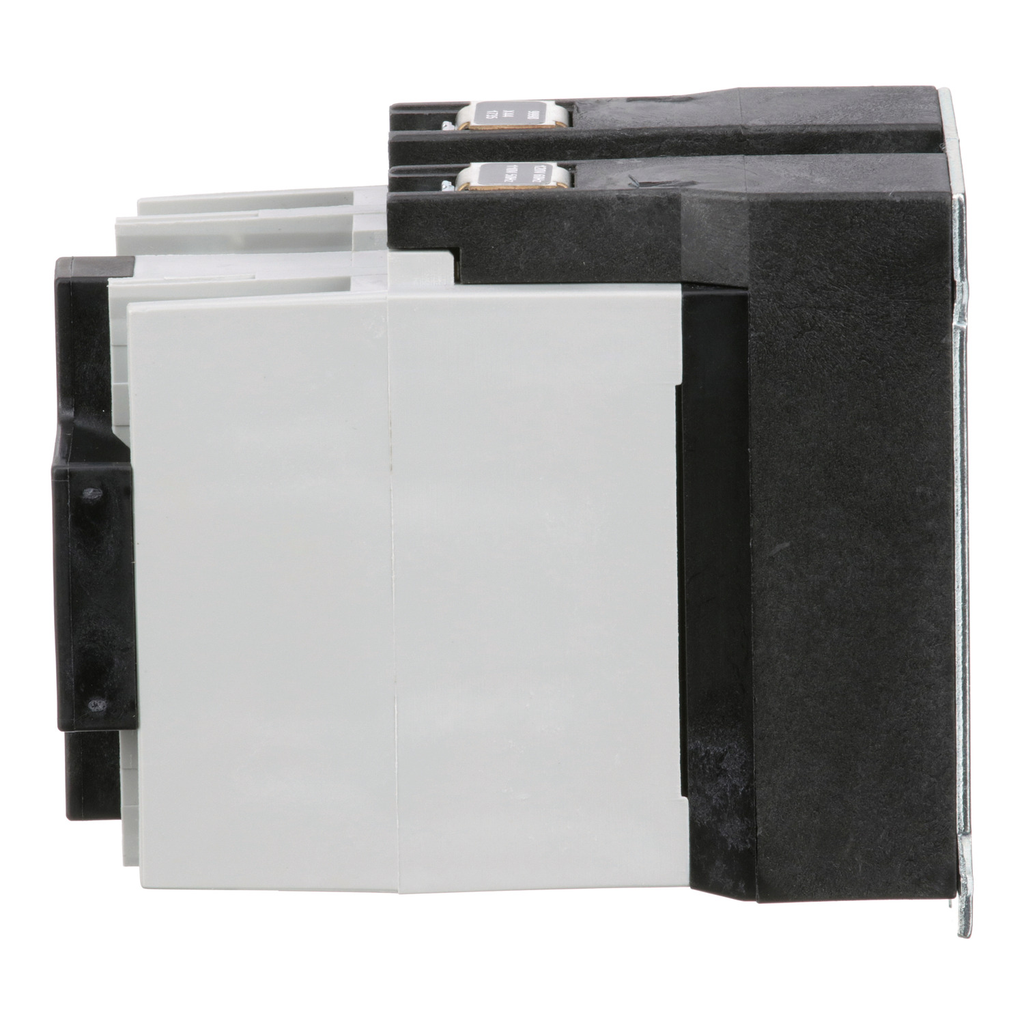

Square D 8501XO40V02 110/120 VAC 10/5 Amp 4-Pole 4NO Panel Mount AC Operated Control Relay

Manufacturer: Square-D / Schneider | Catalog # 8501XO40V02 | Cooper Electric Part # 97383
$227.81/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
3 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has a 10 ampere continuous current rating. It also has an A600 inductive contact rating. It has four 8501XC1 contact cartridges. This relay has four normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The four plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Relay has a 110/120 VAC 50/60 Hz coil. Relay is UL listed and CSA certified.

Technical Information

Amperage
5-10 Amp
Coil Voltage
110 V AC 50 Hz;120 V AC 60 Hz
Contact Configuration
4 NO 4 standard contact cartridges
Contact Rating
10 A AC-5 A DC
Current
10 Amp
Line Rated Current
10 A
Mounting Type
Panel
Operating Temperature
-40-160 Adegrees F
Size
3.95 in
TC Connection
Screw clamp terminals
Type
Relay;Control

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901537052
GTiN
00785901537052
Product UPC
78590153705

Dimensions

Depth
3.95 Inch
Height
3-1/2 Inch
Warranty Length
18 mth
Width
2.23 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA LR60905 Class 3211 03,UL Listed File E78403 CCN NKCR
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 8501XC1
  • 8501XB20
  • 8501XB40
  • 8501XS1
  • 8501XTD1
  • 8501XTE1
  • 8501XLV02
  • 9998X44
