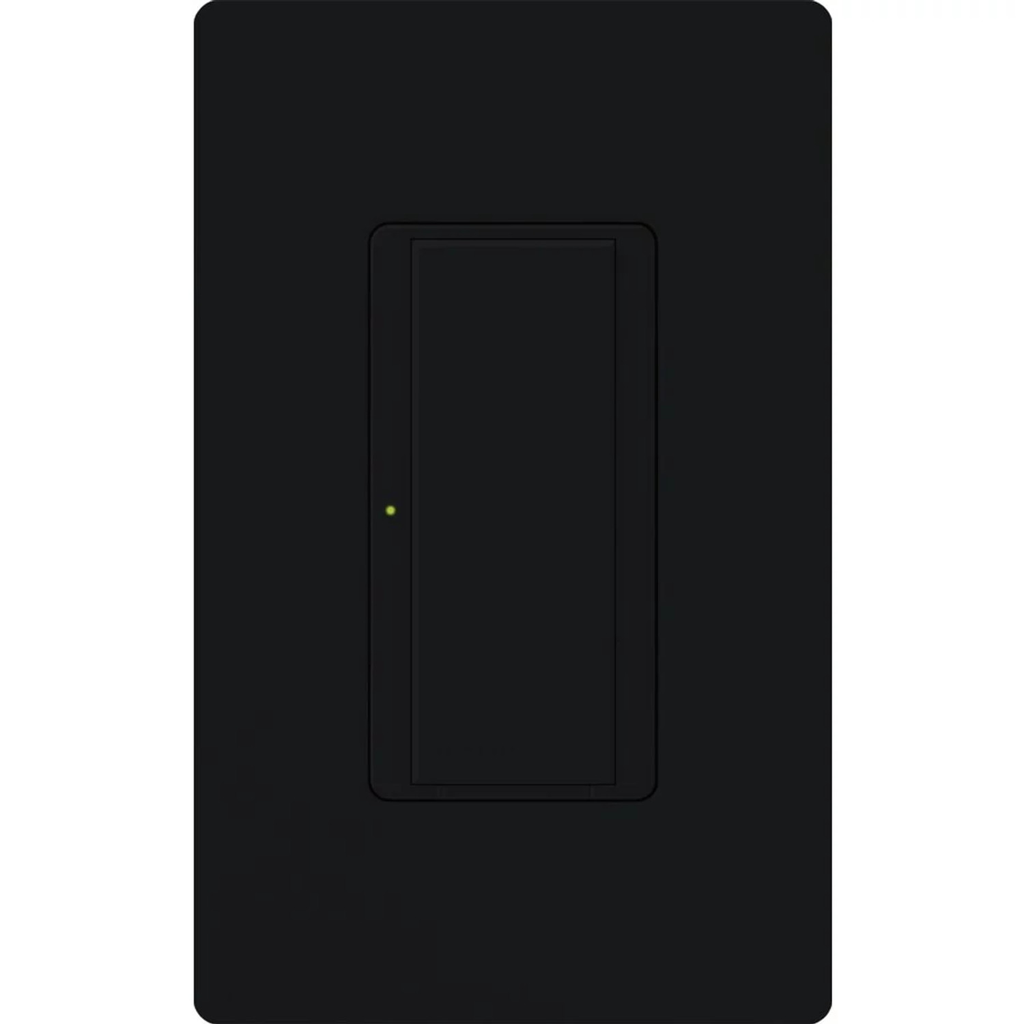

Product image for Lutron MSC-S8AM-MN MAESTRO SC 8 AMP SW
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Lutron MSC-S8AM-MN MAESTRO SC 8 AMP SW

Manufacturer: Lutron | Catalog # MSC-S8AM-MN | Cooper Electric Part # 973344
$66.27/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Rated for 8 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 3 A general-purpose fans. For multi-location switching, use one Maestro multi-location switch with Maestro companion switches. Tap switch on/off

Technical Information

Actuator
Tapswitch
Amperage
8 Amp
Applications
For Lighting Control
Connection Type
Screwed Terminal
Contact Configuration
N-O
Contact Rating
8 A
Control Type
Main Control
Enclosure
Plastic
Enclosure Material
Plastic
Insulation Material
Plastic
Lamp Type
Incandescent
Material
Metal
Mounting Type
Wallbox
Number of Poles
1 Pole
Operating Temperature
32 To 104 degrees F
Power Rating
960 W
Size
75 in
Standard
UL CUL
TC Connection
Screw terminal
Temperature Rating
0 degrees C to 40 degrees C
Type
Multi-Location, NO, TapSwitch
Voltage
120 Volt
Wattage
960 Watt

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
Maestro

General Product Info

12-Digit UPC
027557082938
Color
Midnight
Finish
Satin
GTiN
00027557082938
Product UPC
02755708293

Certifications and Compliance

Country of Origin
USA
Features

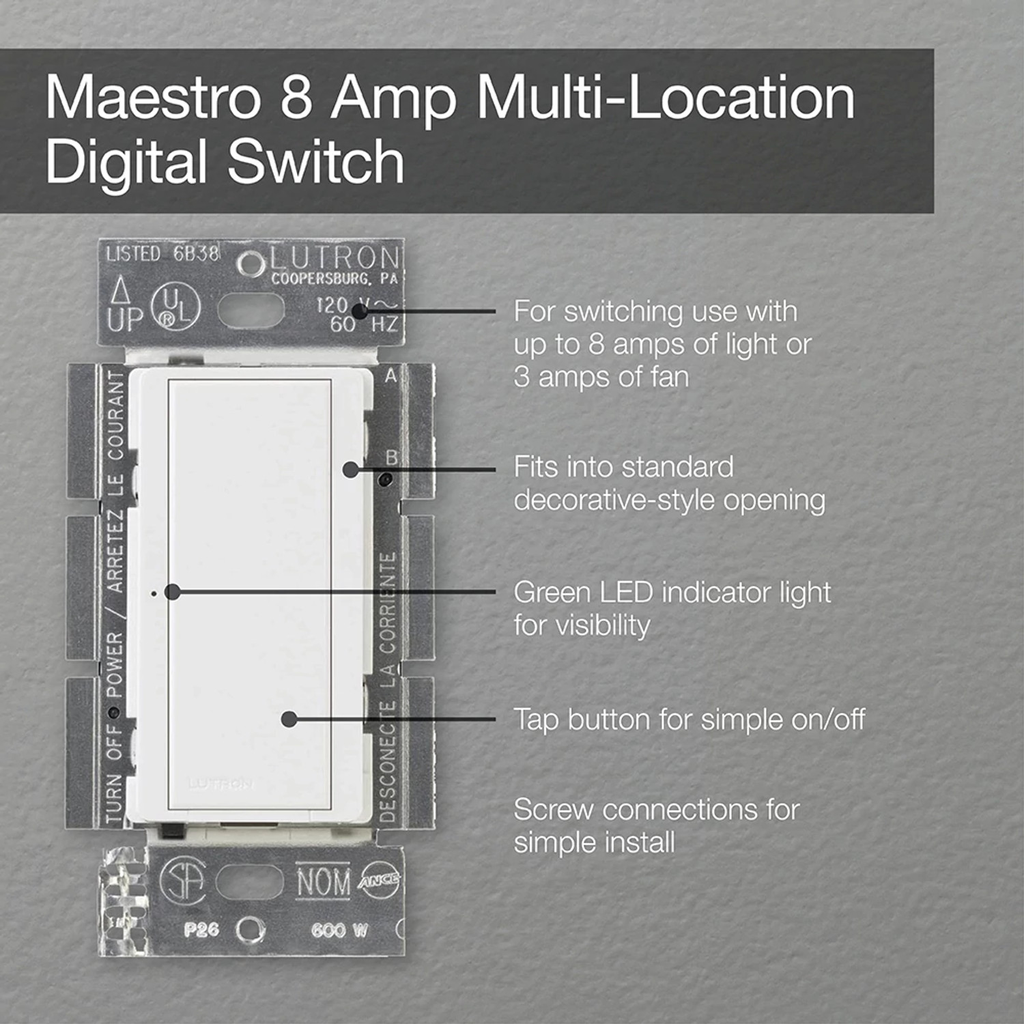

  • Includes (1) Lutron Maestro 8A Electronic Switch; Satin Finish
  • Rated for up to 8A lighting or 3A general purpose fans
  • Neutral required; 120V
  • Screw Terminal or Push-in installation
  • Single Pole/ Multi-location compatible
  • Accessory switch (MA-AS/MSC-AS) required for 3-way/multi-location applications; traditional 3-way switches are not compatible
  • Use up to 9 companion switches (MA-AS/MSC-AS) with one Lutron Maestro 8A switch
  • Companion switches (MA-AS/MSC-AS) sync with programming from main Maestro switch
  • Tap anywhere to toggle lights/fan ON/OFF
  • Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately
  • Rated for 8 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 3 A general purpose fans
  • For multi-location switching, use one Maestro multi-location switch with Maestro companion switches
  • Tap switch on/off
Standards and Certifications
  • UL
  • IEC
  • cUL
