Ocal HUB11/4-G 1-1/4 Inch Ocal Dark Gray Hub Connector

Manufacturer: Ocal / Thomas & Betts | Catalog # HUB11/4-G | Cooper Electric Part # 9725
$177.76/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

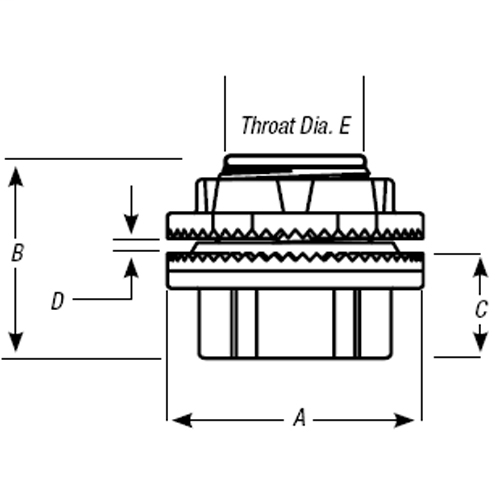

PVC Coated Zinc Hub Connector with Thermoplastic Insulated Throat, Pipe Size 1-1/4 Inch/35 Metric, Overall Diameter 2.38 Inch/60.45 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 1.31 Inch/33.27 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray

Technical Information

Applications
To Positively Bond Conduit to Box or Enclosure
Material
Zinc
Size
1-1/4 in
Temperature Rating
105 degrees C
Trade Size
1-1/4 Inch
Type
Hub Connector

Manufacturer Information

Brand
ABB
Sub Brand
Ocal®

General Product Info

12-Digit UPC
704508388317
Color
Dark Gray
Finish
PVC Coated
GTiN
00704508388317
Product UPC
70450838831
Features
  • Coated with a nominal .002 in. (2 mil) blue urethane on the interior, before PVC Coating is applied.
  • Pressure sealing sleeves to protect the connection.
  • Insulated throat and sharper and deeper teeth.
  • Hexagonal body and locknut design.
  • Innovative sealing ring and groove.
  • A minimum .040 in. (40 mil) PVC Coating is bonded to the exterior.
Notes
  • Dimensional values are of uncoated fittings.
  • Standard color is dark gray. Also available in white and light blue. Custom colors are also available upon request. Please contact Technical Services, 888-862-3289.
