Product image for Blackburn PAA12 4/0-2 ACSR Main Parallel Groove Clamp
Image thumbnail 0
Image thumbnail 1
Email

Blackburn PAA12 4/0-2 ACSR Main Parallel Groove Clamp

Manufacturer: Blackburn / Thomas & Betts | Catalog # PAA12 | Cooper Electric Part # 972328
$31.25/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

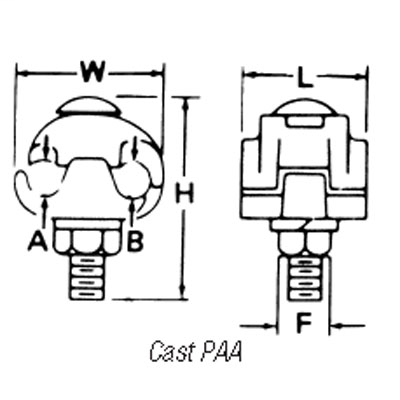

Aluminum Type PAA - One Bolt Aluminum Parallel Groove Clamp for Wire Range Main: 4/0-#2 ASCR 4/0 Stranded-2 Solid AL/CU, Tap: 4/0-2 ASCR 4/0 Stranded-2 Solid ALCU

Technical Information

Applications
For Securing Conductors
Bolt Size
3/4 x 1/2 in
Connection Type
Bolted
Insulated?
No
Material
Aluminum
Mounting Type
None
Number of Conductors
2
Size
Bolt Head 3/4 inch, Bolt Size 1/2 inch, Height 2-1/4 X Length 2 X Width 2 inch
TC Connection
Bolted
Type
Parallel-Groove Clamp

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786330041
GTiN
00783786330041
Product UPC
78378633004
Features
  • Clamps are high-strength, heat treated cast aluminum alloy. Galvanized-steel carriage bolt, nut and lockwasher standard. Order prefilled with oxide inhibitor for use on copper to aluminum.
Notes
  • One-bolt clamp.
  • To order with hex head bolts, add suffix -3.
