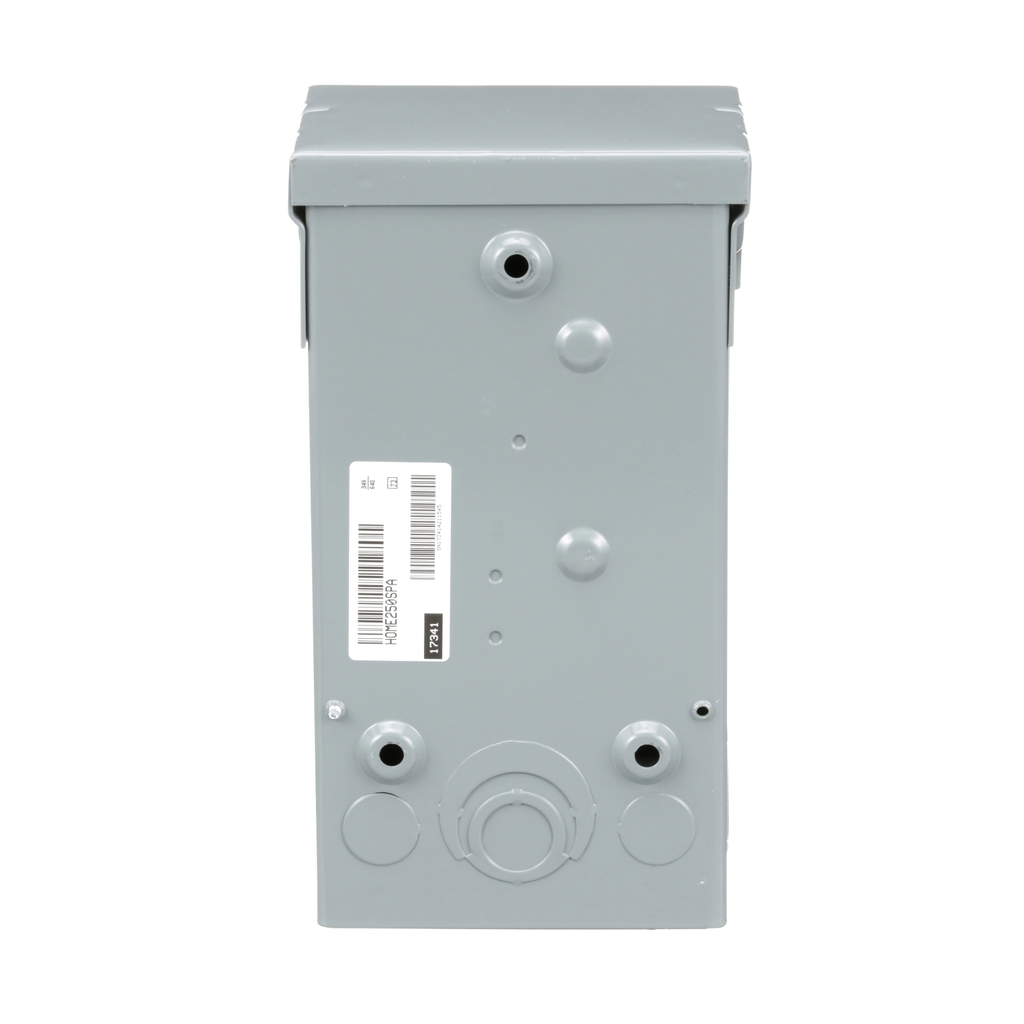

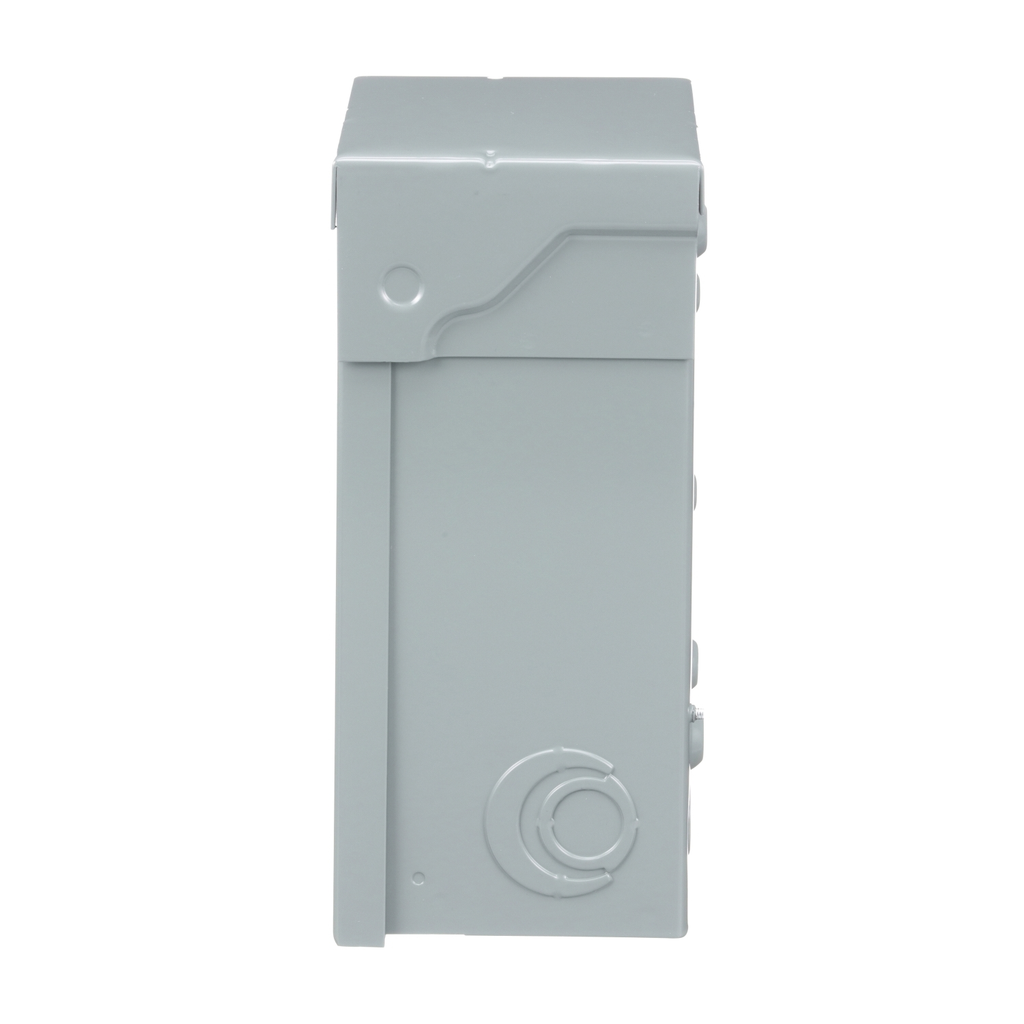

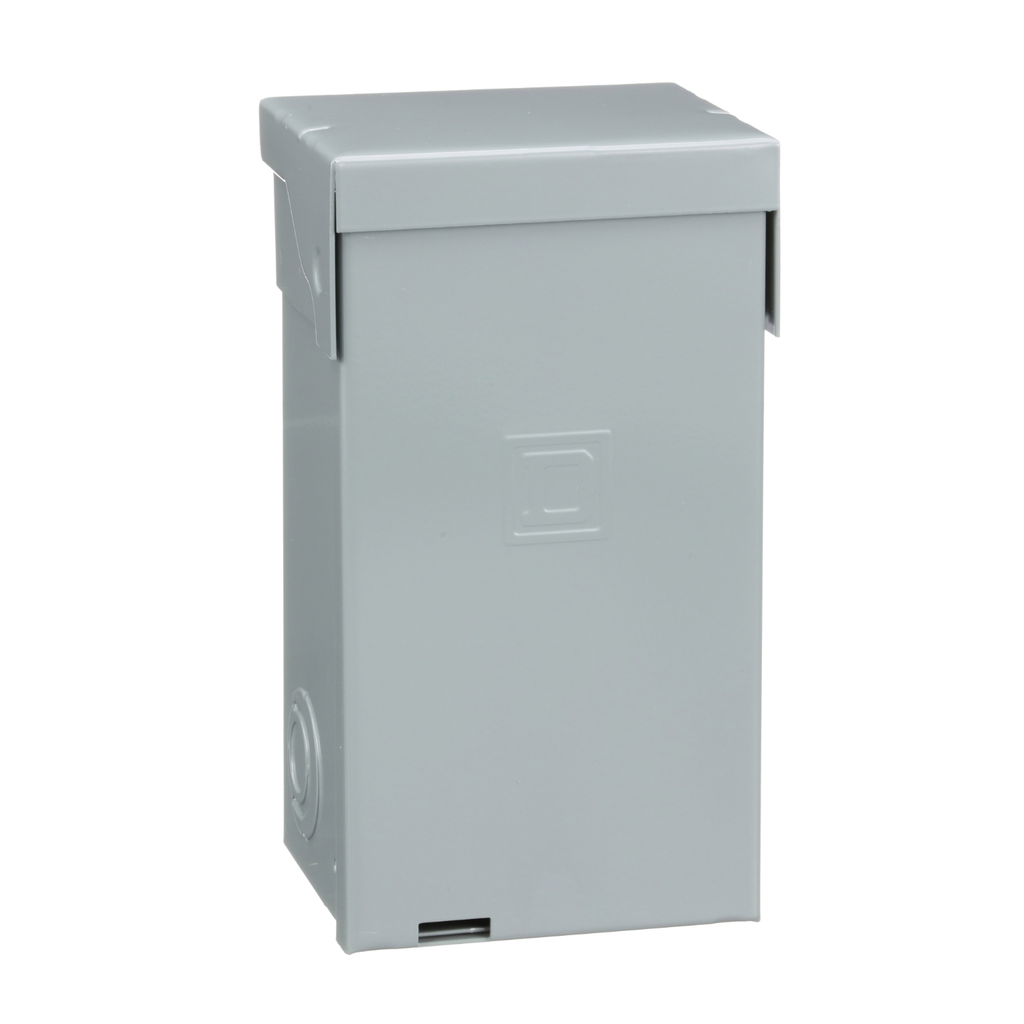

Square D HOME250SPA 2-Pole 50 Amp 120/240 VAC NEMA 3R Enclosed Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # HOME250SPA | Cooper Electric Part # 97225
$473.00/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Pick Up

at Ocean Opens Monday 7:00am ET
16 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole GFCI circuit breaker that is rated at 50A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 2 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 8 AWG to 6 AWG copper or aluminum wire. This Homeline load center has a height of 9.37 inches, a width of 4.88 inches, and depth of 4.01 inches. Homeline load centers are UL Listed and CSA certified.

Technical Information

Amperage
50 Amp
Cable Size
AWG 8...AWG 6 ALUMINIUM/COPPER
Circuit Breaker Type
GFCI
Conductor Size
8-6 AWG
Cover Type
Surface Cover
Current
50 Amp
Enclosure
3R
Enclosure Material
Steel
Enclosure Rating
3R
Interrupt Rating
10 kAIC
Line Rated Current
50 A
NEMA Size
3R
Number of Circuits
4
Number of Phases
1 Phase
Number of Spaces
2
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
10 kA
Surface Finish
Baked enamel Gray
Type
SPA PANEL
Voltage
120/240 Volt
Wire Size
AWG 8...AWG 6 aluminium/copper

Manufacturer Information

Brand
Square D
Sub Brand
HOMELINE

General Product Info

12-Digit UPC
785901230540
Finish
Gray
GTiN
00785901230540
Product UPC
78590123054

Dimensions

Depth
102 mm
Height
238 mm
Warranty Length
18 mth
Width
124 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • HOM250GFI
