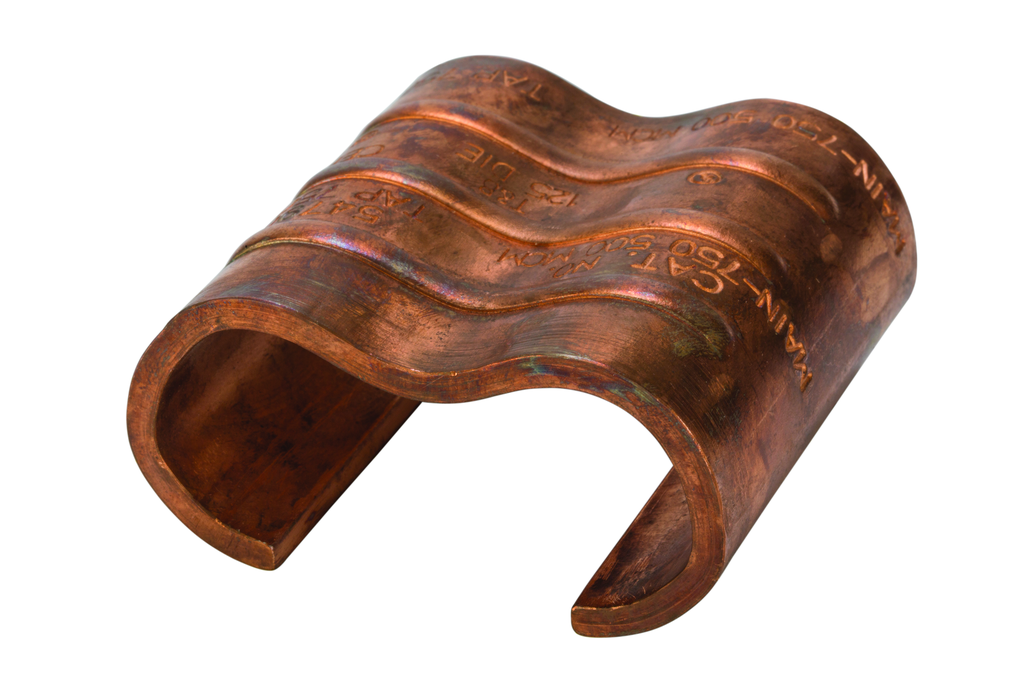

Product image for NSI CTH-117 Copper C Tap 750-500 Ma
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

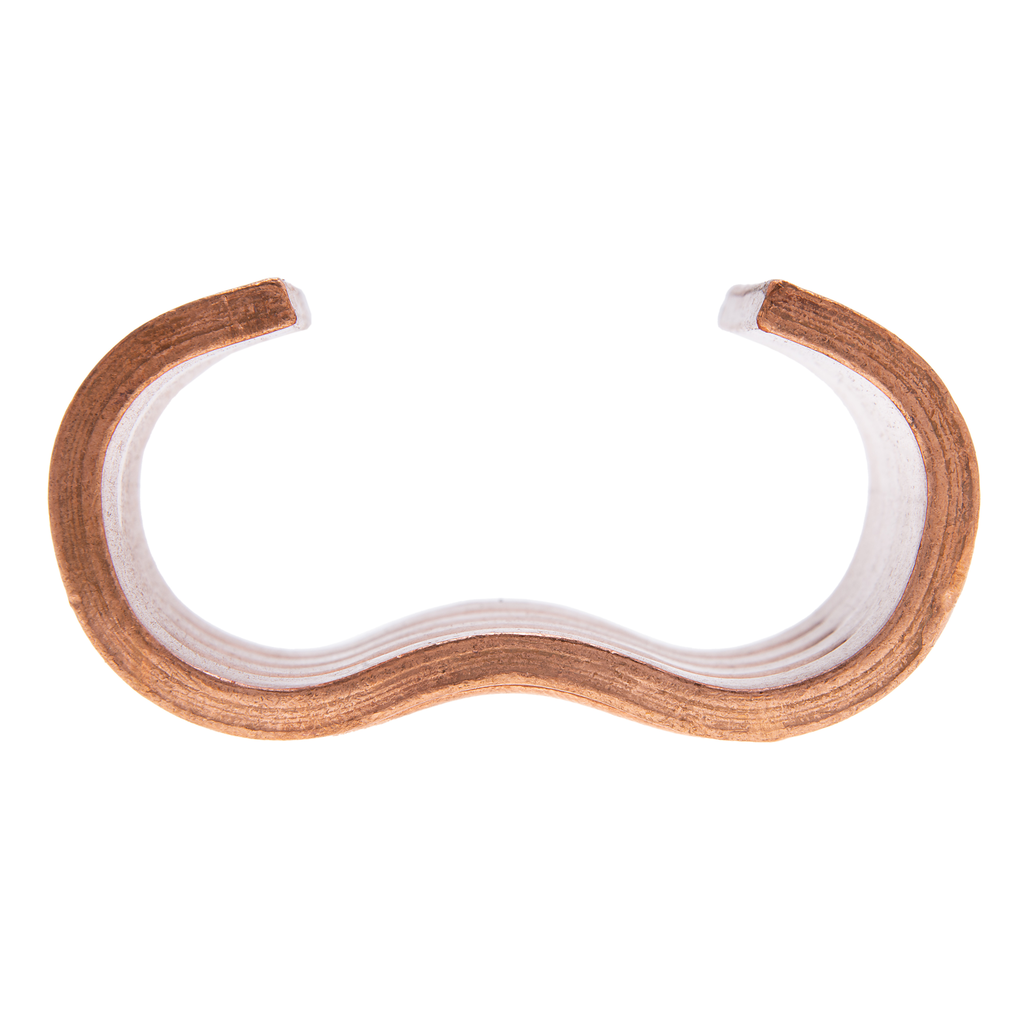

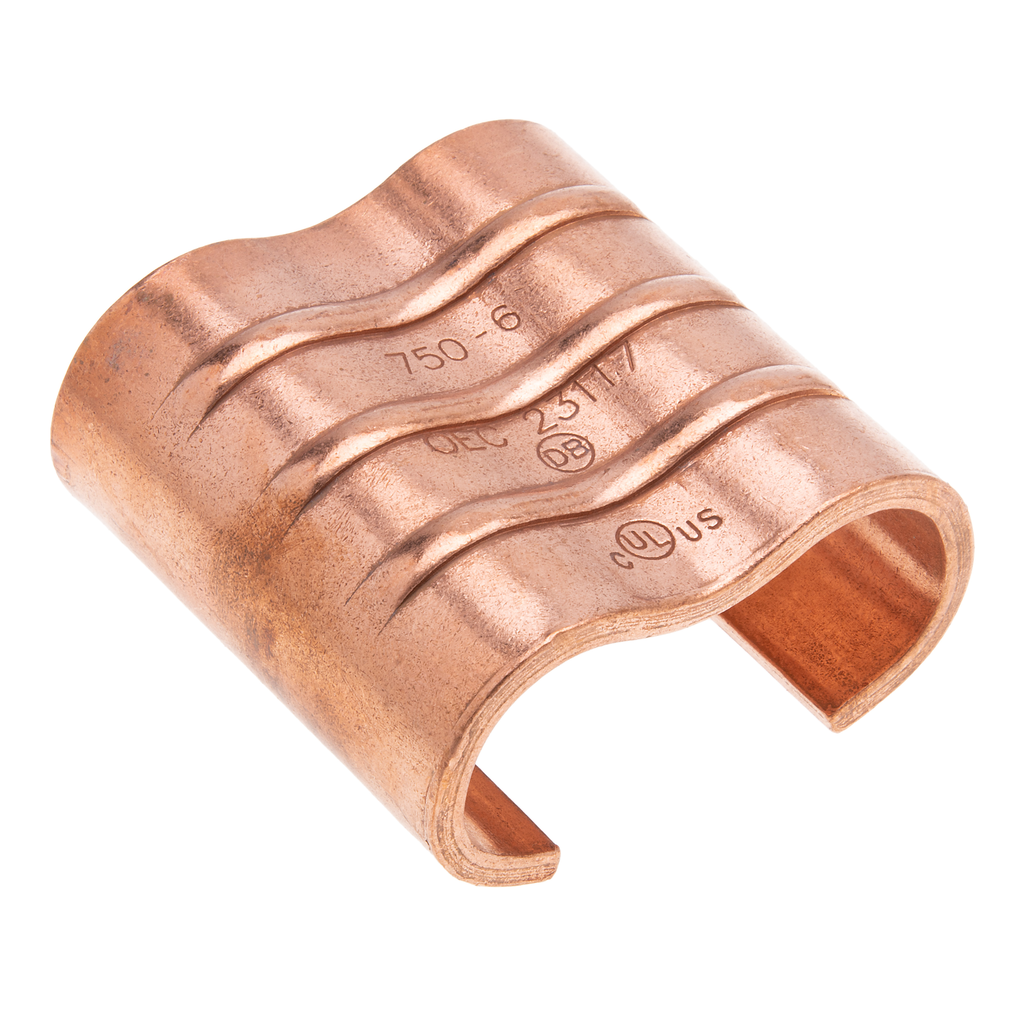

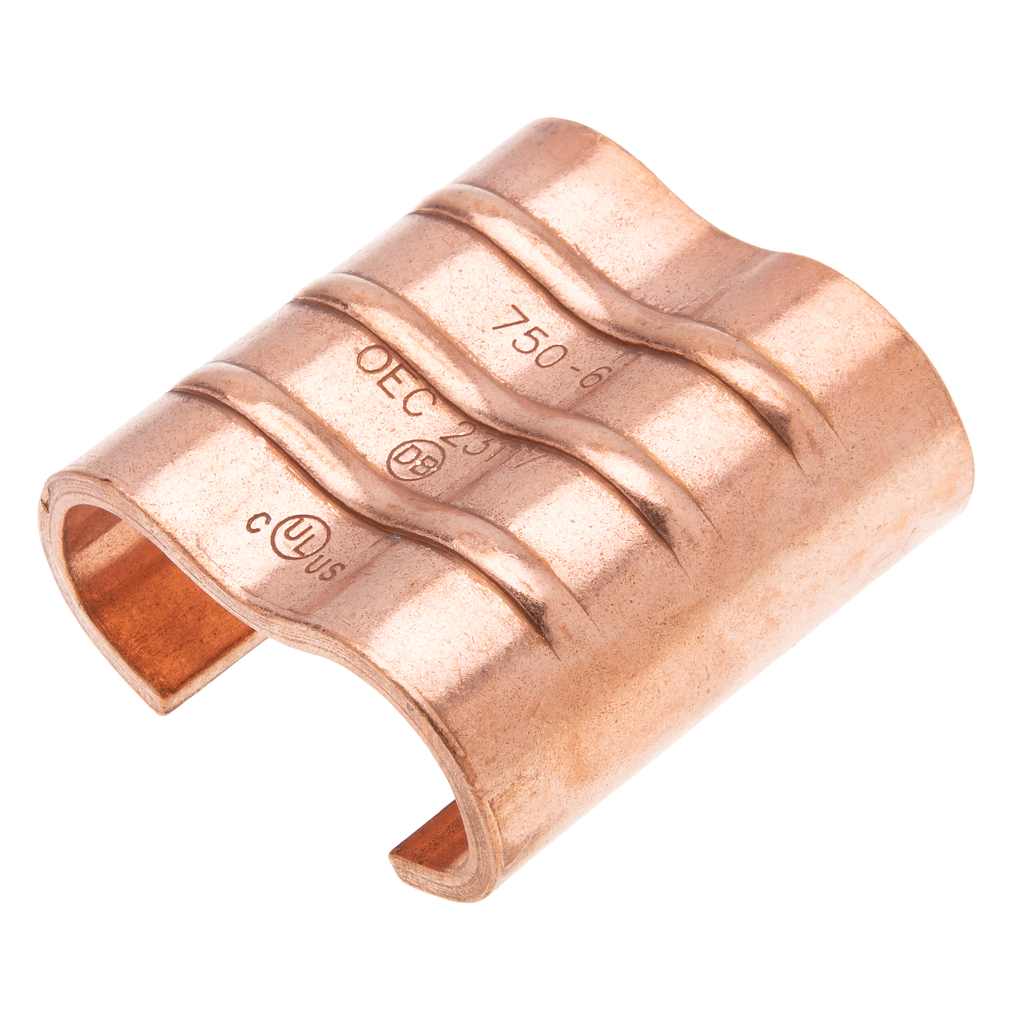

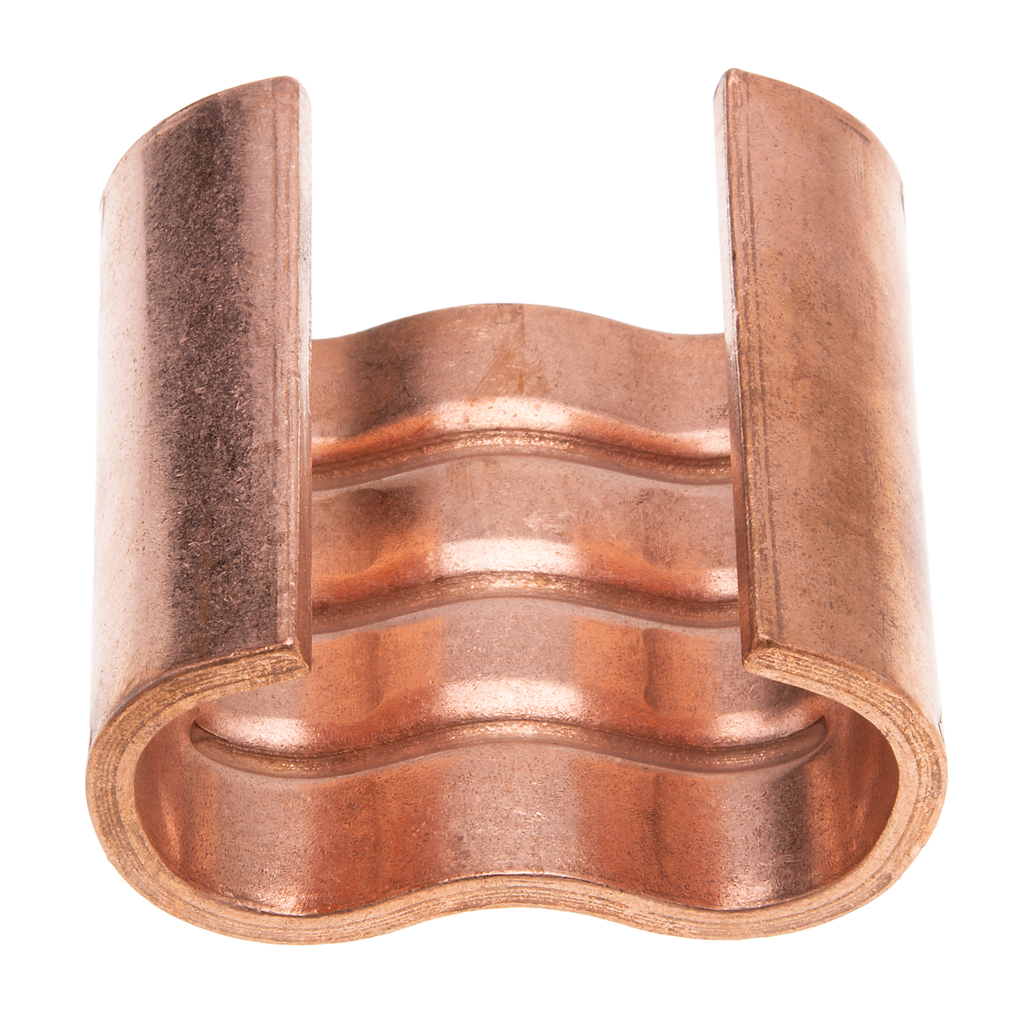

NSI CTH-117 Copper C Tap 750-500 Ma

Manufacturer: NSi | Catalog # CTH-117 | Cooper Electric Part # 972038
$28,620.55/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Heavy Duty Copper C Tap Grounding Connector for 750 to 500 MCM APPLICATIONS: Copper "C" Taps ensure positive, all-around compression with low-resistance and high pull-out values. Made of high conductivity copper, they satisfy the requirements of NEC250-81 and 250-91 for connecting to the grounding electrode system. Rated 600 Volts.

Technical Information

Applications
Terminate, Splice, Tap Power Connectors
Conductor Size
750 kcmil
Material
Copper
Max Temperature
194 degrees F
Size
750 MCM-6 AWG
Standard
UL486
Tap Size
6 AWG
Temperature Rating
90 degrees C
Type
C-Taps
Voltage
600 Volt

Manufacturer Information

Brand
NSI Industries
Sub Brand
Copper Compression

General Product Info

12-Digit UPC
662381098160
Color
Copper
Environmental Conditions
90 degrees C
Finish
Copper
GTiN
00662381098160
Product UPC
66238109816

Dimensions

Length
69.76 mm
Warranty Length
1 yr
Width
34 mm

Certifications and Compliance

Country of Origin
Mexico
Features
  • These taps ensure positive, all-around compression with low resistance and high pull-out values
  • Made of high conductivity copper, they satisfy the requirements of NEC250 for connecting to the grounding electrode system
  • Rated for 600V applications
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486A, UL 467
Additional Notes
  • FOR TOOL/DIE CRIMPING INFORMATION, PLEASE SEE TABLE ON PAGE 88
