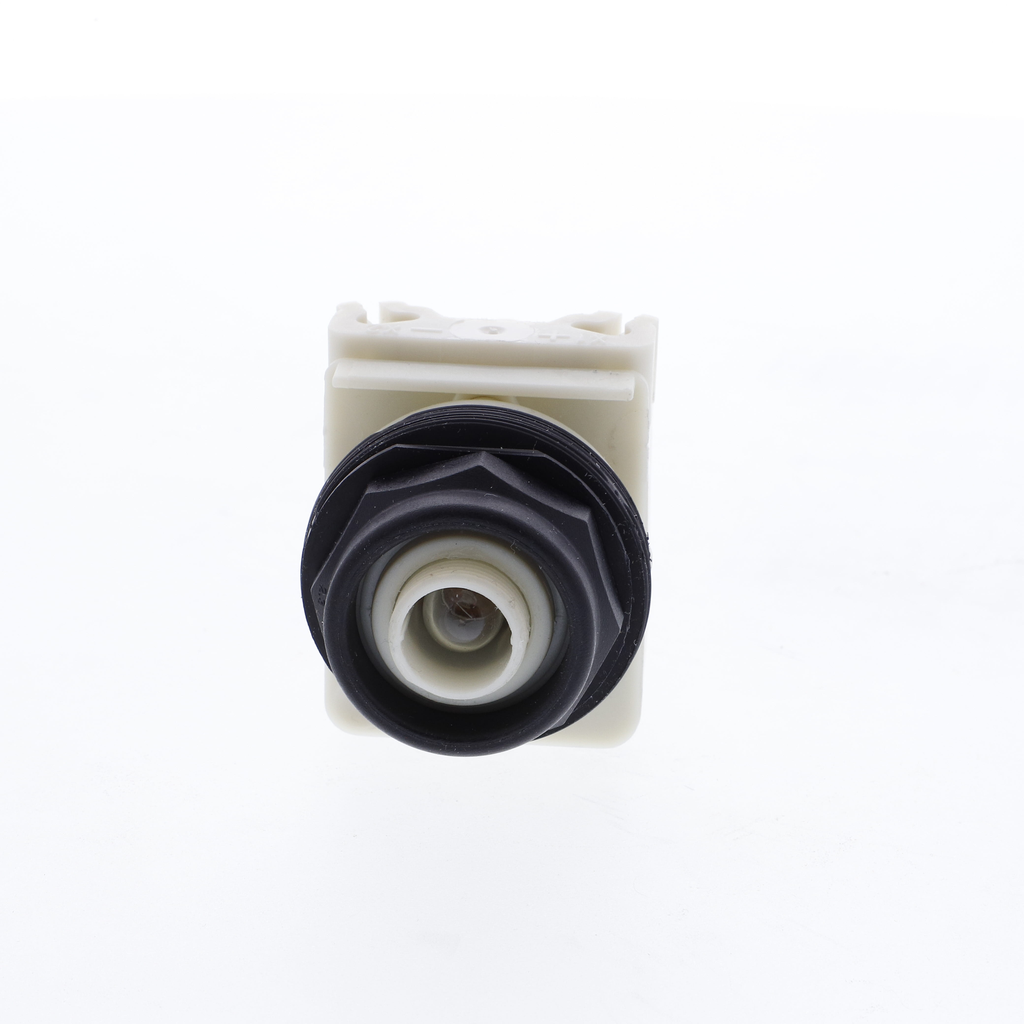

Square D 9001SKR9P1 30 mm Plastic Bezel 2-Position Mushroom Illuminated Push Button Operator

Manufacturer: Square-D / Schneider | Catalog # 9001SKR9P1 | Cooper Electric Part # 970659
$256.88 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Brochure Product Catalog Page Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony 9001SK, illuminated pushbutton head, with an incandescent BA 9s bulb, is supplied with 110-120V. It has 2 positions and operates with a push-pull mechanism. This illuminated pushbutton provides an ergonomic and visual interface for your machines. It is easily installed into standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its IP66 rating, making it ideal for operation in harsh environments Harmony 9001SK is a range of heavy-duty plastic pushbuttons, selector switches, pilot lights, and specialty operators. The Harmony 9001SK units, with a double insulated bezel, are designed for applications requiring high resistance to corrosion.

Technical Information

Action
Standard
Actuator
ILLUMINATED
Bezel Material
Plastic
Contact Configuration
Without contact block
Contact Rating
AC15 - DC13
Enclosure
NEMA 1/2/3/3R/4/4X/6/12/13
Light Source
Incandescent Bulb
Size
30 mm
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,JIS C 4520,JIS C 852,UL 508
TC Connection
SCREW CLAMP
Type
Push-button

Manufacturer Information

Brand
Schneider Electric
Sub Brand
9001SK

General Product Info

12-Digit UPC
785901043041
Color
Without Mushroom
Environmental Conditions
WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
00785901043041
Product UPC
78590104304

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
Features
  • Compliant with IEC, UL, CSA, EN, and NOM standards, CE marking
  • American Bureau of Shipping Approved for Marine Applications
  • -25°C to + 70°C operating temperature range
  • Class I Div.1 (gas) and Class II Div. 1 (dust) with reed contact blocks
