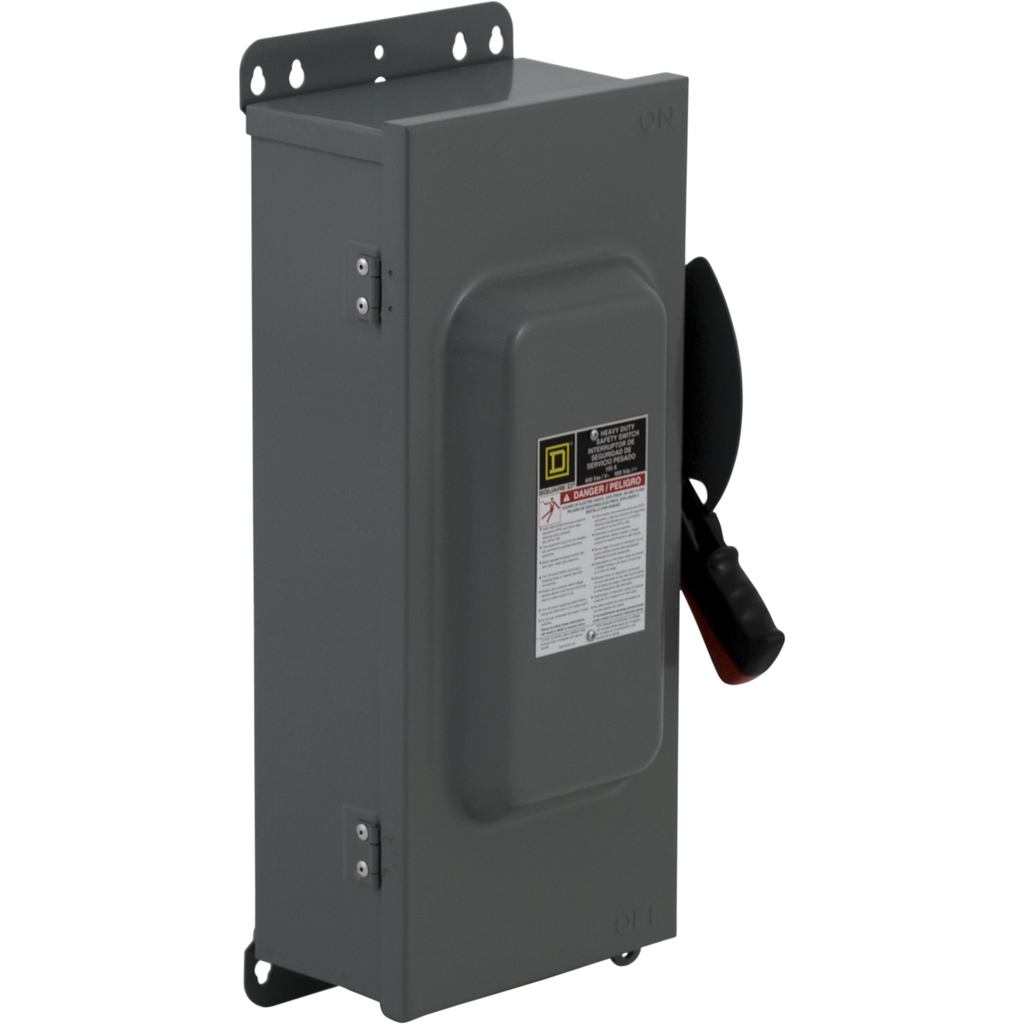

Product image for Square D H323A 240 VAC 100 Amp 3-Pole Class R Fusible Heavy Duty Safety Switch
Image thumbnail 0
Image thumbnail 1
Email

Square D H323A 240 VAC 100 Amp 3-Pole Class R Fusible Heavy Duty Safety Switch

Manufacturer: Square-D / Schneider | Catalog # H323A | Cooper Electric Part # 969766
$1,145.52/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 Product Brochure
Safety switch, heavy duty, fusible, 100A, 3 pole, 30hp, 240VAC/250VDC, NEMA 12K

Technical Information

Action
SINGLE THROW
Amperage
100 Amp
Applications
HEAVY DUTY
Conductor Size
12-1/0 AWG (AL)/14-1/0 AWG (CU)
Current
100 Amp
Disconnect Type
Fusible disconnect
Duty Rating
Heavy duty
Enclosure
12K
Enclosure Material
Stainless Steel
Enclosure Rating
12K
Fuse Type
H Or K,R Or J
Line Rated Current
100 A
Material
Steel
Mounting Type
Surface
NEMA Size
12K
Net Weight
9 kg
Number of Phases
3 Phase
Number of Poles
3 Pole
Short Circuit Current
10 kA
Size
20.5 IN,7 IN,9 IN
TC Connection
AWG 12...AWG 1/0 ALUMINIUM-AWG 14...AWG 1/0 COPPER,LUGS
Type
HEAVY DUTY SAFETY SWITCH
Voltage
240 Volt
Wire Size
AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper

Manufacturer Information

Brand
Square D
Sub Brand
HEAVY DUTY

General Product Info

12-Digit UPC
785901480365
GTiN
00785901480365
Product UPC
78590148036
Weight
19.84 lb

Dimensions

Depth
7 Inch
Height
20-1/2 Inch
Warranty Length
18 mth
Width
9 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E2875
Country of Origin
USA
